Aziz Abdul, Mehboob Syed Saqib, Tayyab Aisha, Khan Diyar, Hayyat Khizar, Ali Afsar, Latif Qureshi Qadir Bux Imran
Department of Civil Engineering, University of Engineering and Technology, Taxila, Pakistan.
Department of Industrial Engineering, University of Engineering and Technology, Taxila, Pakistan.
Sci Rep. 2024 May 29;14(1):12326. doi: 10.1038/s41598-024-62499-w.

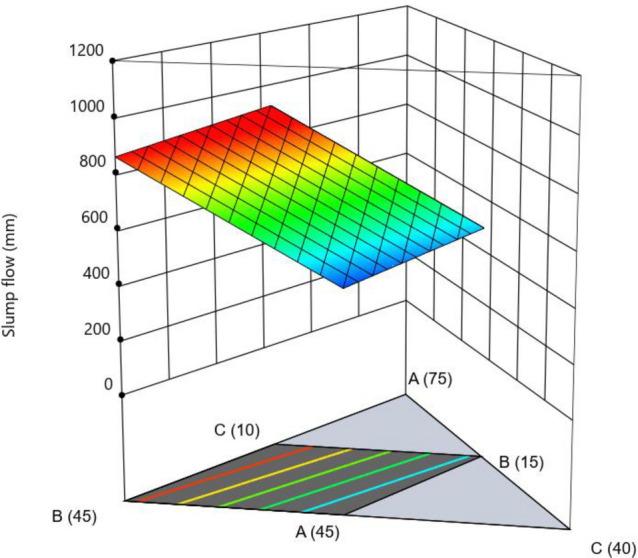

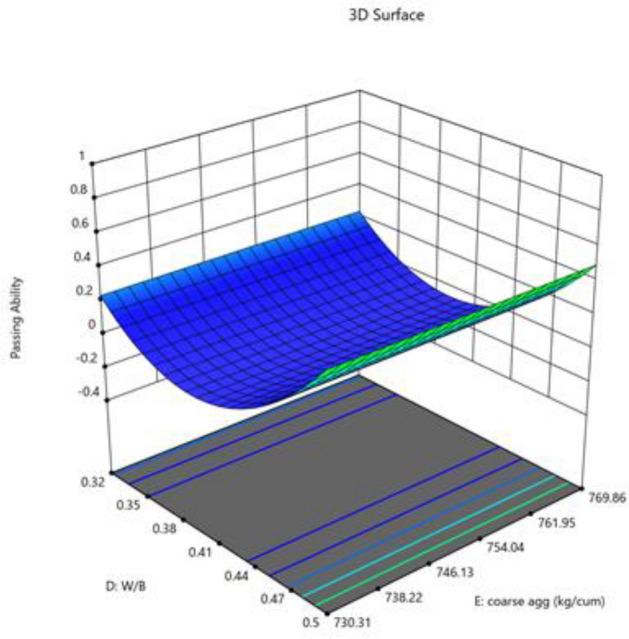

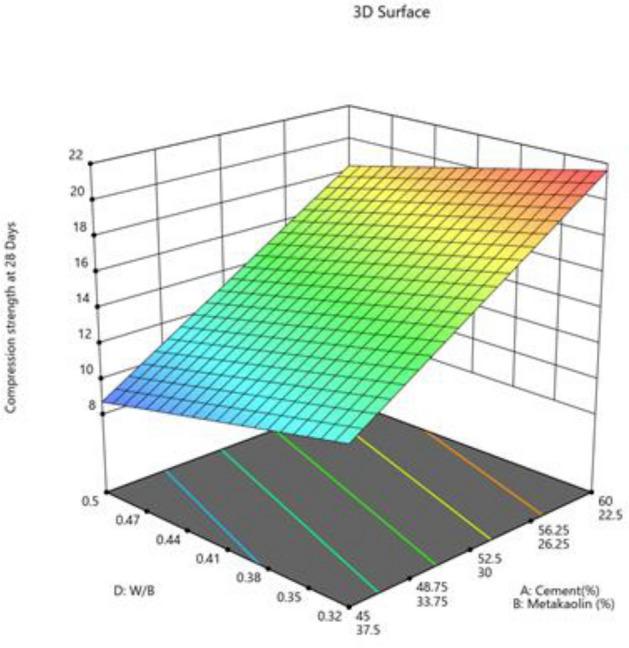

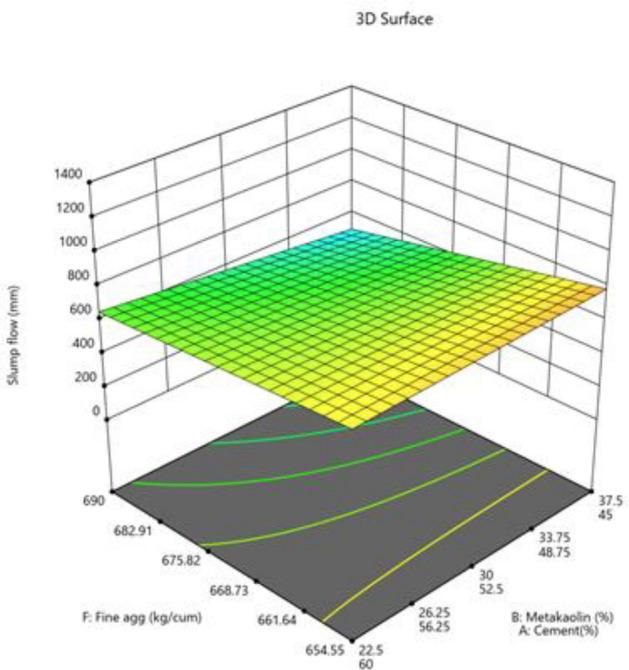

Within concrete engineering, the uptake of self-compacting concrete (SCC) represents a notable trend, delivering improved workability and placement efficiency. However, challenges persist, notably in achieving optimal performance while mitigating environmental impacts, particularly in cement consumption. However, simply reducing the cement content in the mix design can directly compromise the structural-concrete requirements. Towards these challenges, global trends emphasize the utilization of appropriate waste materials in blended concrete. This study explored a promising strategy by integrating supplementary cementitious materials (SCMs) to contribute to the United Nations' Sustainable Development Goals (SDGs) in addition to the engineering contributions. It suggests an optimal combination of Metakaolin (MK) and Limestone Powder (LP) to partially substitute cement. The research methodology employs the response surface method (RSM) to systematically explore the ideal ingredient ratios. Through a comprehensive analysis of orthogonal array of 16 mixes, encompassing both mixture and process variables, this study aims to explain the effects of MK and LP addition on the rheological and mechanical properties of SCC with varying cement replacement levels. In terms of mixture constituents, the total composition of cement, MK, and LP was fixed at 100%, while coarse aggregate (CA), fine aggregate (FA), and the water-to-binder ratio were held as process variables. In order to assess the rheological properties of the mix-design, various tests including slump flow, L-box, and sieve segregation were conducted. Additionally, to evaluate mechanical strength, samples were tested for compressive strength at both 7 and 28 days. Findings from the experiments reveal higher concentrations of MK result in reduced workability and hardened properties. Through RSM-based designed experimentation covering both rheological and mechanical aspects, it is observed that the optimal cement replacement level lies between 40 and 55%. The findings of this study contribute to the advancement of sustainable and structurally robust concrete practices, offering insights into the optimal utilization of SCMs to meet both engineering requirements and environmental sustainability goals.
在混凝土工程领域,自密实混凝土(SCC)的应用呈现出显著趋势,它能提高工作性和浇筑效率。然而,挑战依然存在,尤其是在实现最佳性能的同时减轻环境影响,特别是在水泥消耗方面。然而,单纯在配合比设计中降低水泥含量会直接影响结构混凝土的性能要求。面对这些挑战,全球趋势强调在混合混凝土中使用合适的废料。本研究探索了一种有前景的策略,即除了考虑工程因素外,还通过整合辅助胶凝材料(SCMs)来推动联合国可持续发展目标(SDGs)的实现。研究提出了偏高岭土(MK)和石灰石粉(LP)的最佳组合,以部分替代水泥。研究方法采用响应面法(RSM)系统地探索理想的成分比例。通过对16种混合料的正交试验进行全面分析,涵盖混合料和工艺变量,本研究旨在解释不同水泥替代水平下,MK和LP的添加对自密实混凝土流变性能和力学性能的影响。在混合料成分方面,水泥、MK和LP的总成分固定为100%,而粗骨料(CA)、细骨料(FA)和水胶比作为工艺变量。为了评估混合料设计的流变性能,进行了包括坍落扩展度、L型箱和筛析离析等各种试验。此外,为了评估力学强度,对样品在7天和28天进行了抗压强度测试。实验结果表明,较高浓度的MK会导致工作性和硬化性能降低。通过基于RSM的涵盖流变和力学方面的设计试验观察到,最佳水泥替代水平在40%至55%之间。本研究结果有助于推动可持续且结构坚固的混凝土实践发展,为最佳利用辅助胶凝材料以满足工程要求和环境可持续性目标提供了见解。
