Department of Medical Ultrasound, Peking Union Medical College Hospital, Chinese Academy of Medical Science and Peking Union Medical College, Beijing, 100730, China.
Department of the Neurosurgery Department, Peking Union Medical College Hospital, Chinese Academy of Medical Science and Peking Union Medical College, Beijing, 100730, China.
BMC Med Imaging. 2024 Jun 11;24(1):142. doi: 10.1186/s12880-024-01321-5.

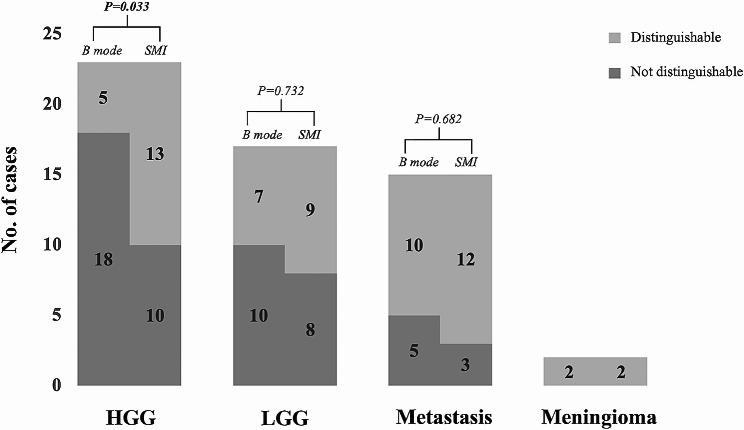

BACKGROUND: To investigate whether the intraoperative superb microvascular imaging(SMI) technique helps evaluate lesion boundaries compared with conventional grayscale ultrasound in brain tumor surgery and to explore factors that may be associated with complete radiographic resection. METHODS: This study enrolled 57 consecutive brain tumor patients undergoing surgery. During the operation, B-mode and SMI ultrasound evaluated the boundaries of brain tumors. MRI before and within 48h after surgery was used as the gold standard to evaluate gross-total resection(GTR). The ultrasound findings and GTR results were analyzed to determine the imaging factors related to GTR. RESULTS: A total of 57 patients were enrolled in the study, including 32 males and 25 females, with an average age of 53.4 ± 14.1 years old(range 19 ~ 80). According to the assessment criteria of MRI, before and within 48 h after the operation, 37(63.9%) cases were classified as GTR, and 20(35.1%) cases were classified as GTR. In comparing tumor interface definition between B-mode and SMI mode, SMI improved HGG boundary recognition in 5 cases(P = 0.033). The results showed that the tumor size ≥ 5 cm and unclear ultrasonic boundary were independent risk factors for nGTR (OR>1, P<0.05). CONCLUSIONS: As an innovative intraoperative doppler technique in neurosurgery, SMI can effectively demarcate the tumor's boundary and help achieve GTR as much as possible.
背景:研究术中超级微血管成像(SMI)技术与常规灰阶超声相比,是否有助于评估脑肿瘤手术中的病变边界,并探讨与完全影像学切除相关的因素。
方法:本研究纳入了 57 例连续接受手术的脑肿瘤患者。手术过程中,B 型超声和 SMI 超声评估脑肿瘤的边界。将术前和术后 48 小时内的 MRI 作为金标准,评估大体全切除(GTR)。分析超声表现与 GTR 结果,确定与 GTR 相关的影像学因素。
结果:共纳入 57 例患者,其中男 32 例,女 25 例,平均年龄 53.4±14.1 岁(19~80 岁)。根据 MRI 评估标准,术前和术后 48 小时内,37 例(63.9%)被评估为 GTR,20 例(35.1%)为非 GTR。在比较 B 型超声和 SMI 模式下肿瘤界面定义时,SMI 改善了 5 例高级别胶质瘤(HGG)边界的识别(P=0.033)。结果表明,肿瘤大小≥5cm 和超声边界不清是 nGTR 的独立危险因素(OR>1,P<0.05)。
结论:作为神经外科术中一种创新的多普勒技术,SMI 可以有效地划定肿瘤边界,有助于实现尽可能的 GTR。
