GMSA-Net: A Transmission Line Ice Thickness Identification Network Based on Global Micro Strip Awareness.

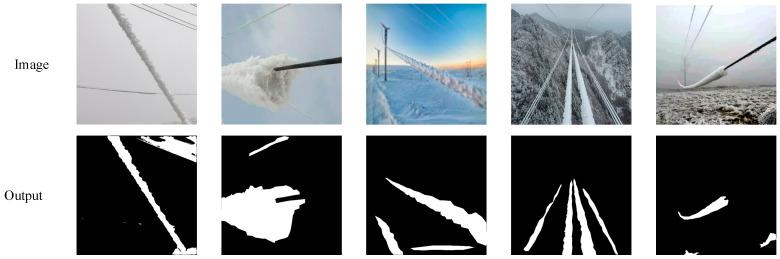

Ice-covered transmission lines seriously affect the normal operation of the power transmission system. Resonance deicing based on different ice thicknesses is an effective method to solve the issue of ice-covered transmission lines. In order to obtain accurate ice thickness of transmission lines, this paper designs an ice thickness of transmission line recognition model based on Global Micro Strip Awareness Net (GMSA-Net) and proposes a Mixed Strip Convolution Module (MSCM) and a global micro awareness module (GMAM). The MSCM adapts to the shape of ice-covered transmission lines by using strip convolutions with different receptive fields, improving the encoder's ability to extract ice-covered features; the GMAM perceives through both global and micro parts, mining the connections between semantic information. Finally, the ice thickness of the generated segmented image is calculated using the method of regional pixel statistics. Experiments are conducted on the dataset of ice-covered transmission lines. The mean Intersection over Union (mIoU) of image segmentation reaches 96.4%, the balanced F-Score (F1-Score) is 98.1%, and the identification error of ice thickness is within 3.8%. Experimental results prove that this method can accurately identify the ice thickness of transmission lines, providing a control basis for the application of resonant deicing engineering.
