• 文献检索
  • 文档翻译
  • 深度研究
  • 学术资讯
  • Suppr Zotero 插件Zotero 插件
  • 邀请有礼
  • 套餐&价格
  • 历史记录
应用&插件
Suppr Zotero 插件Zotero 插件浏览器插件Mac 客户端Windows 客户端微信小程序
定价
高级版会员购买积分包购买API积分包
服务
文献检索文档翻译深度研究API 文档MCP 服务
关于我们
关于 Suppr公司介绍联系我们用户协议隐私条款
关注我们

Suppr 超能文献

核心技术专利:CN118964589B侵权必究
粤ICP备2023148730 号-1Suppr @ 2026

文献检索

告别复杂PubMed语法,用中文像聊天一样搜索,搜遍4000万医学文献。AI智能推荐,让科研检索更轻松。

立即免费搜索

文件翻译

保留排版,准确专业,支持PDF/Word/PPT等文件格式,支持 12+语言互译。

免费翻译文档

深度研究

AI帮你快速写综述,25分钟生成高质量综述,智能提取关键信息,辅助科研写作。

立即免费体验

ARMOX 500T钢的激光焊接

Laser Welding of ARMOX 500T Steel.

作者信息

Lisiecki Aleksander, Kurc-Lisiecka Agnieszka, Pakieła Wojciech, Chrobak Grzegorz, Batalha Gilmar Ferreira, Adamiak Marcin

机构信息

Department of Welding Engineering, Faculty of Mechanical Engineering, Silesian University of Technology, Konarskiego 18A Str., 44-100 Gliwice, Poland.

Institute of Applied Sciences, WSB Merito University in Poznan, Sportowa 29 Str., 41-506 Chorzow, Poland.

出版信息

Materials (Basel). 2024 Jul 11;17(14):3427. doi: 10.3390/ma17143427.

DOI:10.3390/ma17143427
PMID:39063722
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC11278300/
Abstract

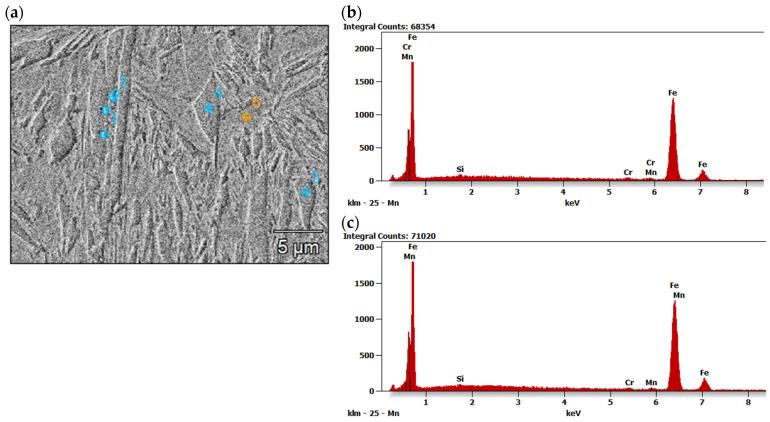

The article describes the results of the study on laser welding of armor plates with a nominal thickness of 3.0 mm. The plates were made of Armox 500T steel characterized by a hardness of up to 540 HB, a minimum yield strength of 1250 MPa, an ultimate strength of up to 1750 MPa, and an elongation A5 minimum of 8%. The laser used for the welding tests was a solid state Yb:YAG laser. The influence of basic parameters such as laser output power, welding speed, and focal plane position on the weld geometry was determined during bead-on-plate welding tests. The optimal conditions for butt joint welding were determined, and the test joints were subjected to mechanical and impact tests, metallographic analysis, and hardness measurements. It has been shown that it is possible to laser weld Armox 500T armor plates, and at the same time it is possible to provide high quality butt joints, but this requires precise selection of welding parameters. A decrease in HAZ hardness of about 22-35% in relation to the hardness of the base material, ranging from 470 to 510 HV0.2, was found. The ultimate tensile strength of the test joints was approx. 20% lower than the Armox 500T steel. The bending tests revealed the low plasticity of the tested joints because the bending angle was just 25-35°. The results of Charpy V-notch test revealed that the impact toughness of the weld metal at -20 °C was approx. 30% lower than at room temperature.

摘要

本文描述了对名义厚度为3.0毫米的装甲板进行激光焊接的研究结果。这些板材由Armox 500T钢制成,其硬度高达540 HB,最小屈服强度为1250 MPa,极限强度高达1750 MPa,伸长率A5最小值为8%。用于焊接试验的激光是固态Yb:YAG激光。在平板堆焊试验中确定了激光输出功率、焊接速度和焦平面位置等基本参数对焊缝几何形状的影响。确定了对接接头焊接的最佳条件,并对试验接头进行了力学和冲击试验、金相分析以及硬度测量。结果表明,可以对Armox 500T装甲板进行激光焊接,同时可以提供高质量的对接接头,但这需要精确选择焊接参数。发现热影响区硬度相对于母材硬度降低了约22 - 35%,母材硬度范围为470至510 HV0.2。试验接头的极限抗拉强度比Armox 500T钢低约20%。弯曲试验表明试验接头的塑性较低,因为弯曲角度仅为25 - 35°。夏比V型缺口试验结果表明,焊缝金属在-20°C时的冲击韧性比室温时低约30%。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/ca76dc37189b/materials-17-03427-g017.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/e41c0e06e9b7/materials-17-03427-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/b7d631fa067e/materials-17-03427-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/443651e38f7c/materials-17-03427-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/57bb7b7ba825/materials-17-03427-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/b8e3b5831ae7/materials-17-03427-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/9ff0cc9d82df/materials-17-03427-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/eca80e298dff/materials-17-03427-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/653f2039cd47/materials-17-03427-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/2533608c8c55/materials-17-03427-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/1fd4ea818d35/materials-17-03427-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/b7bf9eeb39ea/materials-17-03427-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/d01ab9fdc14c/materials-17-03427-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/e4211aaacb35/materials-17-03427-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/633fa001772b/materials-17-03427-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/051cfb44c8b7/materials-17-03427-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/229c9276f619/materials-17-03427-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/ca76dc37189b/materials-17-03427-g017.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/e41c0e06e9b7/materials-17-03427-g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/b7d631fa067e/materials-17-03427-g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/443651e38f7c/materials-17-03427-g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/57bb7b7ba825/materials-17-03427-g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/b8e3b5831ae7/materials-17-03427-g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/9ff0cc9d82df/materials-17-03427-g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/eca80e298dff/materials-17-03427-g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/653f2039cd47/materials-17-03427-g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/2533608c8c55/materials-17-03427-g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/1fd4ea818d35/materials-17-03427-g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/b7bf9eeb39ea/materials-17-03427-g011.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/d01ab9fdc14c/materials-17-03427-g012.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/e4211aaacb35/materials-17-03427-g013.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/633fa001772b/materials-17-03427-g014.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/051cfb44c8b7/materials-17-03427-g015.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/229c9276f619/materials-17-03427-g016.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/8502/11278300/ca76dc37189b/materials-17-03427-g017.jpg

相似文献

1
Laser Welding of ARMOX 500T Steel.ARMOX 500T钢的激光焊接
Materials (Basel). 2024 Jul 11;17(14):3427. doi: 10.3390/ma17143427.
2
Underwater Local Cavity Welding of S460N Steel.S460N钢的水下局部空腔焊接
Materials (Basel). 2020 Dec 4;13(23):5535. doi: 10.3390/ma13235535.
3
A Comparative Study on Microstructural Characterization of Thick High Strength Low Alloy Steel Weld by Arc Welding and Laser Welding.电弧焊与激光焊对厚壁高强度低合金钢焊缝微观结构表征的对比研究
Materials (Basel). 2023 Mar 9;16(6):2212. doi: 10.3390/ma16062212.
4
Metallurgical and mechanical properties of laser welded high strength low alloy steel.高强度低合金钢的激光焊接冶金和力学性能。
J Adv Res. 2016 May;7(3):463-72. doi: 10.1016/j.jare.2016.03.005. Epub 2016 Mar 21.
5
P92 steel and inconel 617 alloy welds joint produced using ERNiCr-3 filler with GTAW process: Solidification mechanism, microstructure, mechanical properties and residual stresses.采用ERNiCr-3填充材料和钨极气体保护弧焊工艺生产的P92钢与因科镍合金617焊缝接头:凝固机制、微观结构、力学性能和残余应力
Heliyon. 2023 Aug 7;9(8):e18959. doi: 10.1016/j.heliyon.2023.e18959. eCollection 2023 Aug.
6
Effect of Welding Speed and Post Quenching on the Microstructure and Mechanical Properties of Laser-Welded B1500HS Joints.焊接速度和焊后淬火对激光焊接B1500HS接头组织和力学性能的影响
Materials (Basel). 2020 Oct 18;13(20):4645. doi: 10.3390/ma13204645.
7
Assessment of the Laser Beam Welding of Galvanized Car Body Steel with an Additional Organic Protective Layer.带有附加有机保护层的镀锌汽车车身钢激光束焊接评估
Materials (Basel). 2023 Jan 10;16(2):670. doi: 10.3390/ma16020670.
8
Mechanical Properties and Microstructural Characterization of Laser Welded S32520 Duplex Stainless Steel.激光焊接S32520双相不锈钢的力学性能与微观结构表征
Materials (Basel). 2021 Sep 24;14(19):5532. doi: 10.3390/ma14195532.
9
Effect of Process Parameters on the Formability, Microstructure, and Mechanical Properties of Laser-Arc Hybrid Welding of Q355B Steel.工艺参数对Q355B钢激光-电弧复合焊接成形性、微观组织及力学性能的影响
Materials (Basel). 2023 Jun 8;16(12):4253. doi: 10.3390/ma16124253.
10
Effect of incident angle on weld microstructure and mechanical properties of laser beam welded nitronic -50 austenitic stainless steel joints.入射角对激光束焊接 Nitronic-50 奥氏体不锈钢接头焊接组织和力学性能的影响。
Micron. 2023 Jun;169:103457. doi: 10.1016/j.micron.2023.103457. Epub 2023 Mar 31.

本文引用的文献

1
Characterization of Microstructure, Phase Composition, and Mechanical Behavior of Ballistic Steels.防弹钢的微观结构、相组成及力学行为表征
Materials (Basel). 2022 Mar 16;15(6):2204. doi: 10.3390/ma15062204.
2
Correlation of Neutron-Based Strain Imaging and Mechanical Behavior of Armor Steel Welds Produced with the Hybrid Laser Arc Welding Process.基于中子的应变成像与混合激光电弧焊接工艺制备的装甲钢焊缝力学行为的相关性
J Res Natl Inst Stand Technol. 2018 Jun 11;123:1-8. doi: 10.6028/jres.123.011. eCollection 2018.
3
Autogenous Fiber Laser Welding of 316L Austenitic and 2304 Lean Duplex Stainless Steels.
316L奥氏体不锈钢和2304型低合金双相不锈钢的自熔性光纤激光焊接
Materials (Basel). 2020 Jun 30;13(13):2930. doi: 10.3390/ma13132930.
4
A Combination of Keyhole GTAW with a Trapezoidal Interlayer: A New Insight into Armour Steel Welding.带梯形中间层的小孔 GTAW 组合:装甲钢焊接的新见解
Materials (Basel). 2019 Oct 31;12(21):3571. doi: 10.3390/ma12213571.
5
Microstructure Evolution and Mechanical Stability of Retained Austenite in Medium-Mn Steel Deformed at Different Temperatures.不同温度下变形中锰钢中残余奥氏体的微观结构演变与力学稳定性
Materials (Basel). 2019 Sep 19;12(18):3042. doi: 10.3390/ma12183042.
