Voeten Robert L C, Hendriks Floran, Bezemer G Leendert
Energy Transition Campus Amsterdam, Shell Global Solutions International B.V., Grasweg 31, 1031 HW Amsterdam, The Netherlands.
ACS Omega. 2024 Jul 10;9(29):31974-31985. doi: 10.1021/acsomega.4c03734. eCollection 2024 Jul 23.

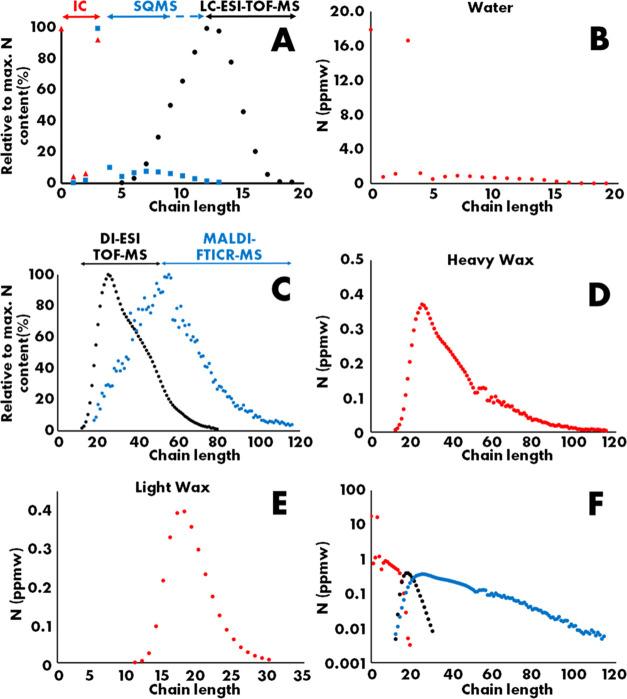

Fischer-Tropsch synthesis combined with product workup is a promising route toward synthetic aviation fuel from renewable hydrogen and carbon sources like biomass, CO, and waste. Cost savings can be achieved by reducing the number of gas treatment steps in new plants, but the consequence of contaminants in the feed needs investigation. While feeding 2.6 ppmV ammonia to a Fischer-Tropsch reactor, it was shown that ammonia was predominantly chemically converted into organic amines, with most nitrogen found in the water phase (89%), followed by heavy wax (7%) and light wax (1%). The concentration difference between water and light wax was shown to be due to the post-condensation separation of amines on polarity. Amines up to a chain length of 120 were detected in the heavy wax with MALDI-FT-ICR-MS, which, in combination with the high nitrogen content, suggests that amines have a similar chain growth probability compared to the main hydrocarbon products. Detailed product analysis with three independent analytical techniques showed that tertiary ,-dimethylalkylamines were by far the most abundant amine class. This suggests that ammonia is decomposed on the cobalt surface and, potentially as a dimethylamine fragment, incorporated in the growing chain. Further evidence was obtained from the abundance of trimethylamine and from the reconciled nitrogen product analysis up to C100, which showed that the amine product distribution followed from naphtha onward the same ASF kinetics as alkanes and oxygenates while being distinctively different from the alkene distribution. The presented findings provide further avenues for studies of the Fischer-Tropsch reaction mechanism and indicate the opportunity of cost saving on gas treatment, while further validation is required to assess the impact on hydrocracking and product quality.
费托合成与产物后处理相结合是一种从生物质、一氧化碳和废物等可再生氢源和碳源生产合成航空燃料的有前景的途径。通过减少新装置中气体处理步骤的数量可以实现成本节约,但进料中污染物的影响需要进行研究。在向费托反应器中进料2.6 ppmV氨时,结果表明氨主要通过化学转化生成有机胺,大部分氮存在于水相中(89%),其次是重蜡(7%)和轻蜡(1%)。水相和轻蜡之间的浓度差异表明是由于胺在极性上的冷凝后分离造成的。通过基质辅助激光解吸电离傅里叶变换离子回旋共振质谱(MALDI-FT-ICR-MS)在重蜡中检测到了链长高达120的胺,这与高氮含量相结合,表明胺与主要烃类产物相比具有相似的链增长概率。使用三种独立分析技术进行的详细产物分析表明,叔α,α-二甲基烷基胺是迄今为止含量最丰富的胺类。这表明氨在钴表面分解,并可能作为二甲胺片段并入生长链中。从三甲胺的丰度以及高达C100的协调氮产物分析中获得了进一步的证据,结果表明从石脑油开始,胺产物分布遵循与烷烃和含氧化合物相同的ASF动力学,同时与烯烃分布明显不同。所呈现的研究结果为费托反应机理的研究提供了进一步的途径,并表明了气体处理成本节约的机会,同时需要进一步验证以评估其对加氢裂化和产物质量的影响。
