PD-L1 macrophage and tumor cell abundance and proximity to T cells in the pretreatment large B-cell lymphoma microenvironment impact CD19 CAR-T cell immunotherapy efficacy.

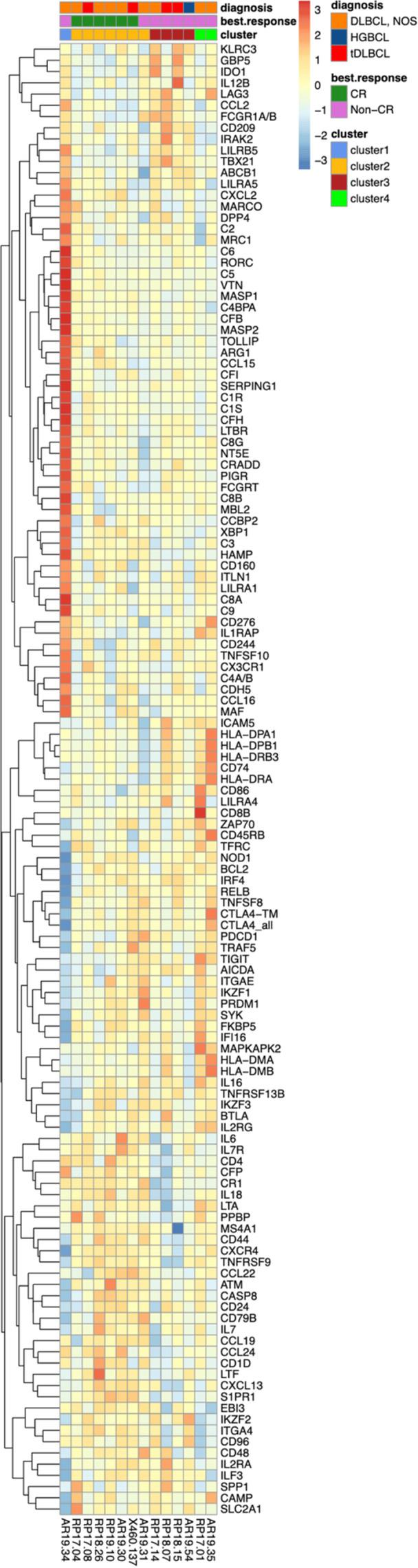

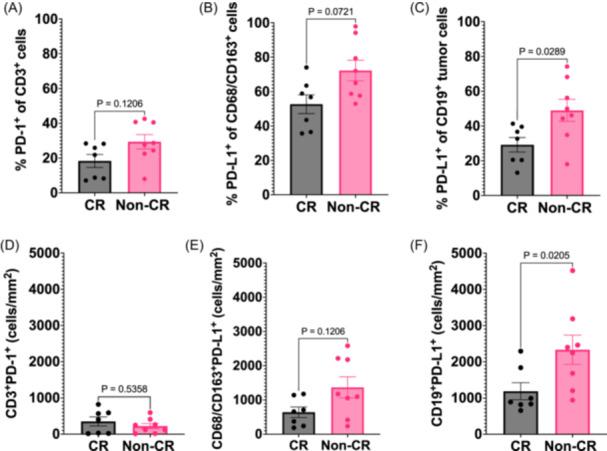

CD19-targeted chimeric antigen receptor T-cell (CAR-T) immunotherapy has transformed the management of relapsed/refractory large B-cell lymphoma (LBCL), yet durable remissions are observed in less than half of treated patients. The tumor microenvironment (TME) is a key and understudied factor impacting CD19 CAR-T therapy outcomes. Using NanoString nCounter transcriptome profiling ( = 24) and multiplex immunohistochemistry (mIHC,  = 15), we studied the TME in pretreatment biopsies from patients with LBCL undergoing CD19 CAR-T therapy. Patients who achieved complete response (CR) after CAR-T therapy demonstrated higher expression of genes associated with T-cell trafficking and function, whereas those who did not achieve CR had higher expression of genes associated with macrophages and T-cell dysfunction. Distinct patterns of immune infiltration and fibrosis in the TME were associated with CAR-T therapy outcomes, and these findings were corroborated using artificial intelligence-assisted image analyses. Patients who achieved CR had a lower proportion of the biopsy occupied by an interspersed immune infiltrate and a higher proportion of hypocellular/fibrotic regions. Furthermore, mIHC revealed lower density of CD4 T cells and higher densities of both macrophages and tumor cells expressing PD-L1 in non-CR patients. Spatial analysis revealed that PD-1 T cells were in close proximity to PD-L1 macrophages or PD-L1 tumor cells in patients who did not compared to those who did achieve CR after CAR-T therapy. These findings suggest that morphologic patterns in the TME and engagement of the PD-1/PD-L1 axis in pretreatment biopsies may impact CD19 CAR-T immunotherapy response in patients with LBCL.
