Incident Angle Sensing and Adaptive Control of Scattering by Intelligent Metasurface.

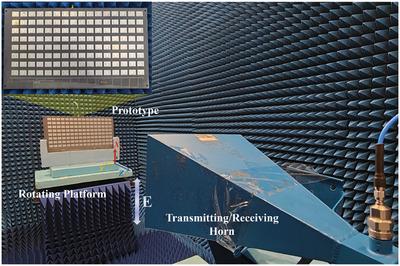

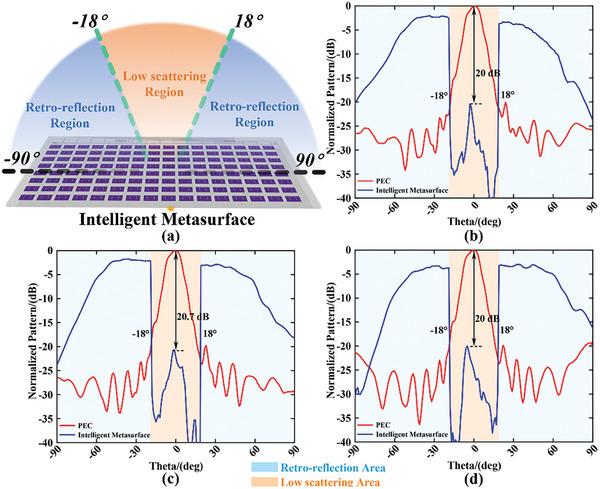

The passive sensing and active control of electromagnetic (EM) waves have always been attractive in electronic and information areas, especially during the intelligent era. Here a new method is presented to achieve the angle sensing of incident wave and adaptive control of backward scattering using the intelligent metasurface. The proposed unit cells have the ability to dynamically manipulate the receiving and reflection of the EM energy respectively. The angle sensing of incident waves can be actualized using the method of compressive sensing based on multiple receiving patterns, which are generated by randomly switching the receiving and reflection states of the unit cells. Afterward, the customized performances of backward scattering waves according to the cognitive incident angle can be realized by controlling the programmable reflective phases of unit cells correspondingly. One prototype composed of the metasurface and the module for sensing and adaptive feedback control is fabricated. The whole intelligent metasurface with customizing the function of retro-reflection or low scattering is measured without human intervention and the good results acquired can verify the validity of the proposed concept and design.
