Shin Hongjoo, Hong Doosun, Cho Hyunjin, Jang Hanhwi, Kim Geon Yeong, Song Kyeong Min, Choi Min-Jae, Kim Donghun, Jung Yeon Sik
Department of Materials Science and Engineering, Korea Advanced Institute of Science and Technology, 291 Daehak-ro, Yuseong-gu, Daejeon, 34141, Republic of Korea.
Computational Science Research Center, Korea Institute of Science and Technology, 14-gil 5, Hwarang-ro, Seongbuk-gu, Seoul, 02792, Republic of Korea.
Nat Commun. 2024 Sep 16;15(1):8125. doi: 10.1038/s41467-024-52535-8.

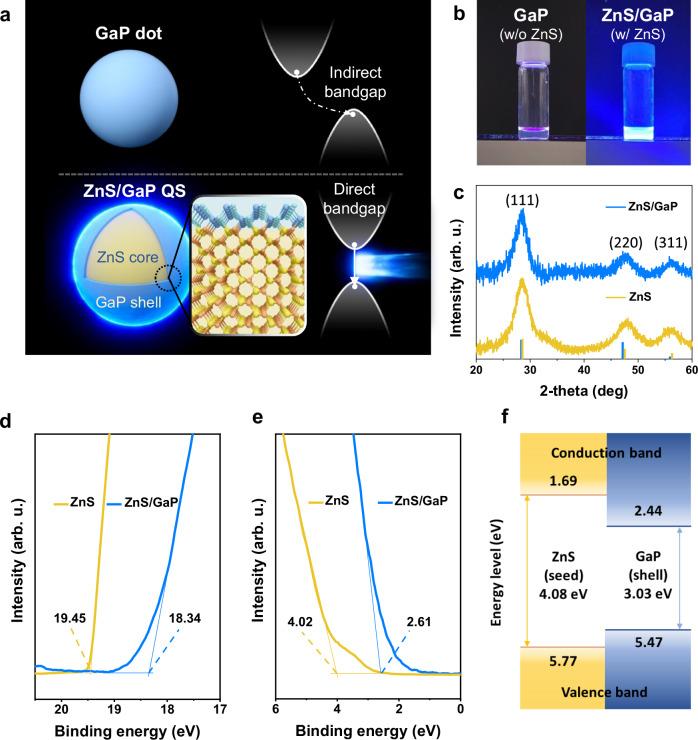

Although GaP, a III-V compound semiconductor, has been extensively utilized in the optoelectronic industry for decades as a traditional material, the inherent indirect bandgap nature of GaP limits its efficiency. Here, we demonstrate an indirect-to-direct bandgap transition of GaP through the formation of quantum shells on the surface of ZnS nanocrystals. The ZnS/GaP quantum shell with a reverse-type I heterojunction, consisting of a monolayer-thin GaP shell grown atop a ZnS core, exhibits a record-high photoluminescence quantum yield of 45.4% in the violet emission range (wavelength = 409 nm), validating its direct bandgap nature. Density functional theory calculations further reveal that ZnS nanocrystals, as the growth platform for GaP quantum shells, play a crucial role in the direct bandgap formation through hybridization of electronic states with GaP. These findings suggest potential for achieving direct bandgaps in compounds that are constrained by their inherent indirect energy gaps, offering a strategy for tailoring energy structures to significantly improve efficiencies in optoelectronics and photovoltaics.
尽管作为一种传统材料,III-V族化合物半导体GaP已在光电子行业广泛应用了数十年,但GaP固有的间接带隙特性限制了其效率。在此,我们通过在ZnS纳米晶体表面形成量子壳层,证明了GaP的间接带隙向直接带隙的转变。由单层薄GaP壳层生长在ZnS核上构成的具有反型I型异质结的ZnS/GaP量子壳层,在紫光发射范围(波长 = 409 nm)内表现出创纪录的高光致发光量子产率45.4%,证实了其直接带隙特性。密度泛函理论计算进一步表明,ZnS纳米晶体作为GaP量子壳层的生长平台,通过与GaP的电子态杂化在直接带隙形成中起关键作用。这些发现表明,对于受固有间接能隙限制的化合物,实现直接带隙具有潜力,为调整能量结构以显著提高光电子学和光伏领域的效率提供了一种策略。
