通过瘤内和瘤周多参数MRI影像组学列线图对子宫内膜癌患者淋巴结转移进行术前预测。
Preoperative prediction of lymph node metastasis in endometrial cancer patients via an intratumoral and peritumoral multiparameter MRI radiomics nomogram.
作者信息
Yan Bin, Zhao Tingting, Deng Ying, Zhang Yili
机构信息
Department of Radiology, Shaanxi Provincial Tumor Hospital, Xi'an, China.
Department of Medical Imaging, First Affiliated Hospital of Xi'an Jiaotong University, Xi'an, Shaanxi, China.
出版信息
Front Oncol. 2024 Sep 19;14:1472892. doi: 10.3389/fonc.2024.1472892. eCollection 2024.
INTRODUCTION
While lymph node metastasis (LNM) plays a critical role in determining treatment options for endometrial cancer (EC) patients, the existing preoperative methods for evaluating the lymph node state are not always satisfactory. This study aimed to develop and validate a nomogram based on intra- and peritumoral radiomics features and multiparameter magnetic resonance imaging (MRI) features to preoperatively predict LNM in EC patients.
METHODS

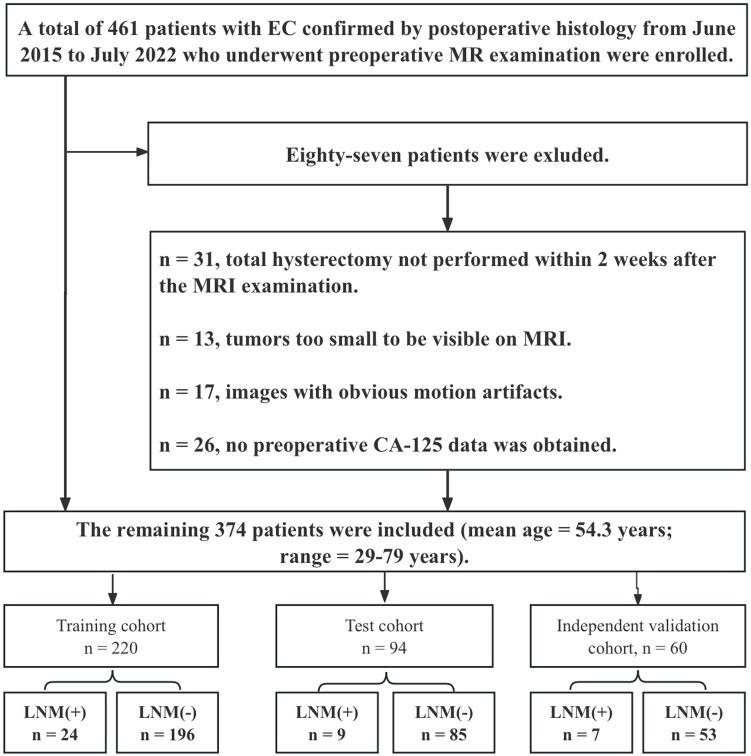

Three hundred and seventy-four women with histologically confirmed EC were divided into training (n = 220), test (n = 94), and independent validation (n = 60) cohorts. Radiomic features were extracted from intra- and peritumoral regions via axial T2-weighted imaging (T2WI) and apparent diffusion coefficient (ADC) mapping. A radiomics model (annotated as the Radscore) was established using the selected features from different regions. The clinical parameters were statistically analyzed. A nomogram was developed by combining the Radscore and the most predictive clinical parameters. Decision curve analysis (DCA) and the net reclassification index (NRI) were used to assess the clinical benefit of using the nomogram.
RESULTS
Nine radiomics features were ultimately selected from the intra- and peritumoral regions via ADC mapping and T2WI. The nomogram combining the Radscore, serum CA125 level, and tumor area ratio achieved the highest AUCs in the training, test and independent validation sets (nomogram vs. Radscore vs. clinical model: 0.878 vs. 0.850 vs. 0.674 (training), 0.877 vs. 0.838 vs. 0.668 (test), and 0.864 vs. 0.836 vs. 0.618 (independent validation)). The DCA and NRI results revealed the nomogram had greater diagnostic performance and net clinical benefits than the Radscore alone.
CONCLUSION
The combined intra- and peritumoral region multiparameter MRI radiomics nomogram showed good diagnostic performance and could be used to preoperatively predict LNM in patients with EC.
引言
虽然淋巴结转移(LNM)在确定子宫内膜癌(EC)患者的治疗方案中起着关键作用,但现有的术前评估淋巴结状态的方法并不总是令人满意。本研究旨在开发并验证一种基于瘤内和瘤周放射组学特征以及多参数磁共振成像(MRI)特征的列线图,以术前预测EC患者的LNM。
方法
374名经组织学确诊为EC的女性被分为训练组(n = 220)、测试组(n = 94)和独立验证组(n = 60)。通过轴位T2加权成像(T2WI)和表观扩散系数(ADC)图从瘤内和瘤周区域提取放射组学特征。使用从不同区域选择的特征建立放射组学模型(标记为Radscore)。对临床参数进行统计分析。通过结合Radscore和最具预测性的临床参数来开发列线图。使用决策曲线分析(DCA)和净重新分类指数(NRI)来评估使用列线图的临床益处。
结果
最终通过ADC图和T2WI从瘤内和瘤周区域选择了9个放射组学特征。结合Radscore、血清CA125水平和肿瘤面积比的列线图在训练组、测试组和独立验证组中获得了最高的曲线下面积(列线图与Radscore与临床模型相比:0.878对0.850对0.674(训练组),0.877对0.838对0.668(测试组),0.864对0.836对0.618(独立验证组))。DCA和NRI结果显示,列线图比单独的Radscore具有更好的诊断性能和净临床益处。
结论
联合瘤内和瘤周区域多参数MRI放射组学列线图显示出良好的诊断性能,可用于术前预测EC患者的LNM。
