Gorce Philippe, Jacquier-Bret Julien
International Institute of Biomechanics and Occupational Ergonomics, 83418 Hyères, France.
University of Toulon, CS60584, 83041 Toulon, France.
Bioengineering (Basel). 2024 Sep 27;11(10):974. doi: 10.3390/bioengineering11100974.

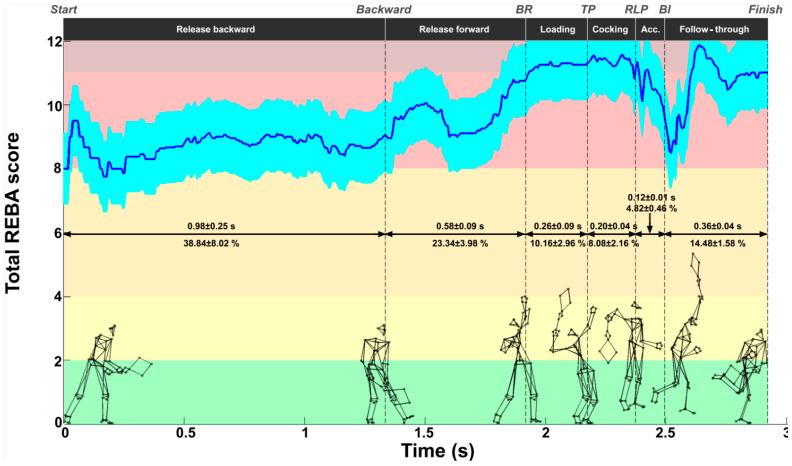

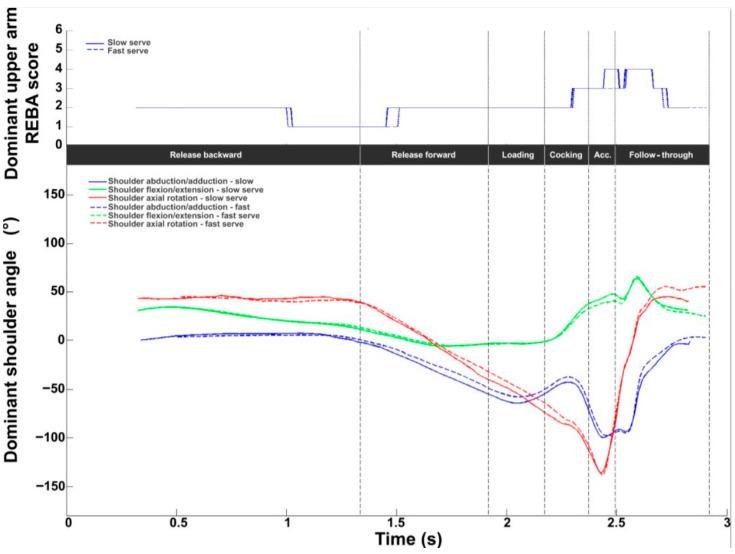

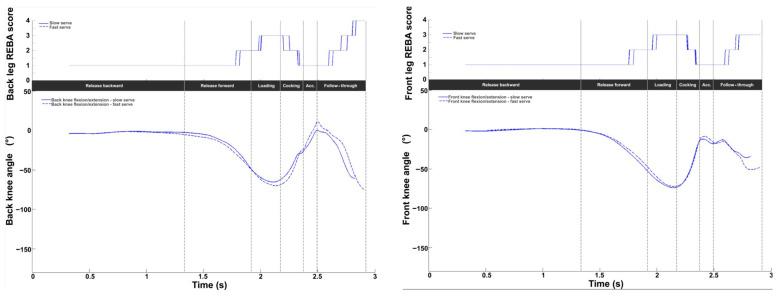

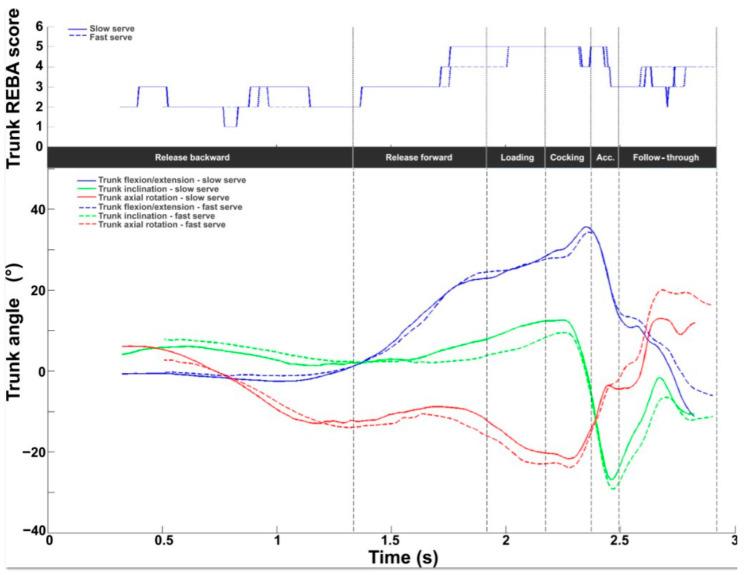

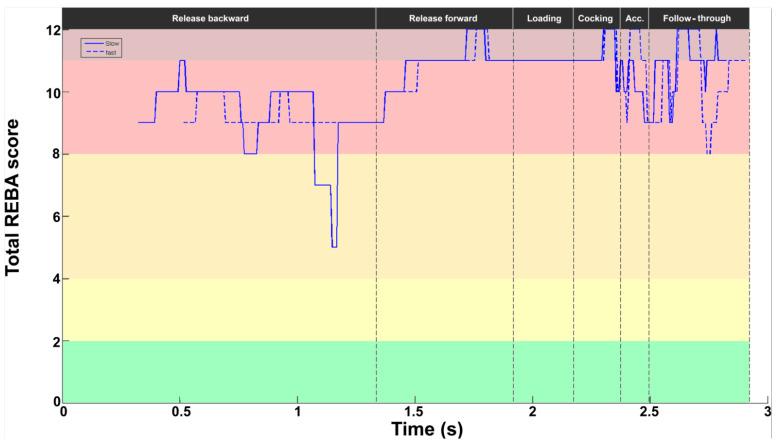

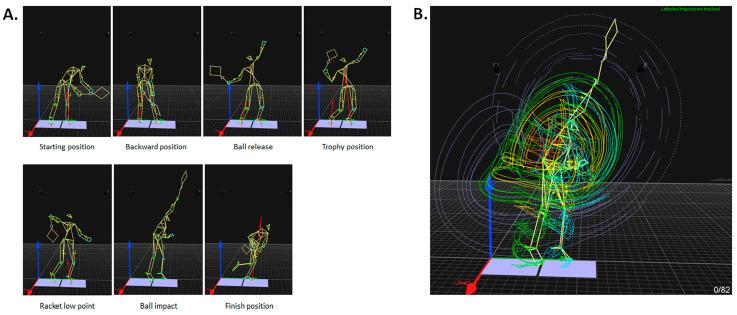

Addressing the risk of musculoskeletal disorders (MSDs) during a tennis serve is a challenge for both protecting athletes and maintaining performance. The aim of this study was to investigate the risk of MSD occurrence using the rapid whole-body assessment (REBA) ergonomic tool at each time step, using 3D kinematic analysis of joint angles for slow and fast serves. Two force platforms (750 Hz) and an optoelectronic system including 10 infrared cameras (150 Hz, 82 markers located on the whole body and on the racket) were used to capture the kinematics of the six REBA joint areas over five services in two young male and two young female ranked players. The mean REBA score was 9.66 ± 1.11 (ranging from 7.75 to 11.85) with the maximum value observed for the loading and cocking stage (REBA score > 11). The intermediate scores for each of the six joint areas ranged between 2 and 3 and the maximum value of their respective scales. The lowest scores were observed for the shoulder. Neck rotation and shoulder flexion are parameters that could be taken into account when analyzing performance in the context of MSD prevention.
在网球发球过程中应对肌肉骨骼疾病(MSD)风险,对于保护运动员和维持运动表现而言都是一项挑战。本研究的目的是在每个时间步长使用快速全身评估(REBA)工效学工具,通过对慢速和快速发球的关节角度进行三维运动学分析,来调查MSD发生的风险。使用两个测力平台(750赫兹)和一个光电系统,该系统包括10台红外摄像机(150赫兹,82个标记点分布于全身及球拍上),对两名年轻男性和两名年轻女性排名球员的五次发球过程中六个REBA关节区域的运动学进行采集。REBA平均得分为9.66±1.11(范围为7.75至11.85),在加载和引拍阶段观察到最大值(REBA得分>11)。六个关节区域各自的中间分数在2到3之间,处于其各自量表的最大值。肩部得分最低。在分析MSD预防背景下的表现时,颈部旋转和肩部屈曲是可以考虑的参数。
