表面形态和内部结构对来自……的蛇鳞摩擦学行为的影响

Effect of Surface Morphology and Internal Structure on the Tribological Behaviors of Snake Scales from .

作者信息

Shi Ge, Wang Jinhao, Dong Yuehua, Hu Song, Zheng Long, Ren Luquan

机构信息

Key Laboratory of Bionic Engineering (Ministry of Education), Jilin University, Changchun 130025, China.

Weihai Institute for Bionics, Jilin University, Weihai 264402, China.

出版信息

Biomimetics (Basel). 2024 Oct 11;9(10):617. doi: 10.3390/biomimetics9100617.

Abstract

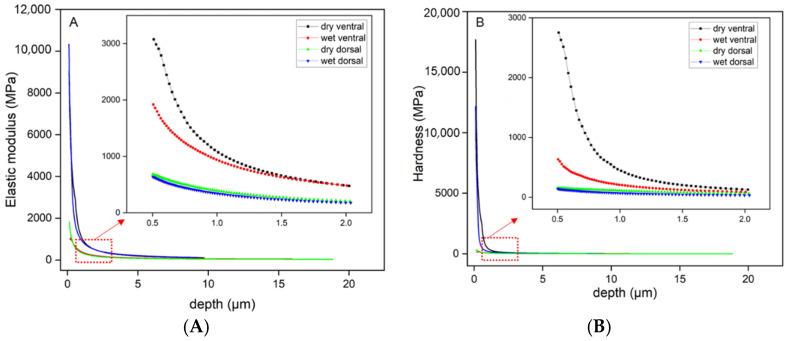

Snakes can move freely on land, in lakes, and in other environments. During movement, the scales are in long-term contact with the external environment, providing protection to the body. In this study, we evaluated the mechanical properties and scratching performance of the ventral and dorsal scales from , a generalist species that moves on both land and in streams under wet and dry conditions. The results showed that the elastic modulus and hardness of the dry scales were greater than those of the wet scales. The average scale friction coefficient under wet conditions (0.1588) was 9.3% greater than that under dry conditions (0.1453). The scales exhibit brittle damage in dry environments, while in wet environments, ductile damage is observed. This adaptation mechanism allows the scales to protect the body by dissipating energy and reducing stress concentration, ensuring efficient locomotion and durability in both terrestrial and aquatic environments. Understanding how this biomaterial adapts to environmental changes can inspire the development of bionic materials.

摘要

蛇可以在陆地、湖泊和其他环境中自由移动。在移动过程中,鳞片长期与外部环境接触,为身体提供保护。在本研究中,我们评估了一种在干湿条件下均可在陆地和溪流中移动的广适性物种的腹侧和背侧鳞片的力学性能和刮擦性能。结果表明,干燥鳞片的弹性模量和硬度大于湿润鳞片。湿润条件下的平均鳞片摩擦系数(0.1588)比干燥条件下(0.1453)高9.3%。鳞片在干燥环境中表现出脆性损伤,而在湿润环境中则观察到韧性损伤。这种适应机制使鳞片能够通过耗散能量和降低应力集中来保护身体,确保在陆地和水生环境中都能高效移动并具有耐久性。了解这种生物材料如何适应环境变化能够启发仿生材料的开发。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/9538/11506616/d6da20e73a18/biomimetics-09-00617-g001.jpg
