Chuang Chi-Fen, Lin Chia-Wei, Yeh Chih-Kuang
Department of Biomedical Engineering and Environmental Sciences, National Tsing Hua University, Hsinchu, Taiwan.
Department of Biomedical Engineering and Environmental Sciences, National Tsing Hua University, Hsinchu, Taiwan.
Ultrason Sonochem. 2025 Jan;112:107182. doi: 10.1016/j.ultsonch.2024.107182. Epub 2024 Dec 1.

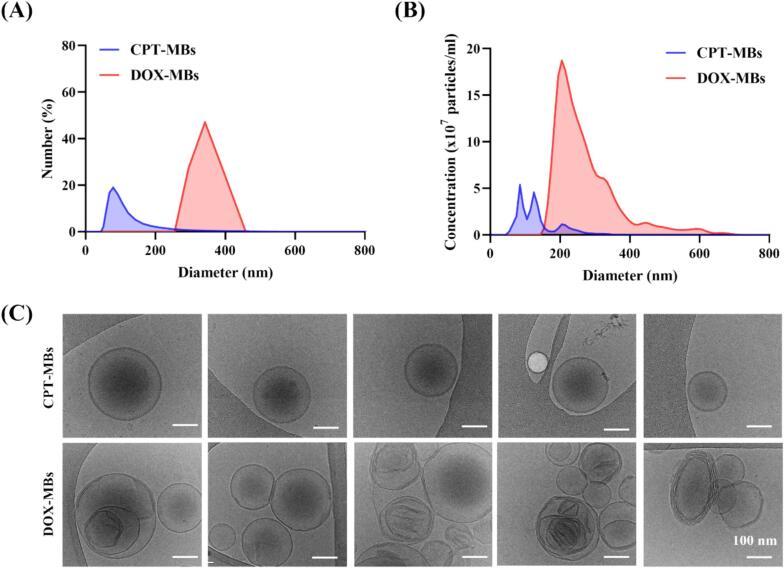

Ultrasound (US)-triggered cavitation of drug-loaded microbubbles (MBs) represents a promising approach for targeted drug delivery, with substantial benefits attainable through precise control over drug release dosage and form. This study investigates Camptothecin-loaded MBs (CPT-MBs) and Doxorubicin-loaded MBs (DOX-MBs), focusing on how properties such as hydrophilicity, hydrophobicity, and charged functional groups affect their interaction with the lipid surfaces of MBs, thereby influencing the fundamental characteristics and acoustic properties of the drug-loaded MBs. In comparison to DOX-MBs, CPT-MBs showed larger MB size (2.2 ± 0.3 and 1.4 ± 0.1 μm, respectively), a 2-fold increase in drug loading, and an 18 % reduction in leakage after 2 h at 37℃. Under 1 MHz US with a 100 ms pulse repetition interval (PRI), 1000 cycles, 5-minute duration, and 550 kPa acoustic pressure, CPT-MBs undergo inertial cavitation, while DOX-MBs undergo stable cavitation. Drug particles released from these MBs under US-induced cavitation were analyzed using dynamic light scattering, NanoSight, cryo-electron microscopy, and density gradient ultracentrifugation. Results showed that CPT-MBs mainly release free CPT, while DOX-MBs release multilayered DOX-lipid aggregates. The cytotoxicity to C6 cells induced by US-triggered cavitation of these two types of MBs also differed. DOX-lipid aggregates delayed initial uptake, leading to less pronounced short-term (2 h) effects compared to the rapid release of free CPT from CPT-MBs. These findings underscore the need to optimize drug delivery strategies by fine-tuning MB composition and US parameters to control drug release kinetics and achieve the best tumoricidal outcomes.
超声(US)触发载药微泡(MBs)的空化作用是一种很有前景的靶向给药方法,通过精确控制药物释放剂量和形式可获得显著益处。本研究调查了载喜树碱微泡(CPT-MBs)和载多柔比星微泡(DOX-MBs),重点关注亲水性、疏水性和带电官能团等性质如何影响它们与微泡脂质表面的相互作用,从而影响载药微泡的基本特性和声学特性。与DOX-MBs相比,CPT-MBs显示出更大的微泡尺寸(分别为2.2±0.3和1.4±0.1μm),载药量增加了2倍,在37℃下2小时后泄漏减少了18%。在1MHz超声、100ms脉冲重复间隔(PRI)、1000个周期、5分钟持续时间和550kPa声压下,CPT-MBs发生惯性空化,而DOX-MBs发生稳定空化。使用动态光散射、纳米可视技术、冷冻电子显微镜和密度梯度超速离心法分析了在超声诱导空化作用下从这些微泡中释放的药物颗粒。结果表明,CPT-MBs主要释放游离CPT,而DOX-MBs释放多层DOX-脂质聚集体。这两种类型的微泡在超声触发空化作用下对C6细胞的细胞毒性也有所不同。DOX-脂质聚集体延迟了初始摄取,与CPT-MBs中游离CPT的快速释放相比,导致短期(2小时)效应不那么明显。这些发现强调了通过微调微泡组成和超声参数来优化给药策略以控制药物释放动力学并实现最佳杀瘤效果的必要性。
