Understanding Trigger Linkage Dynamics in Energetic Materials Using Mixed Picramide Nitrate Ester Explosives.

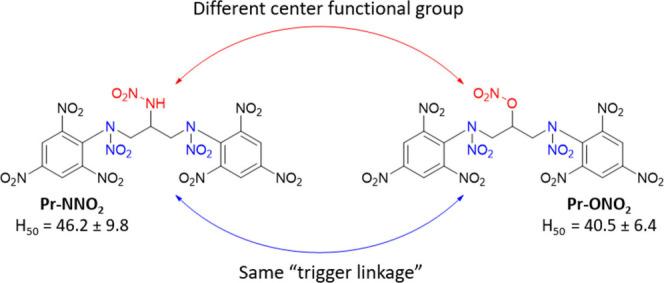

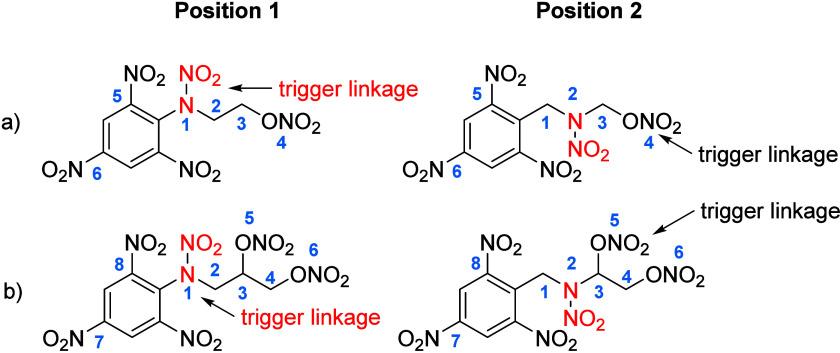

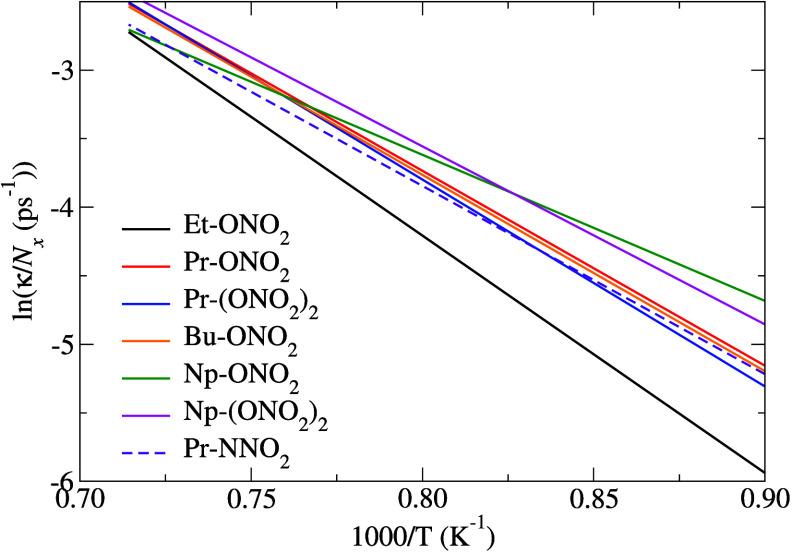

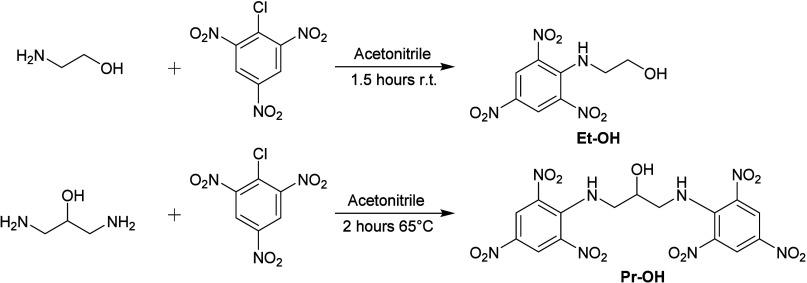

The ability to predict the handling sensitivity of new organic energetic materials has been a longstanding goal. We report the synthesis and characterization of six new nitropicramide energetic materials with mixed functional groups that mimic known explosives such as nitroglycerin, erythritol tetranitrate (ETN), and pentaerythritol tetranitrate (PETN). The molecules have been studied theoretically using quantum molecular dynamics (QMD) simulations and density functional theory (DFT) calculations to identify the weakest bond in the reactants - the trigger-linkages - which control handling sensitivity, and to quantify their specific enthalpies of explosion. In good accord with the drop weight impact sensitivity data, our calculations predict that the sensitivities of the molecules are very similar owing to the small variations of the energy output and rates of trigger linkage rupture. In addition, both the QMD and DFT calculations point to the nitropicramide N-NO bonds as the trigger linkages rather than the more typical O-NO bonds. We propose that the switch of the trigger linkage from the nitrate esters to the nitramine groups arises from the strongly electron withdrawing character of the adjacent trinitrobenzene groups.
