Modulation of CRISPR-Cas9 Cleavage with an Oligo-Ribonucleoprotein Design.

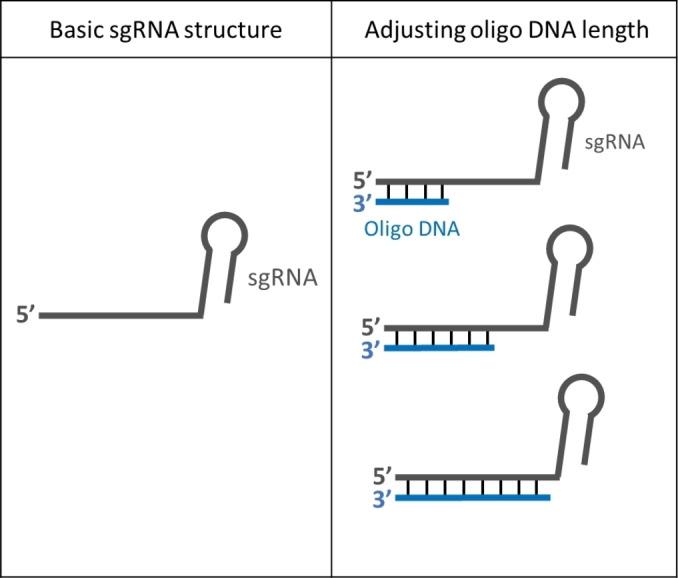

Clustered regularly interspaced short palindromic repeats (CRISPR) associated protein Cas9 system has been widely used for genome editing. However, the editing or cleavage specificity of CRISPR Cas9 remains a major concern due to the off-target effects. The existing approaches to control or modulate CRISPR Cas9 cleavage include engineering Cas9 protein and development of anti-CRISPR proteins. There are also attempts on direct modification of sgRNA, for example, structural modification via truncation or hairpin design, or chemical modification on sgRNA such as partially replacing RNA with DNA. The above-mentioned strategies rely on extensive protein engineering and direct chemical or structural modification of sgRNA. In this study, we proposed an indirect method to modulate CRISPR Cas9 cleavage without modification on Cas9 protein or sgRNA. An oligonucleotide was used to form an RNA-DNA hybrid structure with the sgRNA spacer, creating steric hindrance during the Cas9 mediated DNA cleavage process. We first introduced a simple and robust method to assemble the oligo-ribonucleoprotein (oligo-RNP). Next, the cleavage efficiency of the assembled oligo-RNP was examined using different oligo lengths in vitro. Lastly, we showed that the oligo-RNP directly delivered into cells could also modulate Cas9 activity inside cells using three model gene targets with reduced off-target effects.
