INTRODUCTION

Transcranial pulse stimulation (TPS) is increasingly being investigated as a promising potential treatment for Alzheimer's disease (AD). Although the safety and preliminary clinical efficacy of TPS short pulses have been supported by neuropsychological scores in treated AD patients, its fundamental mechanisms are uncharted.

METHODS

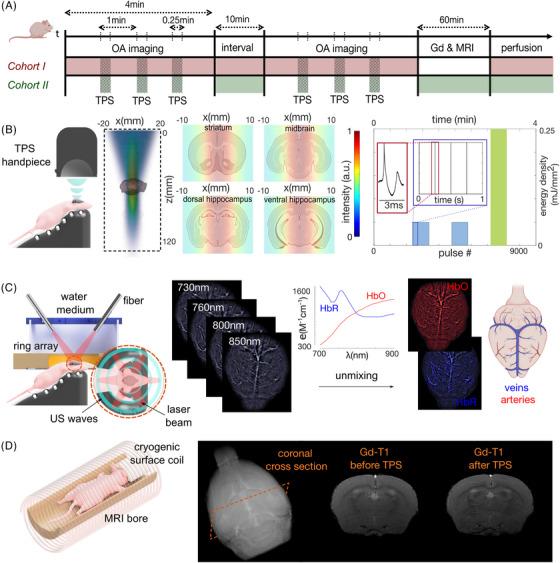

Herein, we used a multi-modal preclinical imaging platform combining real-time volumetric optoacoustic tomography, contrast-enhanced magnetic resonance imaging, and ex vivo immunofluorescence to comprehensively analyze structural and hemodynamic effects induced by TPS. Cohorts of healthy and AD transgenic mice were imaged during and after TPS exposure at various per-pulse energy levels.

RESULTS

TPS enhanced the microvascular network, whereas the blood-brain barrier remained intact following the procedure. Notably, higher pulse energies were necessary to induce hemodynamic changes in AD mice, arguably due to their impacted vessels.

DISCUSSION

These findings shed light on cerebrovascular dynamics induced by TPS treatment, and hence are expected to assist improving safety and therapeutic outcomes.

HIGHLIGHTS

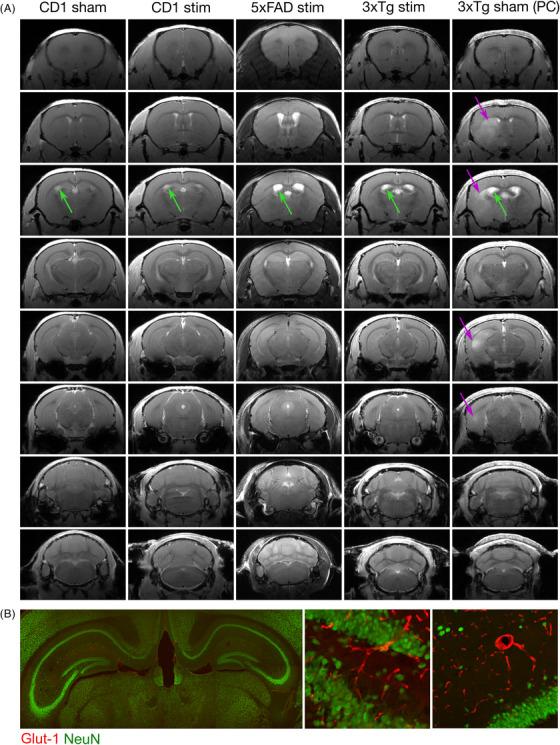

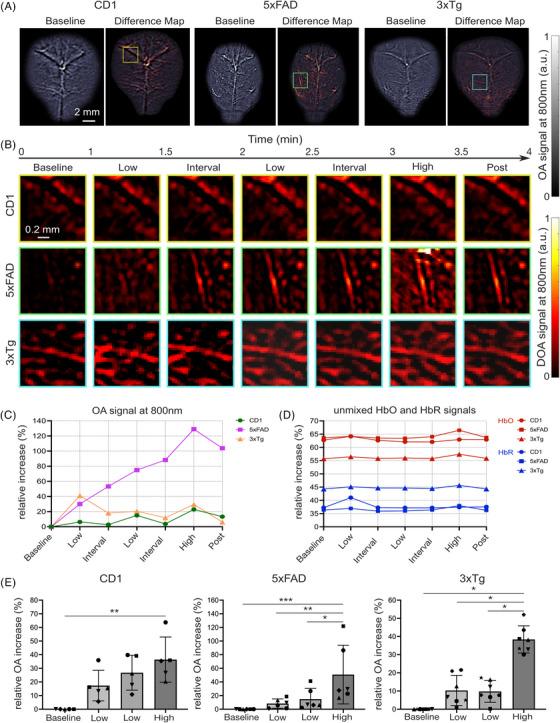

·Transcranial pulse stimulation (TPS) facilitates transcranial wave propagation using short pulses to avoid tissue heating. ·Preclinical multi-modal imaging combines real-time volumetric optoacoustic (OA) tomography, contrast-enhanced magnetic resonance imaging (CE-MRI), and ex vivo immunofluorescence to comprehensively analyze structural and hemodynamic effects induced by TPS. ·Blood volume enhancement in microvascular networks was reproducibly observed with real-time OA imaging during TPS stimulation. ·CE-MRI and gross pathology further confirmed that the brain architecture was maintained intact without blood-brain barrier (BBB) opening after TPS exposure, thus validating the safety of the procedure. ·Higher pulse energies were necessary to induce hemodynamic changes in AD compared to wild-type animals, arguably due to their pathological vessels.
