Deposition Characteristics of Air-Assisted Sprayer Based on Canopy Volume and Leaf Area of Orchard Trees.

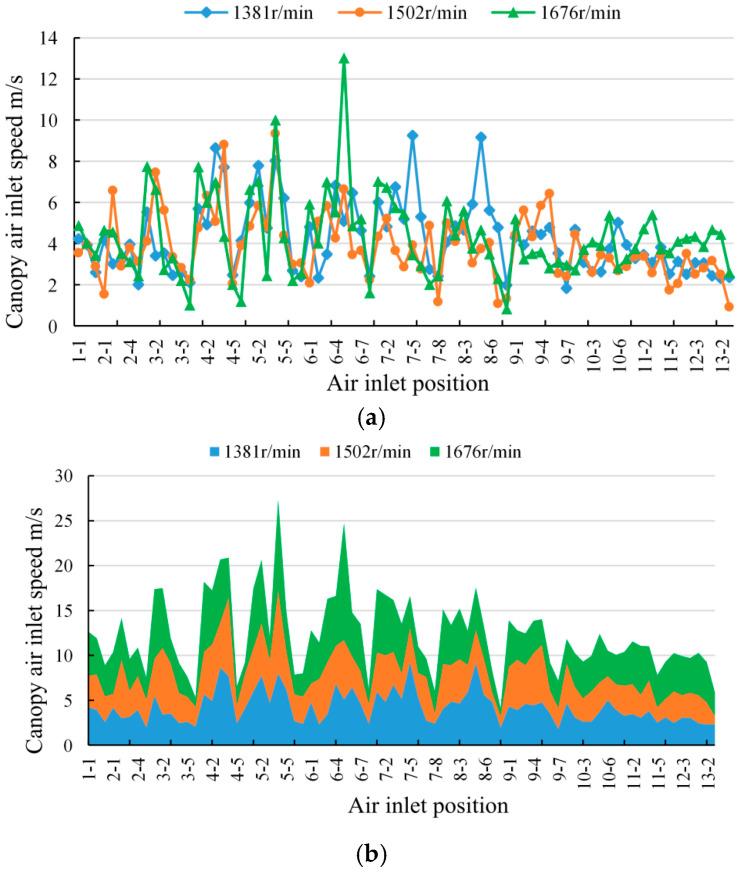

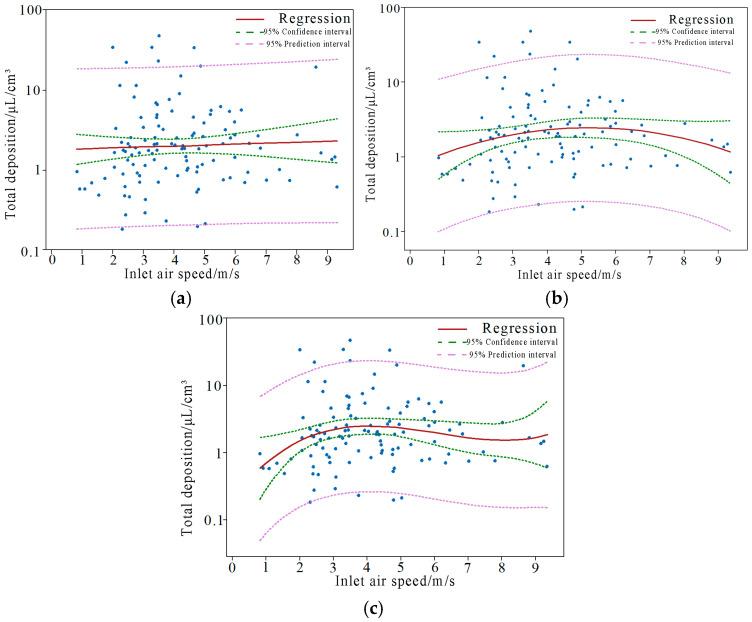

Precision pesticide application mainly relies on canopy volume, resulting in varied application effectiveness across different density areas of orchard trees. This study examined pesticide application effectiveness based on the spray wind, canopy volume, and leaf area within the canopy, providing variable bases for precise regulation of spray wind and pesticide dosage. The study addresses the knowledge gap by utilizing laser detection and ranging (LiDAR) to measure the thickness and leaf area of orchard tree canopies. The spray experiments were conducted on canopies of different regions, using an air-assisted sprayer with varying fan speeds of 1381 r/min, 1502 r/min, and 1676 r/min. The deposition effects were analyzed using water-sensitive papers. The inlet air speed within the canopy did not increase proportionally when the spray fan speed increased, and it showed a significant variation in locations with sparse foliage. Furthermore, droplets exhibited abnormal median volume diameters of the canopy regions with lower wind loss rates and smaller leaf areas. The influences were in the order of canopy thickness, leaf area, and inlet air speed on the cumulative deposition of droplets on both sides of the water-sensitive papers, as well as the ratio of deposition between the two sides, from big to small, are inlet air speed, leaf area, and canopy thickness. The study provides a scientific foundation for air control in precision pesticide application in apple orchards and contributes to the rapid development of precision spraying technologies.
