Remeš Zdeněk, Stuchlík Jiří, Kupčík Jaroslav, Babčenko Oleg
FZU-Institute of Physics of the Czech Academy of Sciences, Na Slovance 1999/2, 182 00 Prague, Czech Republic.
Nanomaterials (Basel). 2025 Jan 23;15(3):176. doi: 10.3390/nano15030176.

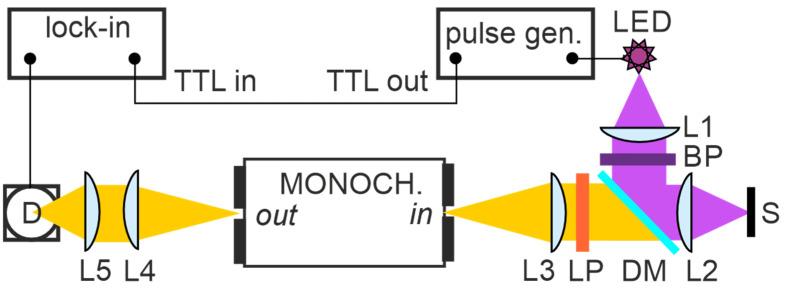

The in situ combination of plasma-enhanced chemical vapor deposition (PECVD) and vacuum evaporation in the same vacuum chamber allowed us to integrate germanium nanocrystals (Ge NCs) into hydrogenated amorphous silicon carbide (a-SiC:H) thin films deposited from monomethyl silane diluted with hydrogen. Transmission electron microscopy (TEM) and energy-dispersive X-ray (EDX) spectroscopy were used for the microscopic characterization, while photothermal deflection spectroscopy (PDS) and near-infrared photoluminescence spectroscopy (NIR PL) were for optical characterization. The presence of Ge NCs embedded in the amorphous a-Si:C:H thin films was confirmed by TEM and EDX. The embedded Ge NCs increased optical absorption in the NIR spectral region. The quenching of a-SiC:H NIR PL due to the presence of Ge indicates that the diffusion length of free charge carriers in a-SiC:H is in the range of a few tens of nm, an order of magnitude less than in a-Si:H. The optical properties of a-SiC:H films were degraded after vacuum annealing at 550 °C.
在同一真空腔室中,通过等离子体增强化学气相沉积(PECVD)与真空蒸发的原位结合,我们能够将锗纳米晶体(Ge NCs)集成到由氢气稀释的一甲基硅烷沉积而成的氢化非晶碳化硅(a-SiC:H)薄膜中。透射电子显微镜(TEM)和能量色散X射线(EDX)光谱用于微观表征,而光热偏转光谱(PDS)和近红外光致发光光谱(NIR PL)用于光学表征。TEM和EDX证实了非晶a-Si:C:H薄膜中嵌入了Ge NCs。嵌入的Ge NCs增加了近红外光谱区域的光吸收。由于Ge的存在导致a-SiC:H近红外光致发光猝灭,这表明a-SiC:H中自由电荷载流子的扩散长度在几十纳米范围内,比a-Si:H中的扩散长度小一个数量级。在550°C下进行真空退火后,a-SiC:H薄膜的光学性能下降。
