The accuracy of digital impression with different intraoral scanners on maxillary all on four implants: an in vitro study.

OBJECTIVES

This study aimed to evaluate the effect of 30° angulation of (All-on-four) implants on the accuracy of digital impressions using different intra-oral scanners in the maxillary edentulous arch in terms of trueness and precision.

MATERIALS AND METHODS

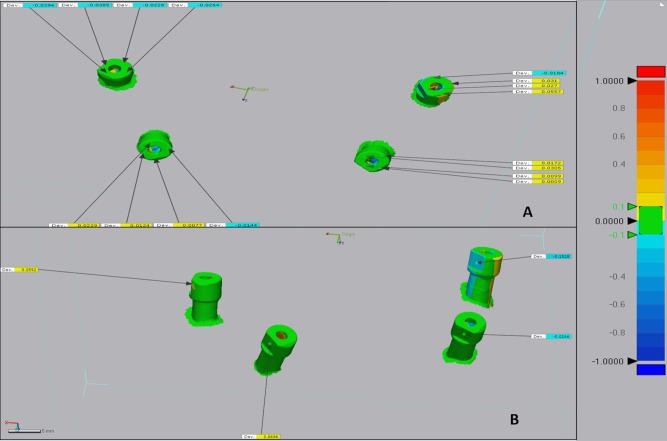

A maxillary completely edentulous model was 3D printed with four-cylinder holes measuring 4.3*10 mm, creating space for implant analogs at the canines and second premolar areas. The two anterior implants were placed parallel to each other with 0-degree angulation at the site of the canines, while the two posterior implants were placed at the site of the second premolars with 30° distal angulations. Four peek scan bodies were screwed to analogs. The model is scanned using an EOS X5 desktop scanner and set as a reference model. Afterward, three groups of intraoral scanners group 1 (Trios3shape), group 2 (Medit I700), and group 3 (Launca DL-202) were used to scan the model. Seven scans of the model were performed for each scanner following the manufacturer protocol. The trueness and precision of each intraoral scanner were virtually tested using the Gemoagic Control X software program.

RESULTS

Regarding trueness, there was a statistically significant deviation between the three intraoral scanners recording 38, 44, and 229 μm for the Trios, Medit I-700, and Launca scanners, respectively, while there was no statistically significant difference in precision between the Trios and Medit I700 scanners.

CONCLUSIONS

The Trios scanner was the most accurate regarding trueness and precision for recording the maxillary full arch implants, followed by the Medit I-700, and the Launca scanner due to the ability of the Trios scanner to scan the posterior angulated implants as accurately as the anterior straight ones. Also, the scanner technology separately doesn't affect scanning accuracy, but other factors should be taken into consideration such as scanner design and scanner head size.

CLINICAL RELEVANCE

The type of intraoral scanner used in full arch cases greatly affects the accuracy of digital impressions, which may affect the fit of future prostheses, so the operator should carefully choose the proper optical scanner.
