Enhancing Thrust in Underwater Bio-Inspired Propulsion Fin Using Shear-Stiffening Gel.

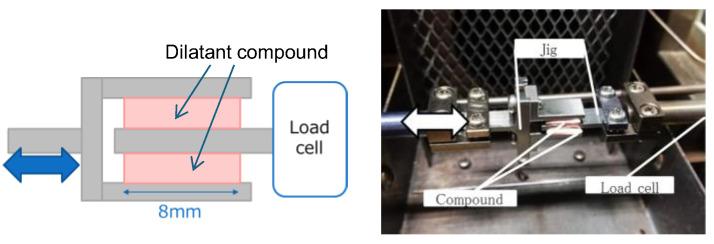

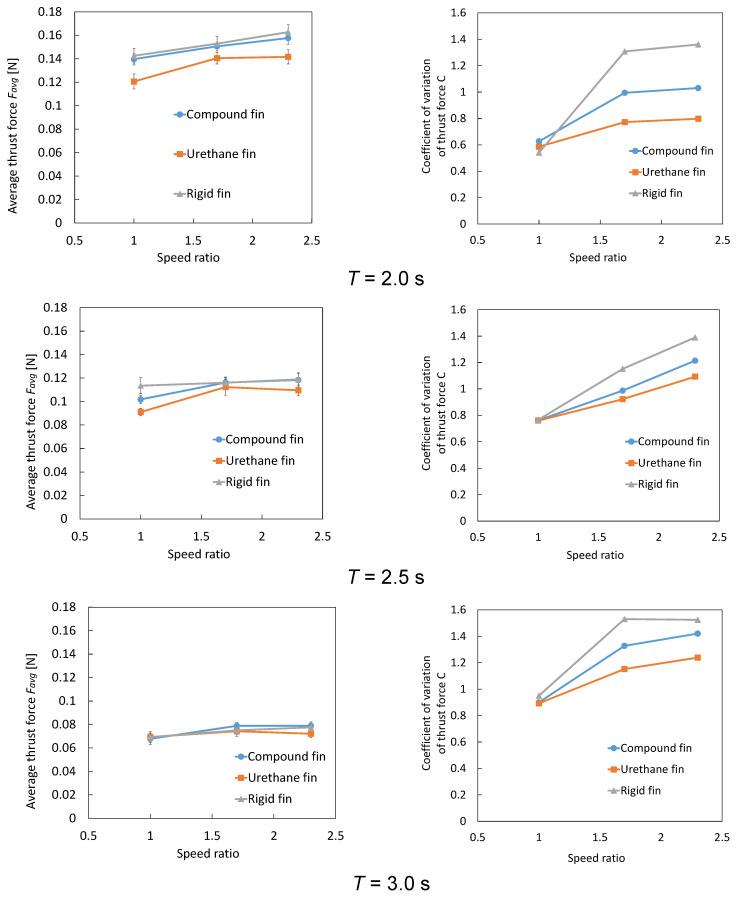

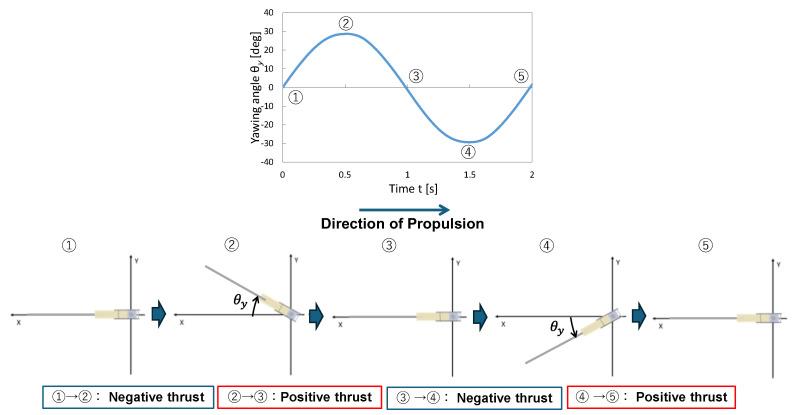

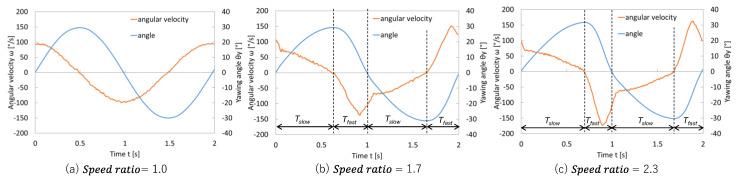

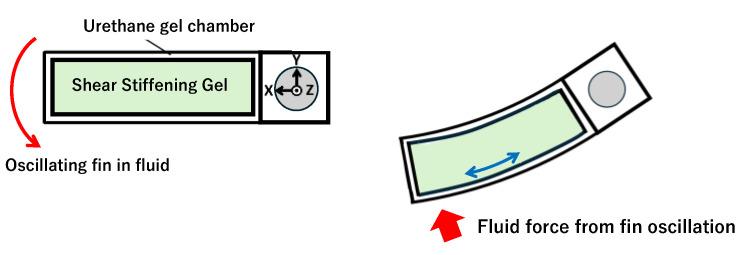

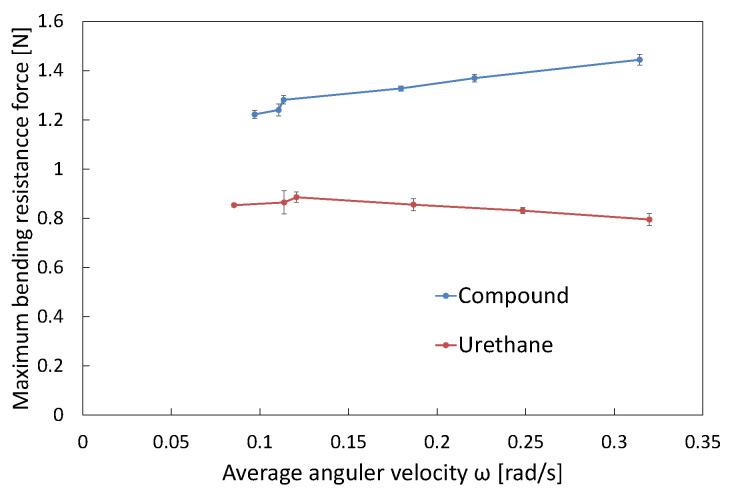

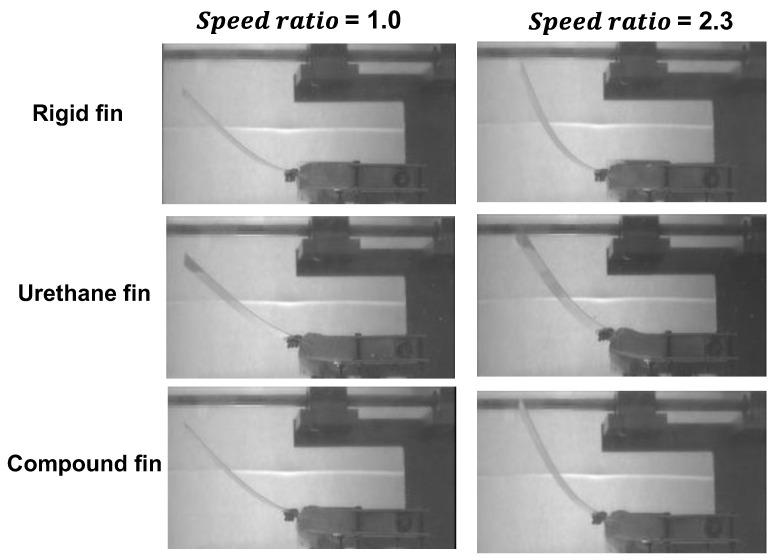

In this study, we investigated the thrust enhancement in a bio-inspired underwater propulsion fin using a shear-stiffening gel. Shear-stiffening gels exhibit velocity-dependent stiffness, i.e., they become stiffer during high-speed deformation and softer during low-speed motion, providing adaptive mechanical properties without requiring complex mechanisms. A "compound joint" incorporating a dilatant compound, a material of shear-stiffening gel, was developed and experimentally evaluated against a "rigid joint" and a flexible "urethane joint". A speed-ratio control strategy was employed to assign faster and slower oscillations during positive and negative thrust intervals, respectively. The results demonstrated that the compound joint achieved a balance between high thrust and stable performance. Its adaptive stiffness effectively reduced deformation during high-speed oscillations, enhanced thrust while maintaining flexibility during low-speed intervals, and minimized thrust fluctuations. Compared with the rigid and urethane joints, the compound joint exhibited a superior balance between a high average thrust and low thrust variation.
