Study on Shear Resistance of Aluminum Alloy Joints Enhanced by Surface Geometry.

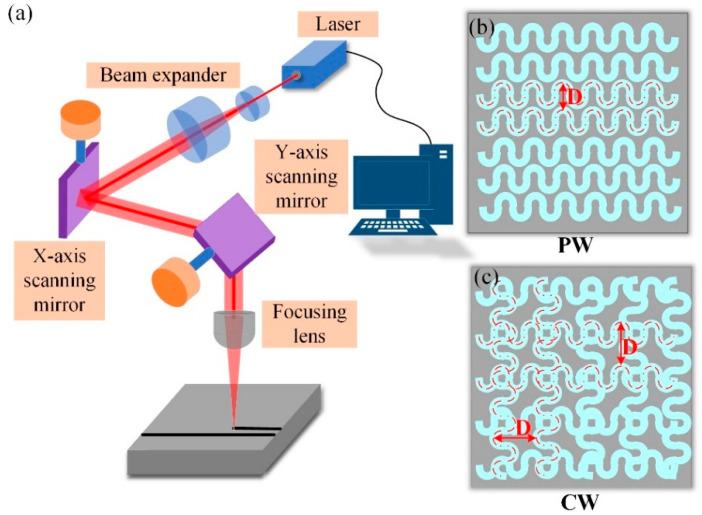

To improve the shear strength of the 2A12 aluminum alloy adhesive-bonded joint, two kinds of surface micropatterns, parallel and cross waves, were constructed on the surface of aluminum alloy by a laser engraving machine. The shear strength of two different surface micropatterns at different laser processing distances was investigated. The results show that the surface of the aluminum alloy with a surface micropattern shows excellent hydrophilicity, which is beneficial to forming a mechanical interlock between the adhesive and aluminum alloy. The shear strength of the bonded joint decreases with the increase in laser processing distances for the parallel wavy micropattern. When the laser processing distance is 0.5 mm, the shear strength reaches a maximum of 14.04 MPa. For the cross-wave micropattern, the shear strength of the bonded joint increases first and then decreases with the increase in laser processing distances. When the laser processing distance is 0.75 mm, the shear strength reaches a maximum of 13.74 MPa. The obtained data are important for adhesive aluminum alloys with different surface micropatterns.
