Study of Novel Geopolymer Concrete Prepared with Slate Stone Cutting Sludge, Chamotte, Steel Slag and Activated with Olive Stone Bottom Ash.

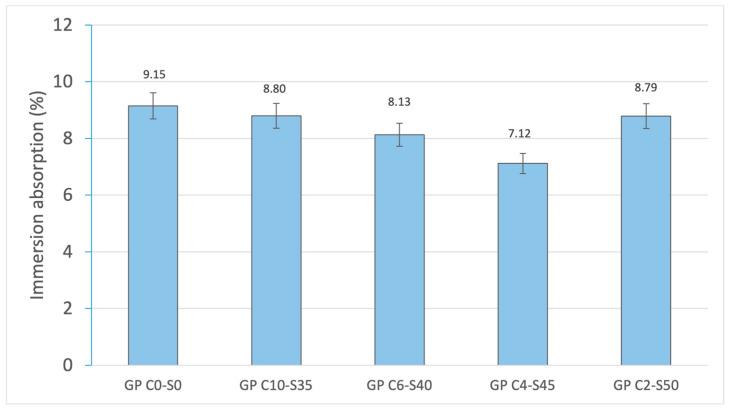

The expansion of the construction sector has contributed to the depletion of raw materials and an increased demand for resources; therefore, sustainable approaches are required to satisfy the construction demand. The present study explores the development of geopolymers by utilizing industrial by-products from mining, ceramics, olive oil production, and steel manufacturing. Specifically, slate stone cutting sludge (SSCS) and chamotte (CH) are used as aluminosilicate precursors, with olive biomass bottom ash (OSBA) acting as an alkaline activator, along with sodium silicate, and steel granulated slag (SGS) incorporated as an aggregate. Novel geopolymers were prepared with consistent proportions of SSCS and OSBA while varying the CH content from 10 to 2 wt.%. The SGS proportion was adjusted from 35 to 50 wt.%, and different NaSiO/OSBA ratios (0.35, 0.31, 0.19, and 0.08) were examined. To identify the optimal mix, a series of physical and mechanical tests was conducted, complemented by FTIR and SEM analysis to evaluate the chemical and microstructural changes. The best-performing formulation achieved a compressive strength of 42.8 MPa after 28 days of curing. FTIR analysis identified quartz and carbonate phases, suggesting that quartz did not fully dissolve and that carbonates formed during the heating process. SEM examination of the optimal mixture indicated that the incorporation of SGS (up to 45 wt.%) facilitated the creation of a compact, low-porosity structure. EDX results revealed the presence of Ca-, Na-, Si-, Al-, and K-enriched phases, supporting the formation of (N, C)-A-S-H gel networks. These results demonstrate the potential of utilizing SSCS, CH, OSBA, and SGS to create geopolymer concretes, showcasing the viability of using industrial by-products as eco-friendly substitutes for traditional construction materials.
