BACKGROUND

Fat suppression plays a vital role in numerous magnetic resonance imaging (MRI) examinations, particularly in the musculoskeletal (MSK) system. However, current fat suppression methods are not fully optimized for ultrashort echo time (UTE) imaging, despite being essential for many advanced UTE-based imaging applications. This study aimed to investigate a novel fat suppression technique for UTE MRI using a single-point Dixon (1p-Dixon) approach through phase modeling.

METHODS

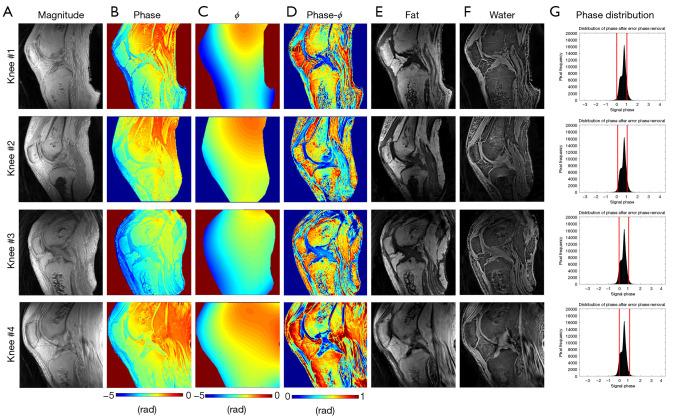

In this study, four cadaveric human knee joints, and six healthy volunteers were included. A 1p-Dixon-based fat suppression method was developed, which utilizes intrinsic information from complex UTE signals. Additionally, a data-driven approach based on the phase distribution was used for the decomposition of water and fat signals in short T2 tissues. The feasibility of the proposed method was evaluated in a fat-water phantom first and validated in and human knee joints. The patella tendon, cartilage, posterior cruciate ligament (PCL), anterior cruciate ligament (ACL), and meniscus were evaluated in each knee.

RESULTS

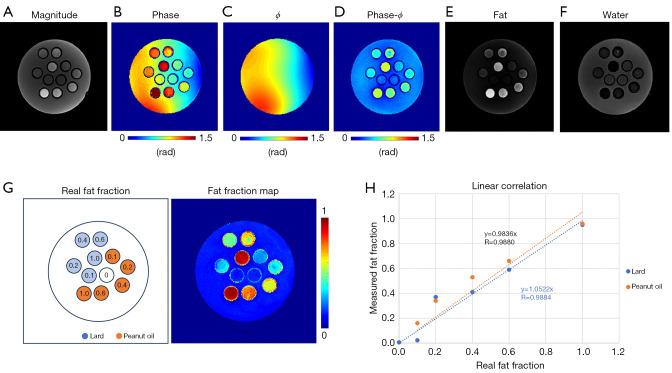

In the phantom experiment, there was a significant correlation between the estimated fat fraction and the actual fat fraction (R>0.98; P<0.05). The experiment revealed a significant difference in contrast-to-noise ratios (CNRs) measured from the two images without and with 1p-Dixon (P<0.001). The CNR values ranged from 3.4±0.5 to 9.6±5.0 and 1.8±1.6 to 4.1±0.8 for measurement with and without 1p-Dixon, respectively. The 1p-Dixon significantly improved the contrast in the experiment (P<0.0001). The CNR values ranged from 5.1±6.0 to 41.0±9.7 and 2.7±1.2 to 15.4±3.3 for measurement with and without 1p-Dixon, respectively in the experiment.

CONCLUSIONS

Our novel fat suppression technique has been shown to provide a fast, time-saving, and robust fat suppression for UTE imaging without the need for additional scans.
