通过在微/纳米结构钛表面预加载离子触发的 Sr/Zn 磷酸盐转化膜的结构优化,用于控制细菌感染和增强骨生成。

Structural optimization of Sr/Zn-phosphate conversion coatings triggered by ions preloading on micro/nanostructured titanium surfaces for bacterial infection control and enhanced osteogenesis.

作者信息

Zuo Kangqing, Li Aonan, Si Taoning, Lei Weiyi, Liu Yusheng, Zhang Linbo, Zhang Taixing, Xiao Guiyong, Lu Yupeng, Li Ningbo

机构信息

Department of Stomatology, Shandong Provincial Hospital Affiliated to Shandong First Medical University, Ji'nan, 250021, Shandong Province, P. R. China.

School of Stomatology, Shandong First Medical University & Shandong Academy of Medical Sciences, Ji'nan, 250117, Shandong Province, P. R. China.

出版信息

J Nanobiotechnology. 2025 May 19;23(1):361. doi: 10.1186/s12951-025-03443-6.

Abstract

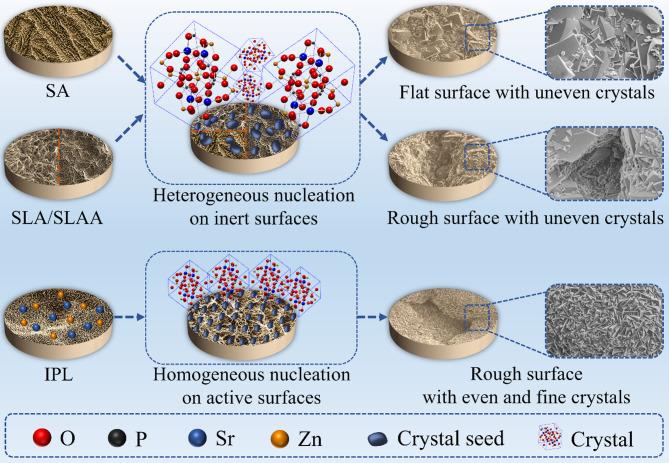

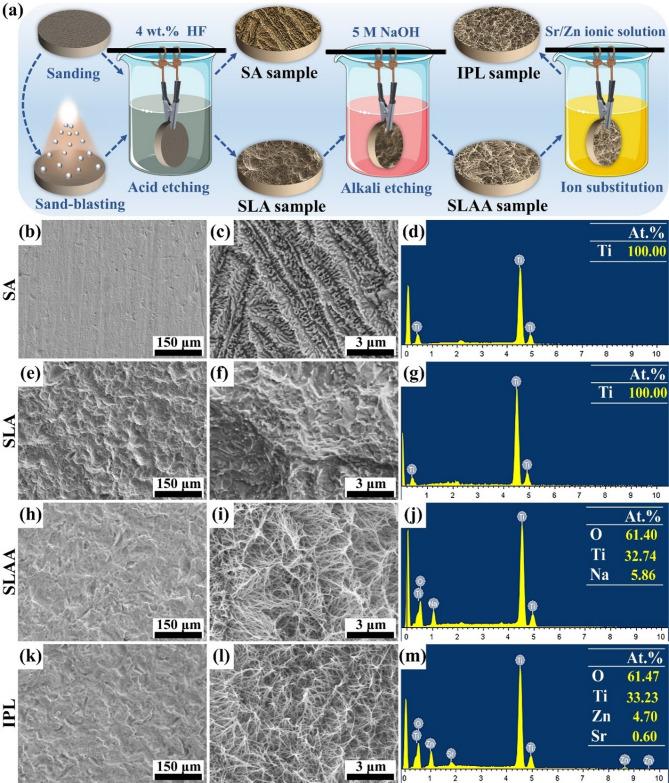

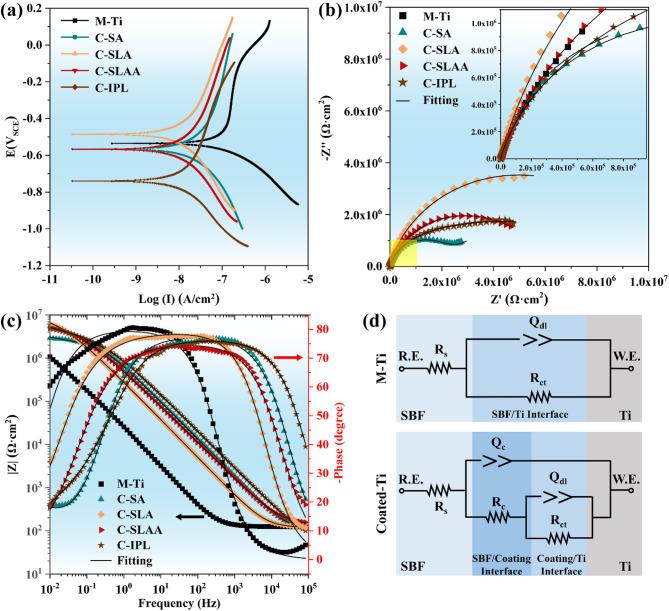

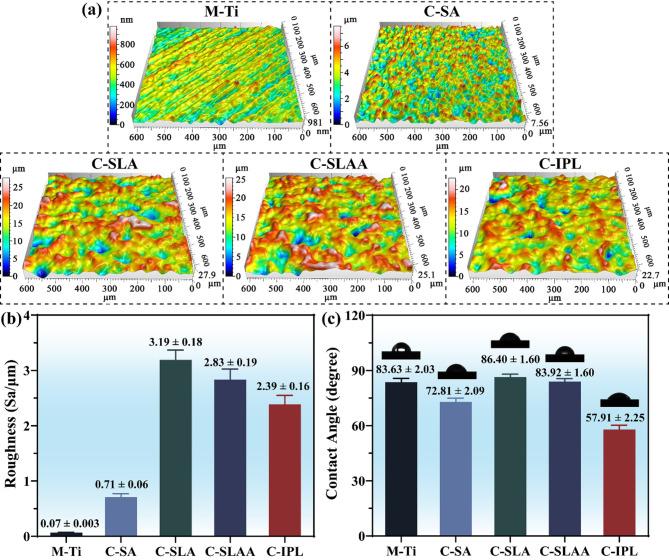

Phosphate conversion coatings on metallic implants can synergistically integrate functional components and structural regulation, offering excellent biocompatibility and osteogenic activity. However, the passive oxide layer on the titanium (Ti) surface impedes the following chemical reactivity, adversely affecting the microstructure and properties of phosphate coatings. This study proposes a strategy for achieving structural optimization and properties enhancement of strontium-zinc phosphate (SrZnP) conversion coatings on Ti via regulating interface chemical reaction between coatings and Ti substrates. The results indicated that Sr and Zn ions-preloading (IPL) treatment enhanced the interfacial reactivity, which can further achieve crystal refinement and uniform crystal size in nucleation. In contrast, microstructural modifications on Ti substrates induced by acid etching, sandblasting, and alkali etching had minimal effects on the phase composition and crystal morphology (irregular cubic) of the SrZnP coatings. The coatings on IPL-Ti exhibited better mechanical properties and corrosion resistance. Besides, the coatings with optimized structures and surface characteristics elicited bacterial growth inhibition rates of 91.09% and 84.04% against Staphylococcus aureus (S. aureus) and Escherichia coli (E. coli), respectively. Meanwhile, the crystal-refined coatings further significantly enhanced the adhesion, proliferation, and differentiation of bone marrow mesenchymal stem cells (BMSCs), proving anticipated osteogenic activity. Overall, the ions preloading strategy on variable micro/nanostructured Ti substrates facilitates the potential application of Sr/Zn-phosphate conversion coatings for repairing infected bone defects.

摘要

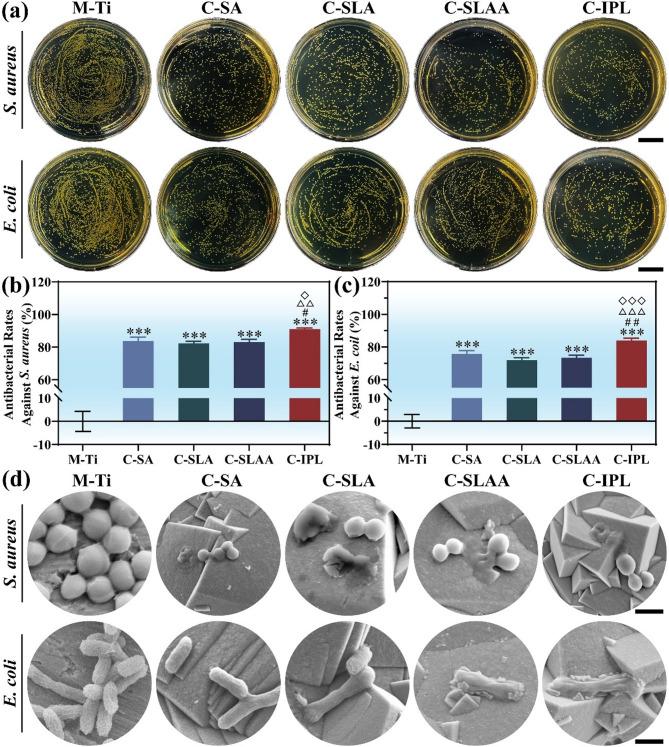

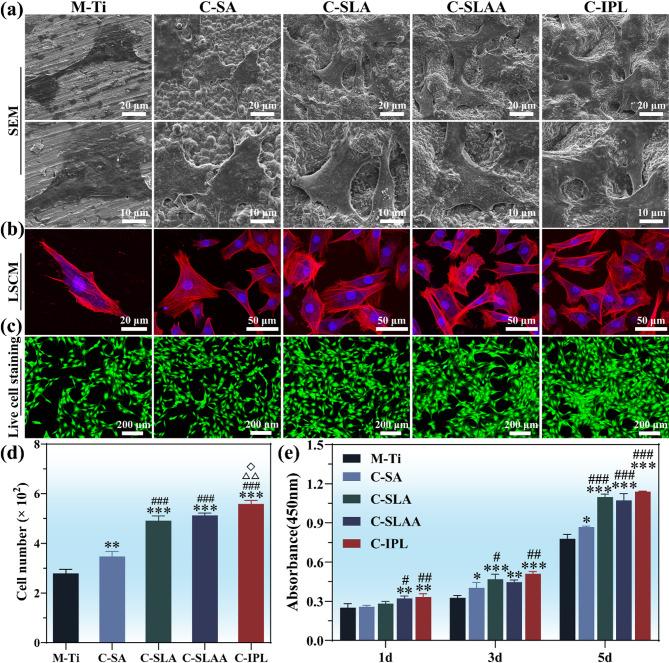

金属植入物上的磷酸盐转化涂层可以协同整合功能成分和结构调节,具有优异的生物相容性和成骨活性。然而,钛(Ti)表面的钝化氧化层会阻碍后续的化学反应,对磷酸盐涂层的微观结构和性能产生不利影响。本研究提出了一种通过调节涂层与Ti基底之间的界面化学反应来实现Ti上磷酸锶锌(SrZnP)转化涂层结构优化和性能增强的策略。结果表明,Sr和Zn离子预加载(IPL)处理增强了界面反应性,这可以进一步在成核过程中实现晶体细化和均匀的晶体尺寸。相比之下,酸蚀、喷砂和碱蚀对Ti基底进行的微观结构改性对SrZnP涂层的相组成和晶体形态(不规则立方)影响最小。IPL-Ti上的涂层表现出更好的力学性能和耐腐蚀性。此外,具有优化结构和表面特性的涂层对金黄色葡萄球菌(S. aureus)和大肠杆菌(E. coli)的抑菌率分别为91.09%和84.04%。同时,晶体细化的涂层进一步显著增强了骨髓间充质干细胞(BMSCs)的黏附、增殖和分化,证明了预期的成骨活性。总体而言,在可变微/纳米结构Ti基底上的离子预加载策略有助于Sr/Zn-磷酸盐转化涂层在修复感染性骨缺损方面的潜在应用。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/66fb/12087176/81aab69e6b45/12951_2025_3443_Fig1_HTML.jpg
