Li Ailin, He Mantang, Zheng Maorong, Liu Han, Liu Ye, Liu Huijie, Yu Jianyong, Wang Liming, Qin Xiaohong
Key Laboratory of Textile Science & Technology, Ministry of Education, College of Textiles, Donghua University, Shanghai 201620, China.
Innovation Center for Textile Science and Technology, Donghua University, Shanghai 201620, China.
Fundam Res. 2023 Nov 18;5(3):1144-1152. doi: 10.1016/j.fmre.2023.09.006. eCollection 2025 May.

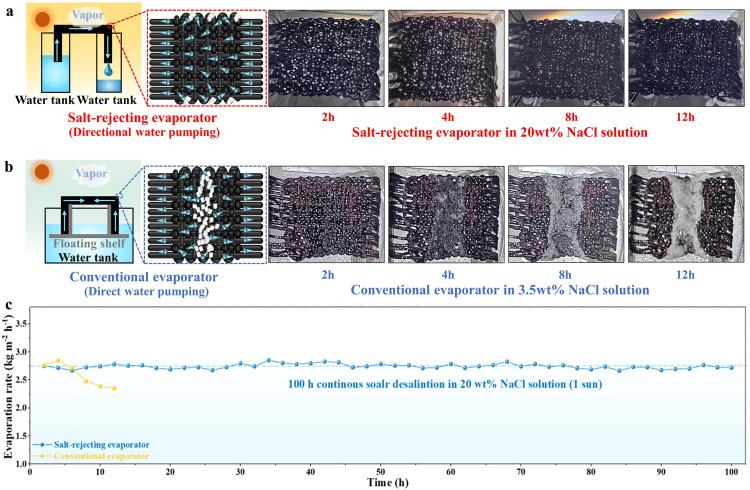

Solar-driven interfacial desalination has been considered a promising and green technology for relieving worldwide water shortage because of its zero carbon emission. However, salt accumulation during evaporation results in a significant reduction in solar evaporation performance and sustained service life. High-performance and long-term salt-rejecting solar evaporators are urgently desirable. Inspired by the rapid water transfer driven by leaf transpiration and the capillary pressure in woody plants, we developed electrospun polyacrylonitrile @carbon nanotubes nanofiber/cotton core-spun yarn (PCCS yarn) based solar evaporator enabled by the multi-branch microchannels and sub-microchannels for ultra-efficient and durable high-salinity brine desalination. The optimal PCCS yarn-based solar evaporator exhibits a record-high evaporation rate of 3.46 kg mh under one sun illumination among 2D evaporators. Meanwhile, an excellent and stable brine desalination rate of ∼2.75 kg m h for 100 h continuous solar irradiation is achieved even in 20wt% NaCl solution. The above results are attributed to the massive micro evaporation surfaces formed between nanofibers, rapid water replenishment in the radius direction, and orientational fast water transport by Laplace pressure along and across the PCCS yarn. In addition, the continuous preparation of the core-spun yarn by the conjugated electrospinning technology and the complete fabric production process in the textile industry make it possible for the practical application of the PCCS yarn-based solar evaporator. This work promotes the development of high-performance, long-term and scalable solar desalination devices.
太阳能驱动的界面脱盐因其零碳排放,被视为缓解全球水资源短缺的一项有前景的绿色技术。然而,蒸发过程中的盐分积累会导致太阳能蒸发性能显著下降以及使用寿命缩短。因此,迫切需要高性能且能长期拒盐的太阳能蒸发器。受叶片蒸腾作用驱动的快速水分传输以及木本植物中毛细管压力的启发,我们开发了一种基于静电纺聚丙烯腈@碳纳米管纳米纤维/棉包芯纱(PCCS纱)的太阳能蒸发器,其具有多分支微通道和亚微通道,可实现超高效且耐用的高盐度盐水脱盐。在二维蒸发器中,基于最优PCCS纱的太阳能蒸发器在一个太阳光照下展现出创纪录的3.46 kg m⁻² h⁻¹的蒸发速率。同时,即使在20wt%的NaCl溶液中,连续100小时的太阳照射下也能实现约2.75 kg m⁻² h⁻¹的优异且稳定的盐水脱盐速率。上述结果归因于纳米纤维之间形成的大量微蒸发表面、径向的快速水分补充以及拉普拉斯压力沿PCCS纱并横跨PCCS纱的定向快速水分传输。此外,通过共轭静电纺丝技术连续制备包芯纱以及纺织工业完整的织物生产过程,使得基于PCCS纱的太阳能蒸发器的实际应用成为可能。这项工作推动了高性能、长期且可扩展的太阳能脱盐装置的发展。
