Karczewski Jerzy, Potocka Izabela, De Tullio Mario C, Szymanowska-Pułka Joanna
Institute of Biology Biotechnology and Environmental Protection, University of Silesia in Katowice, Jagiellońska 28, 40-032 Katowice, Poland.
Dipartimento di Scienze della Terra e Geoambientali, Università degli Studi di Bari, Via Orabona 4, 70125 Bari, Italy.
Materials (Basel). 2025 Jun 12;18(12):2759. doi: 10.3390/ma18122759.

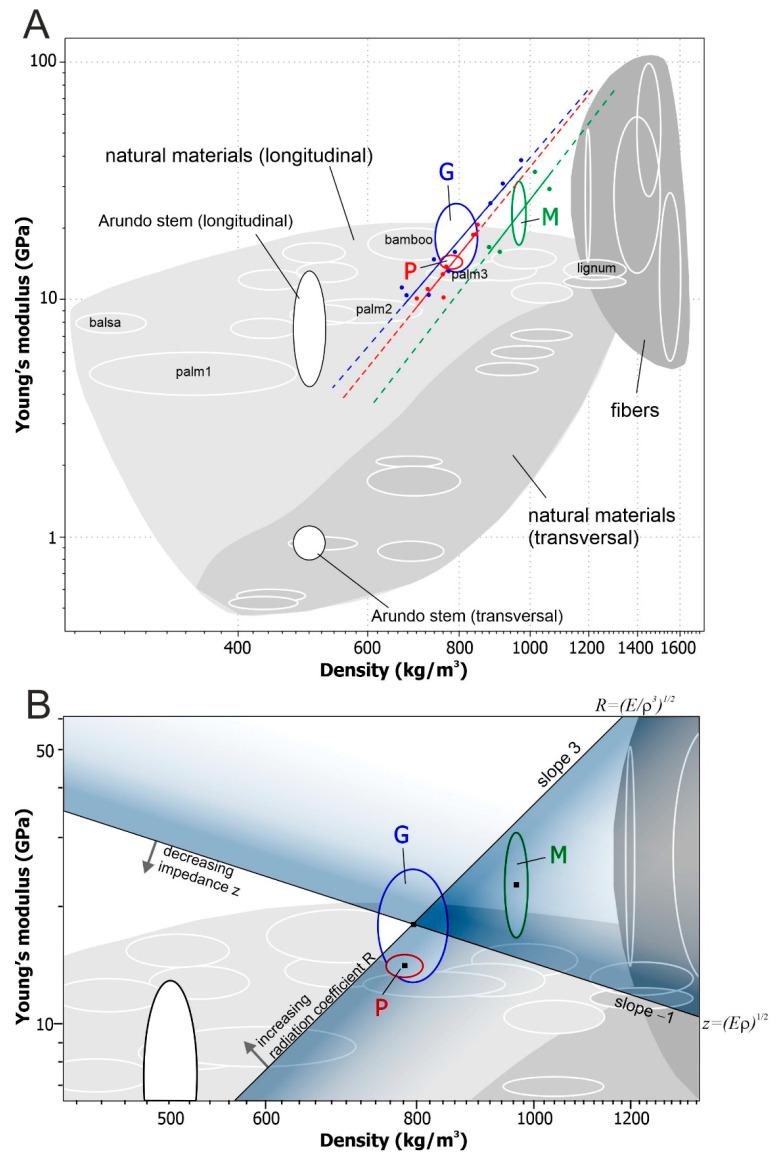

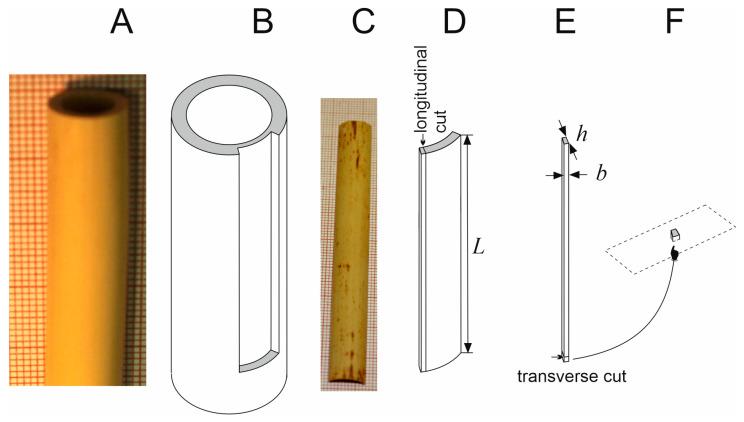

(L.) is a perennial monocot () native to Asia, which has spread throughout the Mediterranean region. Its hollow stem has been used for millennia to produce reeds, thin strips whose vibration is modulated by musical instruments such as oboes and saxophones. Significant differences in sound quality occur among reeds of different provenances, despite the extreme genetic homogeneity of , mainly due to its clonal mode of reproduction. Reed samples from three different provenances and different sound qualities were analyzed. Samples of dissected internodes of selected brands were examined to determine material density and mechanical properties along the stem radius. These characteristics vary between the brands and change with the sample thickness (along the radius of the stem) according to a power function. Next, Ashby graphs were used to compare the properties of reed samples with those of other natural materials. Using Ashby graphs potentially provides indications for producing musical reeds of the desired sound quality.
(L.)是一种原产于亚洲的多年生单子叶植物(),已遍布地中海地区。其空心茎数千年来一直被用于制作簧片,簧片是一种细条,其振动由双簧管和萨克斯管等乐器调节。尽管(L.)具有极端的遗传同质性,主要由于其克隆繁殖方式,不同产地的簧片在音质上仍存在显著差异。对来自三个不同产地、具有不同音质的簧片样本进行了分析。检查了选定品牌的解剖节间样本,以确定沿茎半径方向的材料密度和机械性能。这些特性因品牌而异,并根据幂函数随样本厚度(沿茎半径)变化。接下来,使用阿什比图将(L.)簧片样本的特性与其他天然材料的特性进行比较。使用阿什比图可能为生产具有所需音质的音乐簧片提供指示。
