Yang Fan, Yu Fang, Gong Hongren, Yang Liming, Zhou Qian, He Lihong, Wei Wanfeng, Chen Qiang
Guangxi Beibu Gulf Investment Group Co., Ltd., Nanning 530029, China.
National and Local Joint Engineering Research Center for Transportation Civil Engineering Materials, Chongqing Jiaotong University, Chongqing 400074, China.
Materials (Basel). 2025 Jun 16;18(12):2825. doi: 10.3390/ma18122825.

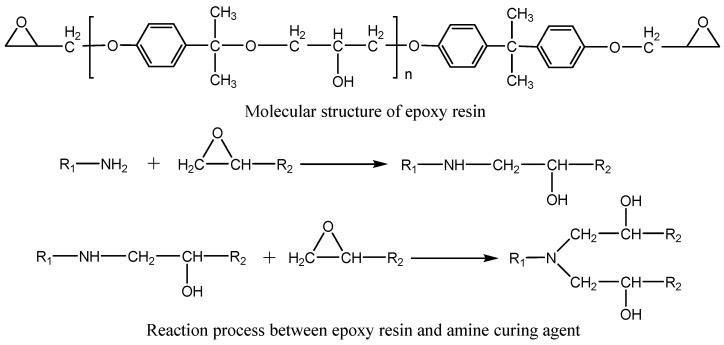

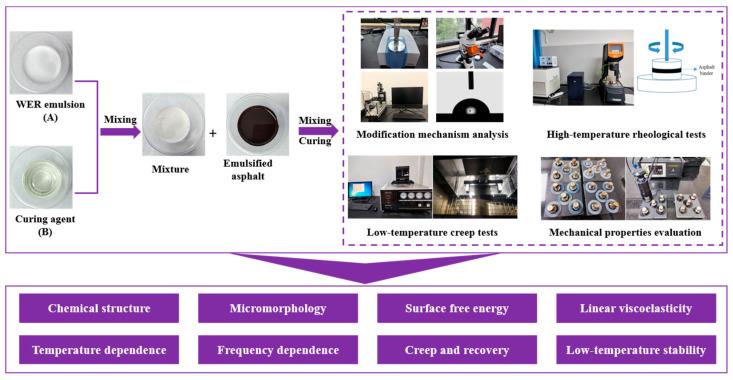

To address the deficiencies of traditional emulsified asphalt-pavement maintenance material in cohesive strength, high-temperature rutting resistance, as well as adhesion to aggregates, this study developed waterborne epoxy resin-modified emulsified asphalt (WEA) binders using a two-component waterborne epoxy resin (WER) and systematically investigated their modification mechanisms and pavement performance. The results indicated that WER emulsions and curing agents could polymerize to form epoxy resin within the emulsified asphalt dispersion medium, with the modification process dominated by physical interactions. When the WER content exceeded 12%, a continuous modifier network structure was established within the emulsified asphalt. The epoxy resin formed after curing could significantly increase the polarity component of the binder, thereby increasing the surface free energy. The linear viscoelastic range of the WEA binder exhibited a negative correlation with the dosage of the WER modifier. Notably, when the WER content exceeded 6%, the high-temperature stability (rutting resistance and elastic recovery performance) of the binder was significantly enhanced. Concurrently, stress sensitivity and frequency dependence gradually decrease, demonstrating superior thermomechanical stability. Furthermore, WER significantly enhanced the interfacial interaction and adhesion between the binder and aggregates. However, the incorporation of WER adversely affects the low-temperature cracking resistance of the binder, necessitating strict control over its dosage in practical applications.
为解决传统乳化沥青路面养护材料在粘结强度、高温抗车辙性能以及与集料的粘附性方面的不足,本研究采用双组分水性环氧树脂(WER)制备了水性环氧树脂改性乳化沥青(WEA)粘结剂,并系统研究了其改性机理和路面性能。结果表明,WER乳液和固化剂可在乳化沥青分散介质中聚合形成环氧树脂,改性过程以物理相互作用为主。当WER含量超过12%时,在乳化沥青中形成了连续的改性剂网络结构。固化后形成的环氧树脂可显著增加粘结剂的极性成分,从而提高表面自由能。WEA粘结剂的线性粘弹性范围与WER改性剂的用量呈负相关。值得注意的是,当WER含量超过6%时,粘结剂的高温稳定性(抗车辙性能和弹性恢复性能)显著提高。同时,应力敏感性和频率依赖性逐渐降低,表现出优异的热机械稳定性。此外,WER显著增强了粘结剂与集料之间的界面相互作用和粘附性。然而,WER的加入对粘结剂的低温抗裂性能有不利影响,在实际应用中需要严格控制其用量。
