Zhang Jilu, Zhou Xiaohan, Liu Xinrong, Fang Lei, Guo Xueyan, Chen Hao
School of Civil Engineering, Chongqing University, Chongqing, 400045, China.
National Joint Engineering Research Center of Geohazards Prevention in the Reservoir Areas (Chongqing), Chongqing, 400045, China.
Sci Rep. 2025 Jul 1;15(1):21896. doi: 10.1038/s41598-025-04068-3.

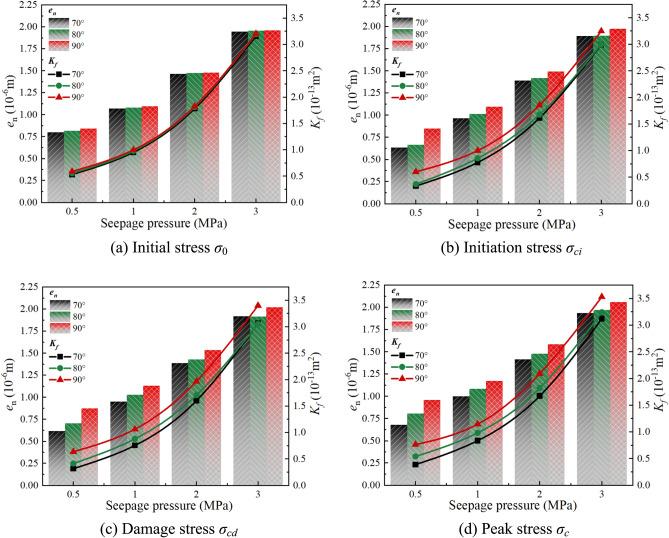

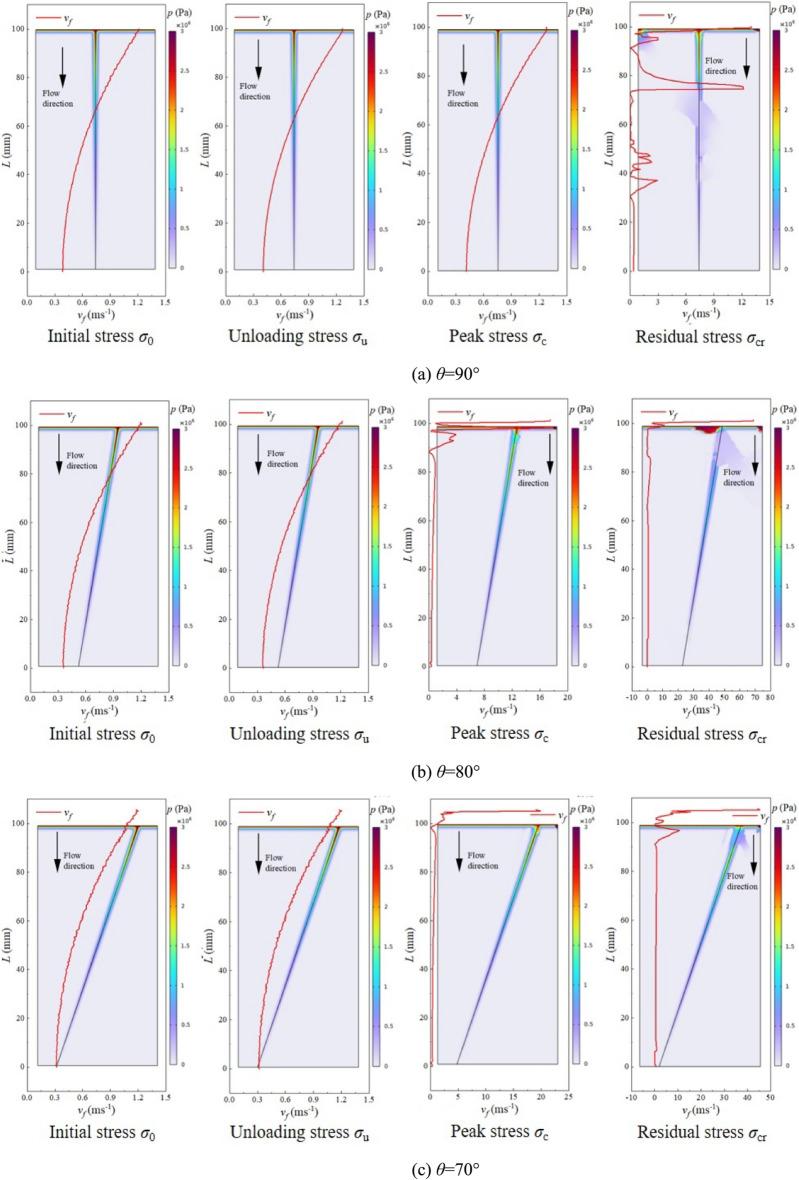

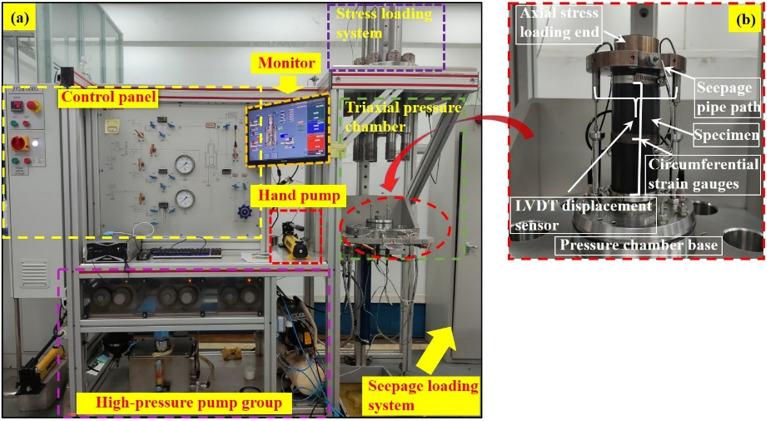

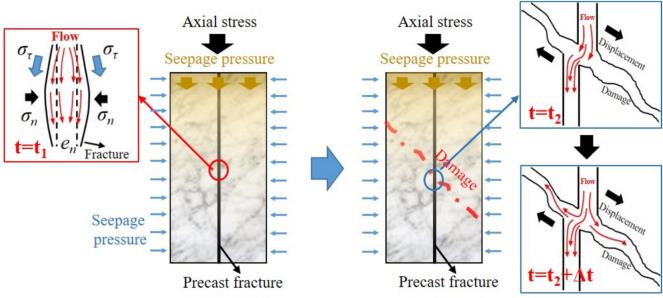

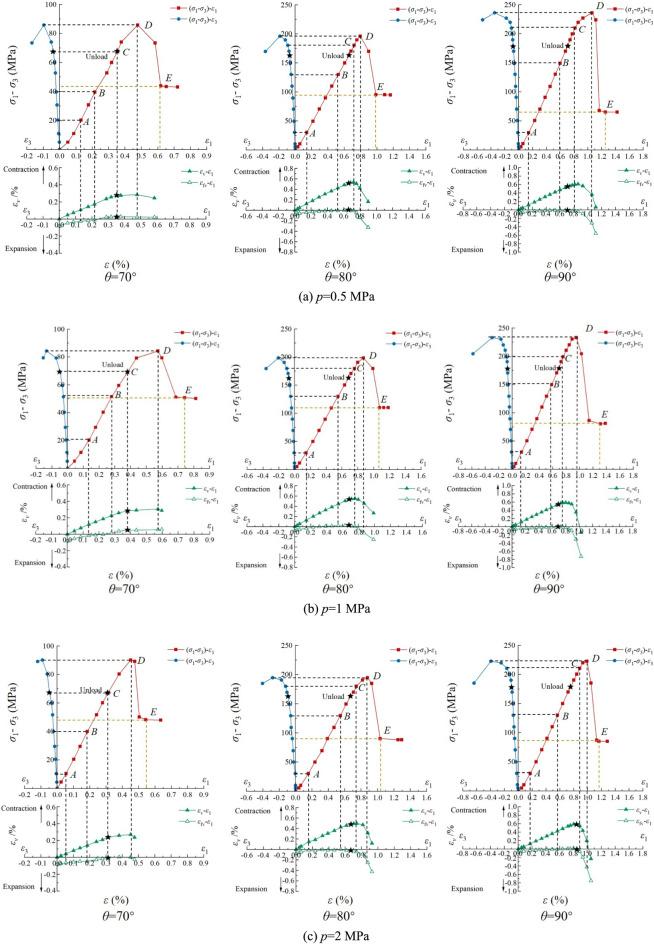

To forecast the release of hazardous gases during deep underground excavation, it is essential to understand how normal and lateral stresses interact to influence fracture surfaces in rock mass deformation and seepage development. This study investigates the complete stress-strain-seepage response of fractured rock under varying fracture angles and gas pressures through triaxial testing. Results show that gas pressure begins to significantly promote fracture opening when the gas-to-confining pressure ratio (p/σ) exceeds 7.5. However, increasing gas pressure has limited influence on the overall failure mechanism. As deviatoric stress increases, rock mass permeability initially decreases and then increases, with the enhancing effect growing at higher stress levels. A fracture permeability model incorporating lateral stress effects was developed to simulate the dynamic coupling of damage and seepage throughout loading and unloading. The model effectively captures the dynamic evolution of seepage under the coupled damage-deformation conditions by iterating damage and seepage computations. Simulations reveal that increased lateral stress reduces normal stress on fracture surfaces, with its influence becoming more pronounced as fracture angle decreases and gas pressure rises. Damage accumulation further reduces normal stress, significantly affecting gas flow at the inlet and rupture planes, while having minimal impact at the outlet. These findings offer valuable insights for predicting gas release during deep tunnel excavation.
为了预测深部地下开挖过程中有害气体的释放,了解法向应力和侧向应力如何相互作用以影响岩体变形和渗流发展中的断裂面至关重要。本研究通过三轴试验研究了不同断裂角度和气体压力下裂隙岩石的完整应力 - 应变 - 渗流响应。结果表明,当气体与围压比(p/σ)超过7.5时,气体压力开始显著促进裂隙张开。然而,气体压力的增加对整体破坏机制的影响有限。随着偏应力增加,岩体渗透率最初降低,然后增加,且在较高应力水平下增强效应更明显。建立了一个考虑侧向应力效应的裂隙渗透率模型,以模拟加载和卸载过程中损伤与渗流的动态耦合。该模型通过迭代损伤和渗流计算,有效地捕捉了损伤 - 变形耦合条件下渗流的动态演化。模拟结果表明,增加侧向应力会降低断裂面上的法向应力,随着断裂角度减小和气体压力升高,其影响变得更加显著。损伤累积进一步降低法向应力,对入口和破裂面处的气体流动有显著影响,而对出口处的影响最小。这些发现为预测深部隧道开挖过程中的气体释放提供了有价值的见解。
