纤维素结晶度指数:测量技术及其对纤维素酶性能解读的影响。
Cellulose crystallinity index: measurement techniques and their impact on interpreting cellulase performance.
机构信息
Biosciences Center, National Renewable Energy Laboratory, 1617 Cole Blvd, Golden, CO 80401, USA.
出版信息
Biotechnol Biofuels. 2010 May 24;3:10. doi: 10.1186/1754-6834-3-10.

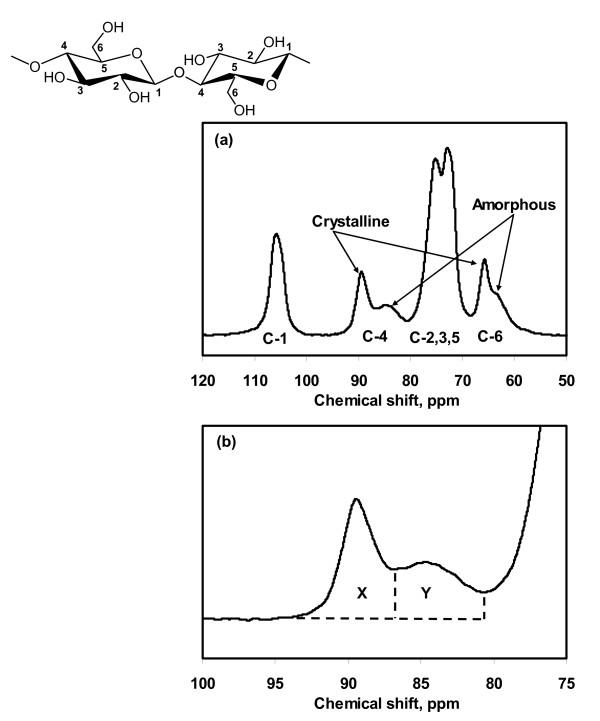

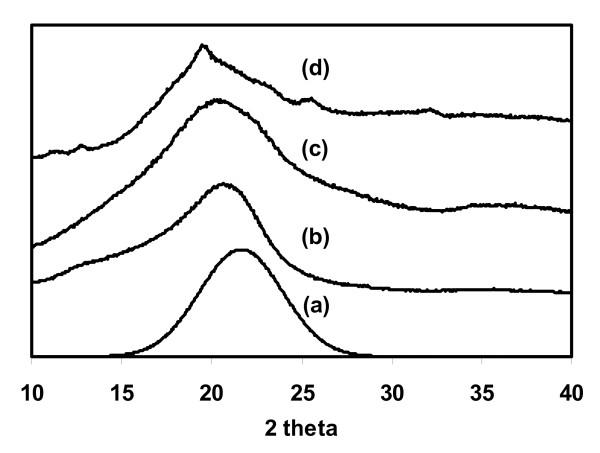

Although measurements of crystallinity index (CI) have a long history, it has been found that CI varies significantly depending on the choice of measurement method. In this study, four different techniques incorporating X-ray diffraction and solid-state 13C nuclear magnetic resonance (NMR) were compared using eight different cellulose preparations. We found that the simplest method, which is also the most widely used, and which involves measurement of just two heights in the X-ray diffractogram, produced significantly higher crystallinity values than did the other methods. Data in the literature for the cellulose preparation used (Avicel PH-101) support this observation. We believe that the alternative X-ray diffraction (XRD) and NMR methods presented here, which consider the contributions from amorphous and crystalline cellulose to the entire XRD and NMR spectra, provide a more accurate measure of the crystallinity of cellulose. Although celluloses having a high amorphous content are usually more easily digested by enzymes, it is unclear, based on studies published in the literature, whether CI actually provides a clear indication of the digestibility of a cellulose sample. Cellulose accessibility should be affected by crystallinity, but is also likely to be affected by several other parameters, such as lignin/hemicellulose contents and distribution, porosity, and particle size. Given the methodological dependency of cellulose CI values and the complex nature of cellulase interactions with amorphous and crystalline celluloses, we caution against trying to correlate relatively small changes in CI with changes in cellulose digestibility. In addition, the prediction of cellulase performance based on low levels of cellulose conversion may not include sufficient digestion of the crystalline component to be meaningful.
虽然结晶度指数 (CI) 的测量已有很长的历史,但已经发现 CI 会因测量方法的选择而有很大的变化。在这项研究中,使用八种不同的纤维素制备物比较了四种不同的结合 X 射线衍射和固态 13C 核磁共振 (NMR) 的技术。我们发现,最简单的方法(也是最广泛使用的方法),即仅在 X 射线衍射图中测量两个高度,产生的结晶度值明显高于其他方法。文献中关于所使用的纤维素制备物(Avicel PH-101)的数据支持了这一观察结果。我们相信,这里提出的替代 X 射线衍射 (XRD) 和 NMR 方法,考虑了无定形和结晶纤维素对整个 XRD 和 NMR 光谱的贡献,提供了对纤维素结晶度更准确的衡量。虽然具有高无定形含量的纤维素通常更容易被酶消化,但根据文献中的研究,CI 是否能清楚地表明纤维素样品的可消化性尚不清楚。纤维素的可及性应该受到结晶度的影响,但也可能受到其他几个参数的影响,如木质素/半纤维素含量和分布、孔隙率和粒径。鉴于纤维素 CI 值的方法依赖性以及纤维素酶与无定形和结晶纤维素相互作用的复杂性,我们告诫不要试图将 CI 的相对较小变化与纤维素消化率的变化相关联。此外,基于纤维素转化率较低来预测纤维素酶的性能可能不包括对结晶成分的充分消化,因此没有意义。
