Max Planck Institute of Microstructure Physics, Weinberg 2, 06120, Halle, Germany.
Nanoscale Res Lett. 2009 Nov 8;5(1):243-6. doi: 10.1007/s11671-009-9472-x.

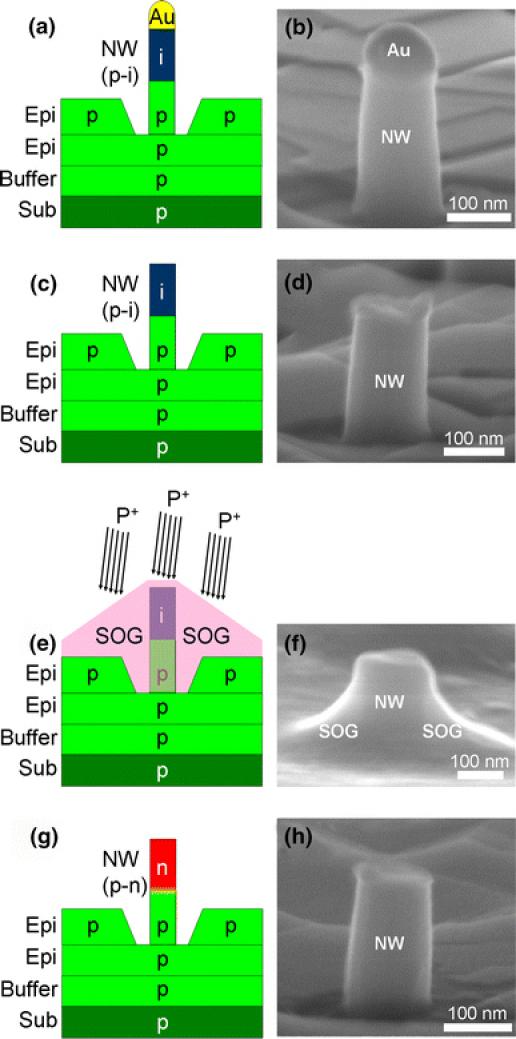

We demonstrate a novel method to fabricate an axial p-n junction inside <111> oriented short vertical silicon nanowires grown by molecular beam epitaxy by combining ion implantation with in-situ doping. The lower halves of the nanowires were doped in-situ with boron (concentration ~1018cm-3), while the upper halves were doubly implanted with phosphorus to yield a uniform concentration of 2 × 1019 cm-3. Electrical measurements of individually contacted nanowires showed excellent diode characteristics and ideality factors close to 2. We think that this value of ideality factors arises out of a high rate of carrier recombination through surface states in the native oxide covering the nanowires.
我们展示了一种新的方法,通过结合离子注入和原位掺杂,在通过分子束外延生长的<111>取向短垂直硅纳米线内部制造轴向 p-n 结。纳米线的下半部分进行了硼的原位掺杂(浓度约为 1018cm-3),而上半部分则进行了磷的双离子注入,以获得均匀的 2×1019cm-3浓度。对单独接触的纳米线进行的电测量显示出优异的二极管特性和接近 2 的理想因子。我们认为,这种理想因子的值是由于覆盖纳米线的本征氧化物中的表面态导致载流子复合率很高而产生的。
