Department of Biochemistry and Beckman Institute, University of Illinois at Urbana-Champaign, Urbana, Illinois, United States of America.
PLoS Comput Biol. 2010 Aug 26;6(8):e1000905. doi: 10.1371/journal.pcbi.1000905.

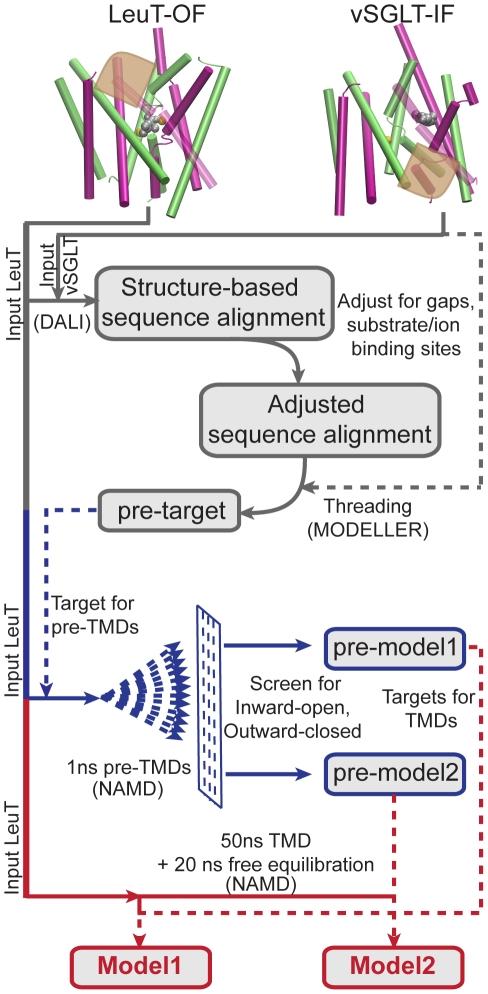

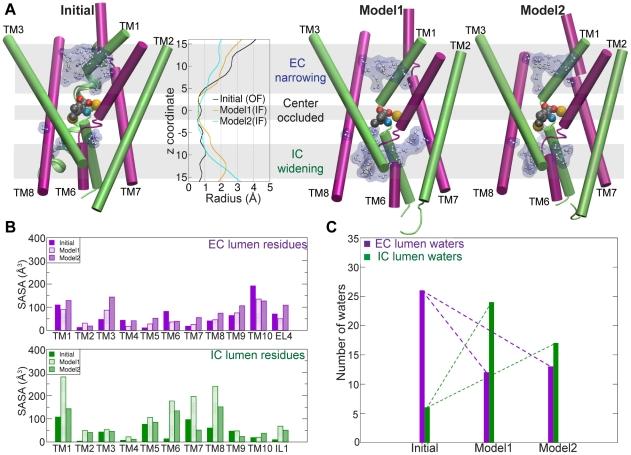

The leucine transporter (LeuT) has recently commanded exceptional attention due mainly to two distinctions; it provides the only crystal structures available for a protein homologous to the pharmacologically relevant neurotransmitter: sodium symporters (NSS), and, it exhibits a hallmark 5-TM inverted repeat ("LeuT-fold"), a fold recently discovered to also exist in several secondary transporter families, underscoring its general role in transporter function. Constructing the transport cycle of "LeuT-fold" transporters requires detailed structural and dynamic descriptions of the outward-facing (OF) and inward-facing (IF) states, as well as the intermediate states. To this end, we have modeled the structurally unknown IF state of LeuT, based on the known crystal structures of the OF state of LeuT and the IF state of vSGLT, a "LeuT-fold" transporter. The detailed methodology developed for the study combines structure-based alignment, threading, targeted MD and equilibrium MD, and can be applied to other proteins. The resulting IF-state models maintain the secondary structural features of LeuT. Water penetration and solvent accessibility calculations show that TM1, TM3, TM6 and TM8 line the substrate binding/unbinding pathway with TM10 and its pseudosymmetric partner, TM5, participating in the extracellular and intracellular halves of the lumen, respectively. We report conformational hotspots where notable changes in interactions occur between the IF and OF states. We observe Na2 exiting the LeuT-substrate- complex in the IF state, mainly due to TM1 bending. Inducing a transition in only one of the two pseudosymmetric domains, while allowing the second to respond dynamically, is found to be sufficient to induce the formation of the IF state. We also propose that TM2 and TM7 may be facilitators of TM1 and TM6 motion. Thus, this study not only presents a novel modeling methodology applied to obtain the IF state of LeuT, but also describes structural elements involved in a possibly general transport mechanism in transporters adopting the "LeuT-fold".
亮氨酸转运蛋白(LeuT)最近备受关注,主要有两个原因:它提供了唯一可用的与药理学相关神经递质:钠离子协同转运蛋白(NSS)同源的蛋白质晶体结构,并且,它表现出标志性的 5-TM 反向重复(“LeuT 折叠”),这种折叠最近在几个二级转运体家族中也被发现存在,突出了它在转运体功能中的普遍作用。构建“LeuT 折叠”转运体的运输循环需要详细的结构和动态描述外向(OF)和内向(IF)状态以及中间状态。为此,我们根据 LeuT 的已知 OF 状态的晶体结构和“LeuT 折叠”转运体 vSGLT 的 IF 状态的晶体结构,对 LeuT 的结构未知的 IF 状态进行了建模。用于研究的详细方法结合了基于结构的对齐、穿线、靶向 MD 和平衡 MD,并且可以应用于其他蛋白质。所得 IF 状态模型保持了 LeuT 的二级结构特征。水渗透和溶剂可及性计算表明,TM1、TM3、TM6 和 TM8 沿底物结合/释放途径排列,TM10 及其拟对称伴侣 TM5 分别参与内腔的细胞外和细胞内部分。我们报告了构象热点,在这些热点中,IF 和 OF 状态之间的相互作用发生了显著变化。我们观察到 Na2 在 IF 状态下从 LeuT-底物复合物中逸出,主要是由于 TM1 弯曲。发现仅在两个拟对称结构域之一中诱导转变,同时允许第二个结构域动态响应,足以诱导 IF 状态的形成。我们还提出 TM2 和 TM7 可能是 TM1 和 TM6 运动的促进剂。因此,这项研究不仅提出了一种新的建模方法来获得 LeuT 的 IF 状态,而且还描述了参与采用“LeuT 折叠”的转运体中可能普遍的运输机制的结构元素。
