(E)-4-Chloro-N'-[1-(4-hydroxy-phenyl)-ethylidene]benzohydrazide.

作者信息

Yang De-Suo

机构信息

Department of Chemistry and Chemical Engineering, Baoji University of Arts and Sciences, Baoji 721007, People's Republic of China.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2008 Aug 30;64(Pt 9):o1850. doi: 10.1107/S1600536808027001.

DOI:10.1107/S1600536808027001

PMID:21201821

原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC2960571/

Abstract

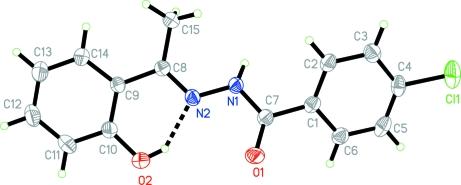

The mol-ecule of the title compound, C(15)H(13)ClN(2)O(2), displays a trans configuration with respect to the C=N double bond. The dihedral angle between the two benzene rings is 15.1 (3)°. A strong intra-molecular O-H⋯N hydrogen bond is observed. In the crystal structure, mol-ecules are linked through inter-molecular N-H⋯O hydrogen bonds, forming chains running along [101].

摘要

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/6b87/2960571/ea7ac5712ccb/e-64-o1850-fig1.jpg
