N,N'-双(4-氯-3-氟-亚苄基)乙烷-1,2-二胺
N,N'-Bis(4-chloro-3-fluoro-benzyl-idene)ethane-1,2-diamine.
作者信息
Kia Reza, Fun Hoong-Kun
机构信息
X-ray Crystallography Unit, School of Physics, Universiti Sains Malaysia, 11800 USM, Penang, Malaysia.
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2008 Oct 22;64(Pt 11):o2169. doi: 10.1107/S1600536808033916.
Abstract

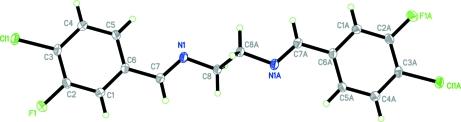

The asymmetric unit of the title Schiff base compound, C(16)H(12)Cl(2)F(2)N(2), contains one half of the centrosymmetric mol-ecule. Mol-ecules related by translation along the a axis form stacks with short inter-molecular C⋯C distances of 3.429 (3) Å. The crystal packing also exhibits short inter-molecular Cl⋯F contacts of 3.087 (1) Å.
摘要
标题席夫碱化合物C(16)H(12)Cl(2)F(2)N(2)的不对称单元包含中心对称分子的一半。沿a轴平移相关的分子形成堆积，分子间C⋯C短距离为3.429 (3) Å。晶体堆积还表现出分子间Cl⋯F短接触，距离为3.087 (1) Å。
