WPI Immunology Frontier Research Center, Osaka University, Yamada-oka 1-3, Suita, Osaka 565-0871, Japan; E-Mails:
Sensors (Basel). 2009;9(11):9332-64. doi: 10.3390/s91109332. Epub 2009 Nov 19.

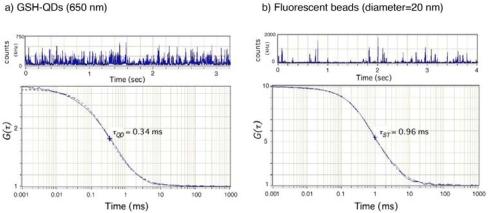

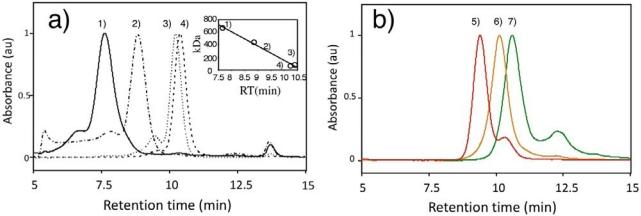

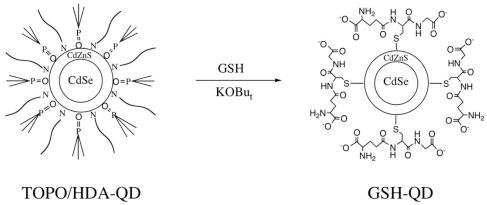

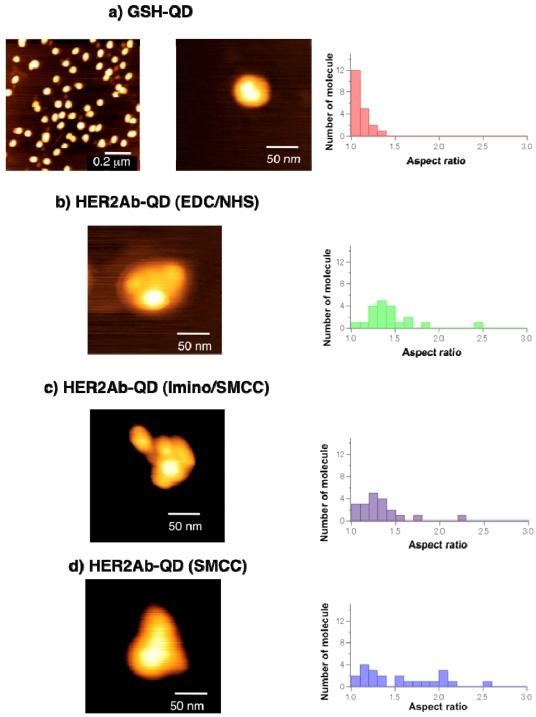

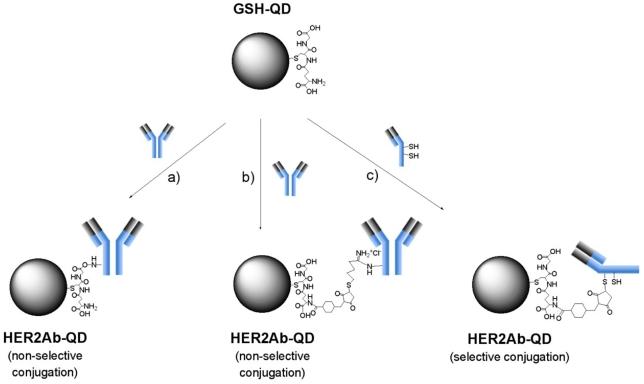

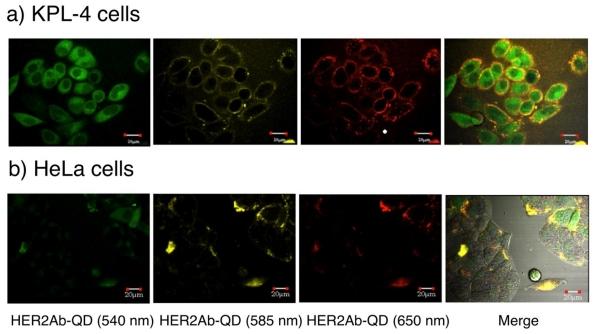

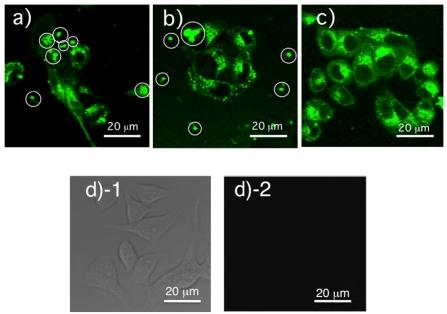

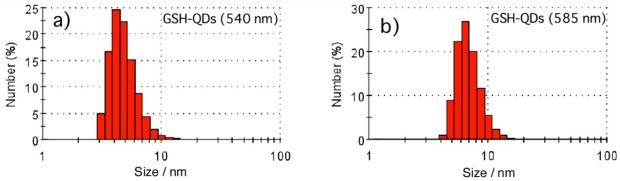

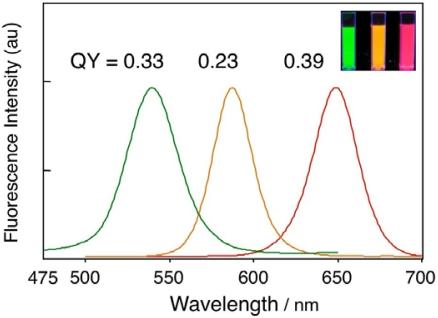

The early detection of HER2 (human epidermal growth factor receptor 2) status in breast cancer patients is very important for the effective implementation of anti-HER2 antibody therapy. Recently, HER2 detections using antibody conjugated quantum dots (QDs) have attracted much attention. QDs are a new class of fluorescent materials that have superior properties such as high brightness, high resistance to photo-bleaching, and multi-colored emission by a single-light source excitation. In this study, we synthesized three types of anti-HER2 antibody conjugated QDs (HER2Ab-QDs) using different coupling agents (EDC/sulfo-NHS, iminothiolane/sulfo-SMCC, and sulfo-SMCC). As water-soluble QDs for the conjugation of antibody, we used glutathione coated CdSe/CdZnS QDs (GSH-QDs) with fluorescence quantum yields of 0.23∼0.39 in aqueous solution. Dispersibility, hydrodynamic size, and apparent molecular weights of the GSH-QDs and HER2Ab-QDs were characterized by using dynamic light scattering, fluorescence correlation spectroscopy, atomic force microscope, and size-exclusion HPLC. Fluorescence imaging of HER2 overexpressing cells (KPL-4 human breast cancer cell line) was performed by using HER2Ab-QDs as fluorescent probes. We found that the HER2Ab-QD prepared by using SMCC coupling with partially reduced antibody is a most effective probe for the detection of HER2 expression in KPL-4 cells. We have also studied the size dependency of HER2Ab-QDs (with green, orange, and red emission) on the fluorescence image of KPL-4 cells.
早期检测乳腺癌患者的 HER2(人表皮生长因子受体 2)状态对于实施有效的抗 HER2 抗体治疗非常重要。最近,使用抗体偶联量子点(QD)进行 HER2 检测引起了广泛关注。QD 是一类新型荧光材料,具有高亮度、高抗光漂白性以及单光源激发多色发射等优异性能。在这项研究中,我们使用三种不同的偶联剂(EDC/sulfo-NHS、iminothiolane/sulfo-SMCC 和 sulfo-SMCC)合成了三种抗 HER2 抗体偶联 QD(HER2Ab-QD)。作为用于抗体偶联的水溶性 QD,我们使用荧光量子产率为 0.23∼0.39 的谷胱甘肽包覆的 CdSe/CdZnS QD(GSH-QD)。通过动态光散射、荧光相关光谱、原子力显微镜和尺寸排阻 HPLC 对 GSH-QD 和 HER2Ab-QD 的分散性、水动力粒径和表观分子量进行了表征。使用 HER2Ab-QD 作为荧光探针对过表达 HER2 的细胞(KPL-4 人乳腺癌细胞系)进行了荧光成像。我们发现,使用 SMCC 与部分还原抗体偶联制备的 HER2Ab-QD 是检测 KPL-4 细胞中 HER2 表达的最有效探针。我们还研究了 HER2Ab-QD(具有绿色、橙色和红色发射)的尺寸依赖性对 KPL-4 细胞荧光图像的影响。
