远程高清旋转视频可实现海洋水下大型动物和生境的快速空间调查。

Remote high-definition rotating video enables fast spatial survey of marine underwater macrofauna and habitats.

机构信息

Unité de Recherche Lagons, Ecosystèmes et Aquaculture Durable en Nouvelle-Calédonie, French Institute for the Exploitation of the Sea, Nouméa, New Caledonia.

出版信息

PLoS One. 2012;7(2):e30536. doi: 10.1371/journal.pone.0030536. Epub 2012 Feb 27.


DOI:10.1371/journal.pone.0030536
PMID:22383965
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC3287995/
Abstract

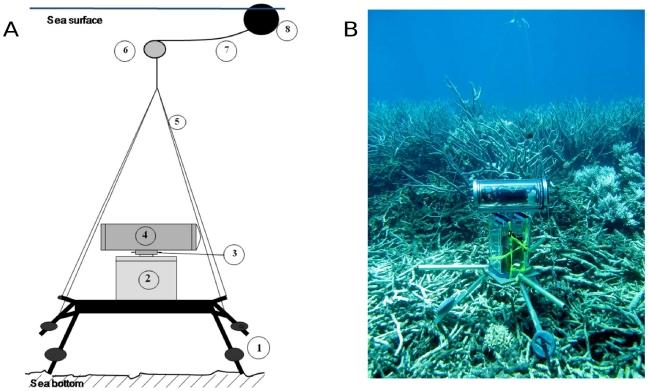

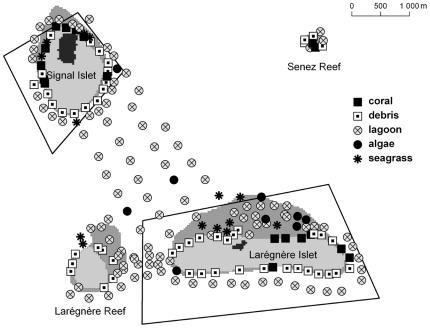

Observing spatial and temporal variations of marine biodiversity from non-destructive techniques is central for understanding ecosystem resilience, and for monitoring and assessing conservation strategies, e.g. Marine Protected Areas. Observations are generally obtained through Underwater Visual Censuses (UVC) conducted by divers. The problems inherent to the presence of divers have been discussed in several papers. Video techniques are increasingly used for observing underwater macrofauna and habitat. Most video techniques that do not need the presence of a diver use baited remote systems. In this paper, we present an original video technique which relies on a remote unbaited rotating remote system including a high definition camera. The system is set on the sea floor to record images. These are then analysed at the office to quantify biotic and abiotic sea bottom cover, and to identify and count fish species and other species like marine turtles. The technique was extensively tested in a highly diversified coral reef ecosystem in the South Lagoon of New Caledonia, based on a protocol covering both protected and unprotected areas in major lagoon habitats. The technique enabled to detect and identify a large number of species, and in particular fished species, which were not disturbed by the system. Habitat could easily be investigated through the images. A large number of observations could be carried out per day at sea. This study showed the strong potential of this non obtrusive technique for observing both macrofauna and habitat. It offers a unique spatial coverage and can be implemented at sea at a reasonable cost by non-expert staff. As such, this technique is particularly interesting for investigating and monitoring coastal biodiversity in the light of current conservation challenges and increasing monitoring needs.

摘要

从非破坏性技术观察海洋生物多样性的时空变化对于理解生态系统的恢复力以及监测和评估保护策略(例如海洋保护区)至关重要。这些观察通常是通过潜水员进行的水下视觉普查(UVC)获得的。在一些论文中已经讨论了潜水员存在所带来的问题。视频技术越来越多地用于观察水下大型动物群和栖息地。大多数不需要潜水员存在的视频技术都使用诱饵远程系统。在本文中,我们提出了一种原始的视频技术,该技术依赖于包括高清摄像机在内的远程无诱饵旋转远程系统。该系统被放置在海床上以记录图像。然后在办公室进行分析,以量化生物和非生物海底覆盖物,并识别和计数鱼类和其他物种,如海龟。该技术在新喀里多尼亚南泻湖的高度多样化珊瑚礁生态系统中进行了广泛测试,该技术基于一个涵盖主要泻湖生境保护区和非保护区的协议。该技术能够检测和识别大量物种,特别是未受系统干扰的捕捞物种。通过图像可以轻松地研究栖息地。每天可以在海上进行大量的观察。这项研究表明,这种非侵入性技术在观察大型动物群和栖息地方面具有很大的潜力。它提供了独特的空间覆盖范围,并且可以由非专业人员以合理的成本在海上实施。因此,这项技术对于应对当前的保护挑战和不断增加的监测需求,调查和监测沿海生物多样性特别有趣。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/d0b690d20198/pone.0030536.g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/95d6a63c69d6/pone.0030536.g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/e5d8d921fa2c/pone.0030536.g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/aaccae67ee84/pone.0030536.g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/88a29374496e/pone.0030536.g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/4489924937ca/pone.0030536.g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/03b46e3fd1ca/pone.0030536.g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/0b8a03f5da97/pone.0030536.g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/4bc6ee25fbbb/pone.0030536.g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/eb5fb6bae8a1/pone.0030536.g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/d0b690d20198/pone.0030536.g010.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/95d6a63c69d6/pone.0030536.g001.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/e5d8d921fa2c/pone.0030536.g002.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/aaccae67ee84/pone.0030536.g003.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/88a29374496e/pone.0030536.g004.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/4489924937ca/pone.0030536.g005.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/03b46e3fd1ca/pone.0030536.g006.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/0b8a03f5da97/pone.0030536.g007.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/4bc6ee25fbbb/pone.0030536.g008.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/eb5fb6bae8a1/pone.0030536.g009.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/5586/3287995/d0b690d20198/pone.0030536.g010.jpg
