German Heart Institute Berlin, Department of Cardiothoracic and Vascular Surgery, Laboratory for Tissue Engineering, Augustenburger Platz 1, 13353 Berlin, Germany.
J Transl Med. 2012 May 16;10:98. doi: 10.1186/1479-5876-10-98.
In vitro fabricated tissue engineered vascular constructs could provide an alternative to conventional substitutes. A crucial factor for tissue engineering of vascular constructs is an appropriate cell source. Vascular cells from the human umbilical cord can be directly isolated and cryopreserved until needed. Currently no cell bank for human vascular cells is available. Therefore, the establishment of a future human vascular cell bank conforming to good manufacturing practice (GMP) conditions is desirable for therapeutic applications such as tissue engineered cardiovascular constructs.
A fundamental step was the adaption of conventional research and development starting materials to GMP compliant starting materials. Human umbilical cord artery derived cells (HUCAC) and human umbilical vein endothelial cells (HUVEC) were isolated, cultivated, cryopreserved (short- and long-term) directly after primary culture and recultivated subsequently. Cell viability, expression of cellular markers and proliferation potential of fresh and cryopreserved cells were studied using trypan blue staining, flow cytometry analysis, immunofluorescence staining and proliferation assays. Statistical analyses were performed using Student's t-test.

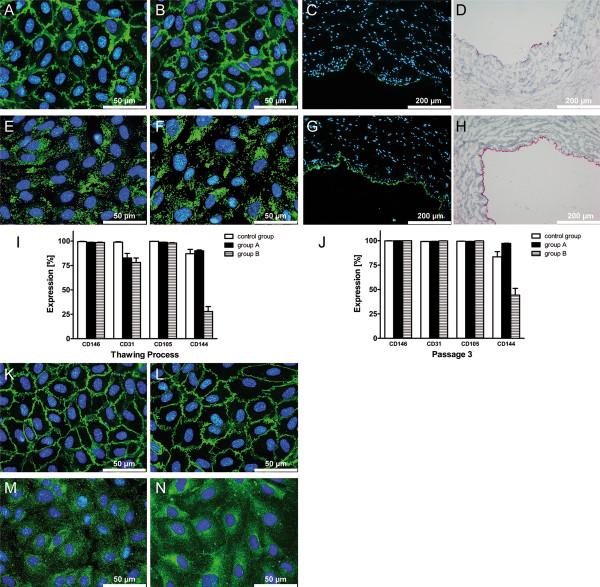

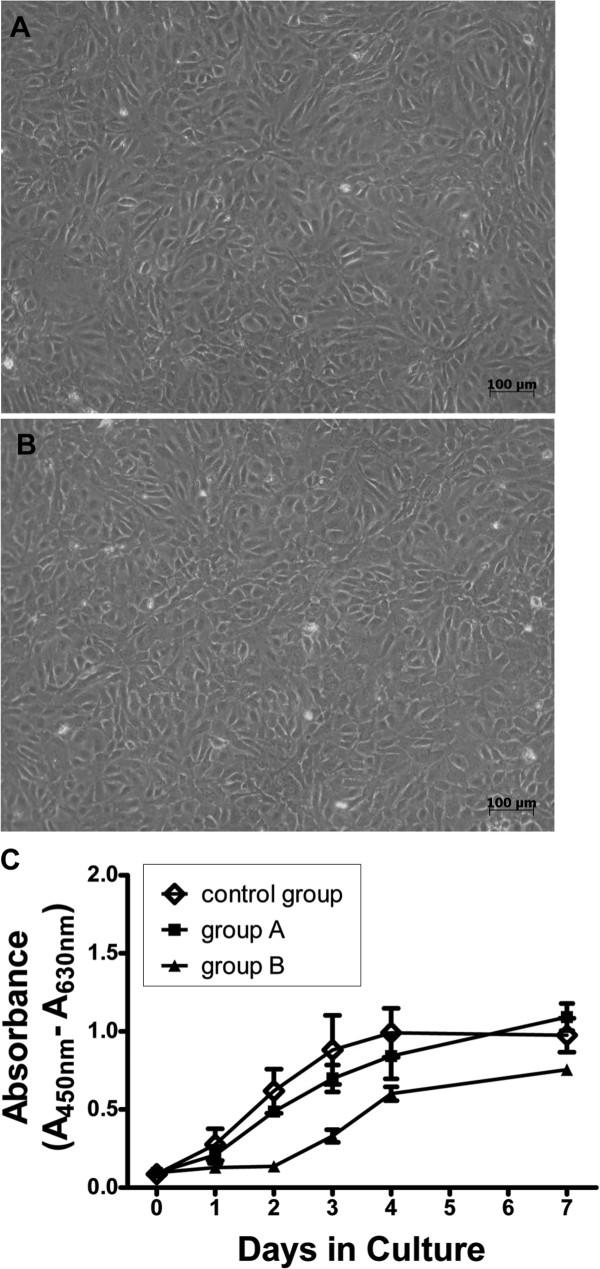

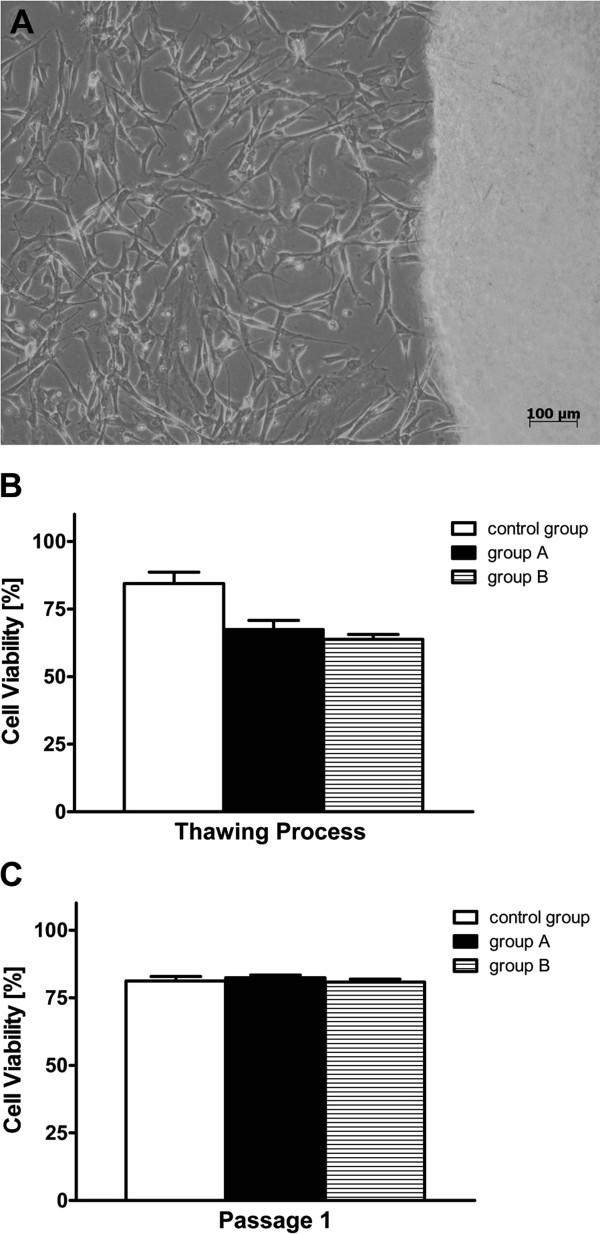

Sufficient numbers of isolated cells with acceptable viabilities and homogenous expression of cellular markers confirmed that the isolation procedure was successful using GMP compliant starting materials. The influence of cryopreservation was marginal, because cryopreserved cells mostly maintain phenotypic and functional characteristics similar to those of fresh cells. Phenotypic studies revealed that fresh cultivated and cryopreserved HUCAC were positive for alpha smooth muscle actin, CD90, CD105, CD73, CD29, CD44, CD166 and negative for smoothelin. HUVEC expressed CD31, CD146, CD105 and CD144 but not alpha smooth muscle actin. Functional analysis demonstrated acceptable viability and sufficient proliferation properties of cryopreserved HUCAC and HUVEC.
Adaptation of cell isolation, cultivation and cryopreservation to GMP compliant starting materials was successful. Cryopreservation did not influence cell properties with lasting impact, confirming that the application of vascular cells from the human umbilical cord is feasible for cell banking. A specific cellular marker expression profile was established for HUCAC and HUVEC using flow cytometry analysis, applicable as a GMP compliant quality control. Use of these cells for the future fabrication of advanced therapy medicinal products GMP conditions are required by the regulatory authority.
体外构建的组织工程血管构建物可以为传统替代物提供另一种选择。组织工程血管构建物的一个关键因素是适当的细胞来源。人脐带血管中的血管细胞可以直接分离并冷冻保存,以备将来使用。目前没有可用于人类血管细胞的细胞库。因此,建立一个符合良好生产规范(GMP)条件的未来人类血管细胞库,对于组织工程心血管构建物等治疗应用是理想的。
一个基本步骤是将常规研究和开发的起始材料改编为符合 GMP 的起始材料。人脐带动脉衍生细胞(HUCAC)和人脐静脉内皮细胞(HUVEC)在原代培养后直接分离、培养、冷冻保存(短期和长期),随后再培养。使用台盼蓝染色、流式细胞术分析、免疫荧光染色和增殖试验研究新鲜和冷冻保存细胞的细胞活力、细胞标志物表达和增殖潜力。使用 Student's t 检验进行统计分析。
足够数量的具有可接受活力和均匀表达细胞标志物的分离细胞证实,使用符合 GMP 的起始材料进行分离程序是成功的。冷冻保存的影响是微不足道的,因为冷冻保存的细胞大多保持与新鲜细胞相似的表型和功能特征。表型研究表明,新鲜培养和冷冻保存的 HUCAC 对 alpha 平滑肌肌动蛋白、CD90、CD105、CD73、CD29、CD44、CD166 呈阳性,对 smoothelin 呈阴性。HUVEC 表达 CD31、CD146、CD105 和 CD144,但不表达 alpha 平滑肌肌动蛋白。功能分析表明,冷冻保存的 HUCAC 和 HUVEC 具有可接受的活力和足够的增殖特性。
细胞分离、培养和冷冻保存的适应符合 GMP 起始材料是成功的。冷冻保存不会对细胞特性产生持久影响,这证实了使用人脐带血管中的血管细胞进行细胞储存是可行的。使用流式细胞术分析建立了 HUCAC 和 HUVEC 的特定细胞标志物表达谱,可作为 GMP 合规性的质量控制。监管机构要求在符合 GMP 条件下使用这些细胞来制造高级治疗药物产品。
