AIM

To analyze the influence of cavity design preparation on stress values in three-dimensional (3D) solid model of maxillary premolar restored with resin composite.

METHODS

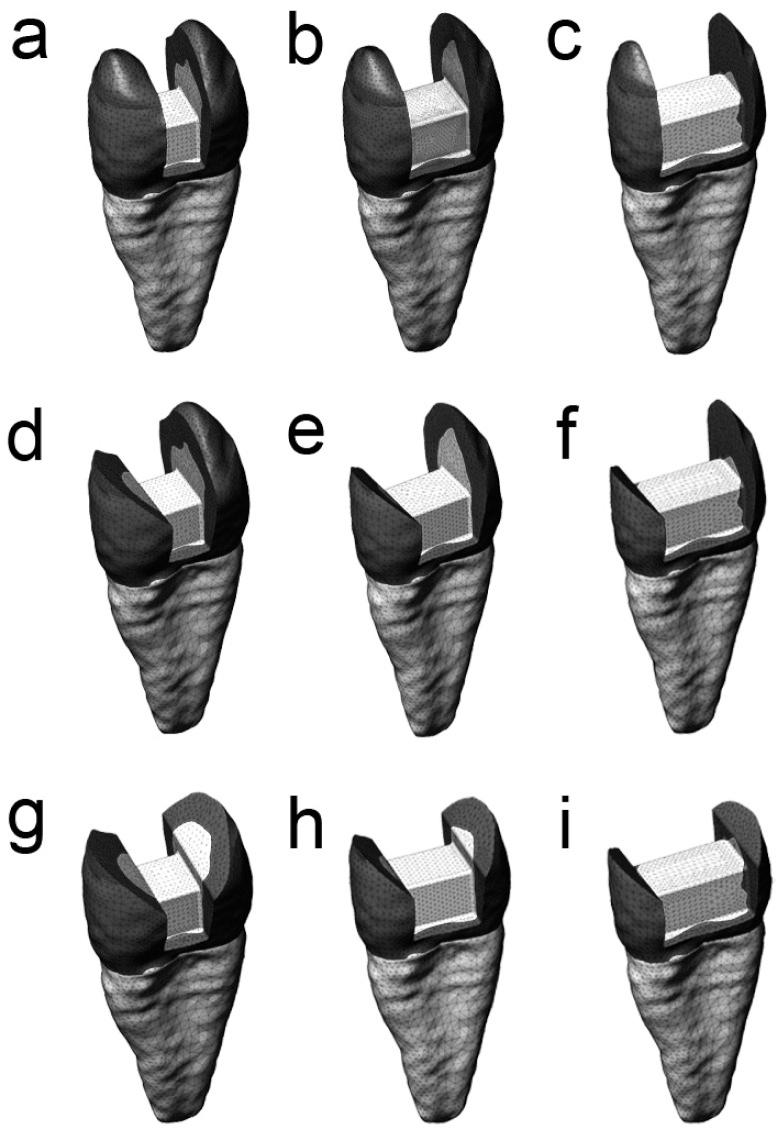

3D solid model of maxillary second premolar was designed using computed-tomography (CT) data. Based on a factorial experiment, 9 different mesio-occlusal-distal (MOD) cavity designs were simulated, with three cavity wall thicknesses (1.5 mm, 2.25 mm, 3.0 mm), and three cusp reduction procedures (without cusp reduction, 2.0 mm palatal cusp reduction, 2.0 mm palatal and buccal cusp reduction). All MOD cavities were simulated with direct resin composite restoration (Gradia Direct Posterior, GC, Japan). Finite element analysis (FEA) was used to calculate von Mises stress values.

RESULTS

The von Mises stresses in enamel, dentin, and resin composite were 79.3-233.6 MPa, 26.0-32.9 MPa, and 180.2-252.2 MPa, respectively. Considering the influence of cavity design parameters, cuspal reduction (92.97%) and cavity wall thickness (3.06%) significantly (P<0.05) determined the magnitude of stress values in enamel. The influence of cavity design parameters on stress values in dentin and resin composite was not significant. When stresses for enamel, dentine, and resin composite were considered all together, palatal cusp coverage was revealed as an optimal option. Cavity wall thickness did not show a significant effect on stress values.

CONCLUSION

Based on numerical simulations, a palatal cusp reduction could be suggested for revealing lower stress values in dental tissues and restorative material. This type of cavity design should contribute to better biomechanical behavior of tooth-restoration complex, consequently providing the long-lasting clinical results.
