Department of Biomedical Engineering, Faculty of Engineering, University of Malaya, Kuala Lumpur, Malaysia.
PLoS One. 2013;8(2):e55702. doi: 10.1371/journal.pone.0055702. Epub 2013 Feb 7.
The deep tendon reflex assessments that are essential to the accurate diagnosis of neurological or neuromuscular disorders are conducted subjectively in clinical neurology. Our aim was to assess deep tendon reflexes objectively with a new reflex quantification method.
METHODOLOGY/PRINCIPAL FINDINGS: The present study used a motion analysis technique to collect quantitative measurements for both the input and output of normal patellar tendon reflex. Reflex responses were measured as knee angles. The patellar tendon reflexes of 100 healthy subjects were examined using 6 levels of tendon taps, where all the assessments were captured using motion capture system. A linear relationship was found between the experimental maximum tapping velocity and tapping angle (coefficient of determination = 0.989), which was consistent with the theoretical values. Tapping velocities were predictable according to tapping angles. The findings proved the reproducibility of tapping method in producing consistent input. The reflex amplitude was consistent between two randomly assigned groups, and linearly proportionate to the tapping velocity.

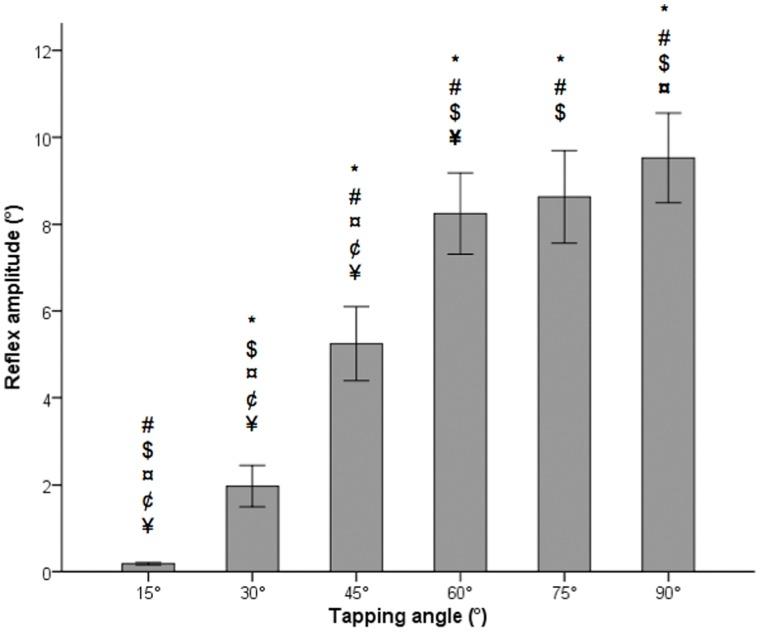

CONCLUSIONS/SIGNIFICANCE: The findings on reflex amplitude indicate that motion analysis is a valid and reliable method of assessing and measuring deep tendon reflexes.
准确诊断神经或神经肌肉疾病所必需的深层腱反射评估在临床神经病学中是主观进行的。我们的目的是使用新的反射定量方法客观地评估深层腱反射。
方法/主要发现:本研究使用运动分析技术来收集正常髌腱反射的输入和输出的定量测量值。反射反应以膝关节角度来测量。使用运动捕捉系统捕获了 100 名健康受试者的 6 个肌腱敲击水平的髌腱反射。实验最大敲击速度与敲击角度之间存在线性关系(决定系数=0.989),与理论值一致。根据敲击角度可以预测敲击速度。这些发现证明了敲击方法在产生一致输入方面的可重复性。在两个随机分配的组之间,反射幅度是一致的,并且与敲击速度呈线性比例关系。
结论/意义:关于反射幅度的发现表明,运动分析是评估和测量深层腱反射的一种有效且可靠的方法。
