1-{2-苄氧基-2-[4-(吗啉-4-基)苯基]乙基}-1H-苯并咪唑
1-{2-Benz-yloxy-2-[4-(morpholin-4-yl)phen-yl]eth-yl}-1H-benzimidazole.
作者信息
Ozel Güven Ozden, Capanlar Seval, Adler Philip D F, Coles Simon J, Hökelek Tuncer
机构信息
Department of Chemistry, Bülent Ecevit University, 67100 Zonguldak, Turkey.
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2013 Jan 1;69(Pt 1):o147-8. doi: 10.1107/S1600536812051306. Epub 2012 Dec 22.

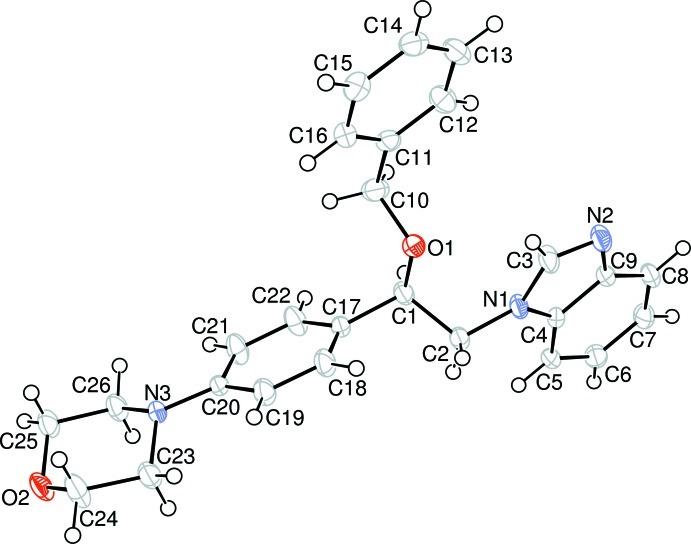

In the title compound, C26H27N3O2, the morpholine ring adopts a chair conformation. The benzene and phenyl rings are inclined to the benzimidazole mean plane by 7.28 (6) and 61.45 (4)°, respectively. In the crystal, pairs of weak C-H⋯O hydrogen bonds link the mol-ecules into inversion dimers. These dimers are further connected via weak C-H⋯N hydrogen bonds. A weak C-H⋯π inter-action is also observed.
在标题化合物C26H27N3O2中，吗啉环呈椅式构象。苯环和苯基环分别相对于苯并咪唑平均平面倾斜7.28 (6)°和61.45 (4)°。在晶体中，成对的弱C—H⋯O氢键将分子连接成反演二聚体。这些二聚体通过弱C—H⋯N氢键进一步连接。还观察到一个弱C—H⋯π相互作用。
