氯代{4-乙基-1-[1-(吡嗪-2-基)亚乙基]硫代氨基脲合-κS}双(三苯基膦-κP)银(I)

Chlorido{4-ethyl-1-[1-(pyrazin-2-yl)ethyl-idene]thio-semicabazidato-κS}bis-(triphenyl-phosphane-κP)silver(I).

作者信息

Venkatraman Ramaiyer, Ruddock Kleopatra D, Das Himangshu S, Hossain Md Alamgir, Fronczek Frank R

机构信息

Department of Chemistry and Biochemistry, Jackson State University, Jackson, MS 39217-0510, USA.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2013 Mar 1;69(Pt 3):m137-8. doi: 10.1107/S1600536813003152. Epub 2013 Feb 6.

Abstract

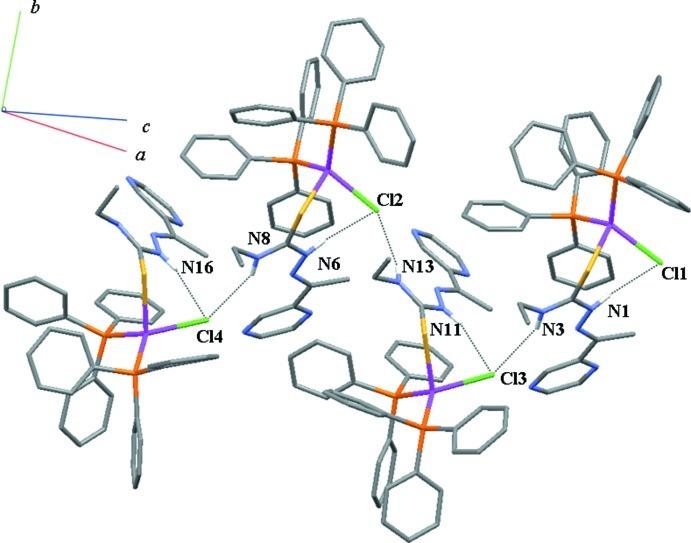

The title compound, [Ag(C9H13N5S)Cl(C18H15P)2], crystallizes with four independent mol-ecules in the asymmetric unit, in each of which the Ag atom is in a distorted tetra-hedral coordination, defined by the chloride ligand, the S atom of the neutral ligand and two P atoms derived from the triphenyl phosphine ligands. The thio-semicarbazone acts as a monodentate ligand through its thione S atom. An intra-molecular N-H⋯Cl hydrogen bond occurs in two of the independent mol-ecules. In the crystal, the mol-ecules are assembled through N-H⋯Cl hydrogen bonds, forming chains along [101].

摘要

标题化合物[Ag(C₉H₁₃N₅S)Cl(C₁₈H₁₅P)₂]在不对称单元中以四个独立分子结晶,每个分子中的Ag原子处于扭曲的四面体配位环境中,由氯配体、中性配体的S原子以及来自三苯基膦配体的两个P原子界定。硫代半卡巴腙通过其硫酮S原子作为单齿配体。在两个独立分子中存在分子内N-H⋯Cl氢键。在晶体中,分子通过N-H⋯Cl氢键组装,沿[101]方向形成链状结构。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1f2a/3588416/ffe7a41e213e/e-69-0m137-fig1.jpg
