5-Iodo-3-phenyl-2,1-benzoxazole.
作者信息
Teslenko Yuriy, Matiychuk Vasyl S, Kinzhybalo Vasyl, Lis Tadeusz, Obushak Mykola D
机构信息
Department of Organic Chemistry, Ivan Franko National University of Lviv, Kyryla and Mefodiya 6, Lviv 79005, Ukraine.
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2013 Mar 9;69(Pt 4):o508. doi: 10.1107/S1600536813005862. Print 2013 Apr 1.
Abstract

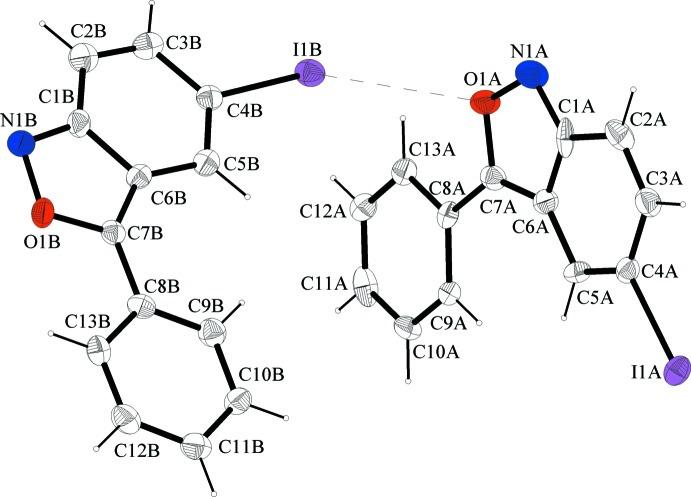

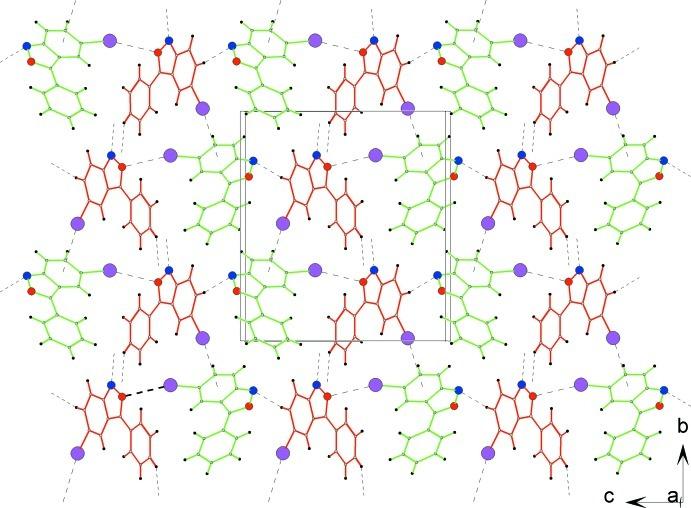

The title compound, C13H8INO, was prepared by a condensation reaction of 4-nitro-benzene with phenyl-acetonitrile in NaOH-ethanol solution. There are two independent mol-ecules in the asymmetric unit, in which the dihedral angles between the benzene ring and the benzoisoxazole unit are 4.2 (3) and 4.1 (3)°. The crystal packing is governed by C-H⋯N, C-I⋯π and C-I⋯O inter-actions.
