Wang Tianheng, Yang Yi, Zhu Quing
University of Connecticut, Dept. of Electrical and Computer Engineering, Storrs, CT 06269, USA.
Biomed Opt Express. 2013 Apr 29;4(5):772-7. doi: 10.1364/BOE.4.000772. Print 2013 May 1.

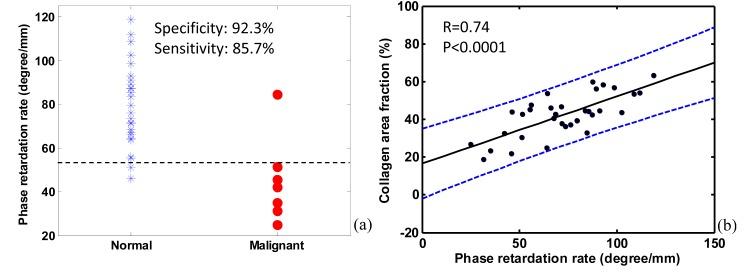

In this paper, a logistic prediction model is introduced to characterize the ovarian tissue. A new parameter, the phase retardation rate, was extracted from phase images of polarization-sensitive optical coherence tomography (PS-OCT). Statistical significance of this parameter between normal and malignant ovarian tissues was demonstrated (p<0.0001). Linear regression analysis showed that this parameter was positively correlated (R = 0.74) with collagen content, which was associated with the development of ovarian tissue malignancy. When this parameter and the optical scattering coefficient and the phase retardation estimated from the 33 ovaries were used as input predictors to the logistic model, 100% sensitivity and specificity in classifying malignant and normal ovaries were achieved. Ten additional ovaries were imaged and used to validate the prediction model and 100% sensitivity and 83.3% specificity were achieved. These results showed that the three-parameter prediction model based on quantitative parameters estimated from PS-OCT images could be a powerful tool to detect and diagnose ovarian cancer.
本文介绍了一种用于表征卵巢组织的逻辑预测模型。从偏振敏感光学相干断层扫描(PS-OCT)的相位图像中提取了一个新参数——相位延迟率。该参数在正常和恶性卵巢组织之间的统计学显著性得到了证实(p<0.0001)。线性回归分析表明,该参数与胶原蛋白含量呈正相关(R = 0.74),而胶原蛋白含量与卵巢组织恶性肿瘤的发展有关。当将该参数以及从33个卵巢估计得到的光学散射系数和相位延迟作为逻辑模型的输入预测因子时,在区分恶性和正常卵巢方面实现了100%的灵敏度和特异性。另外对10个卵巢进行成像并用于验证预测模型,实现了100%的灵敏度和83.3%的特异性。这些结果表明,基于从PS-OCT图像估计的定量参数的三参数预测模型可能是检测和诊断卵巢癌的有力工具。
