Liu Liqiang, Xing Changrui, Yan Huijuan, Kuang Hua, Xu Chuanlai
State Key Lab of Food Science and Technology, School of Food Science and Technology, Jiangnan University, Wuxi, JiangSu 214122, China.
Sensors (Basel). 2014 Aug 12;14(8):14672-85. doi: 10.3390/s140814672.

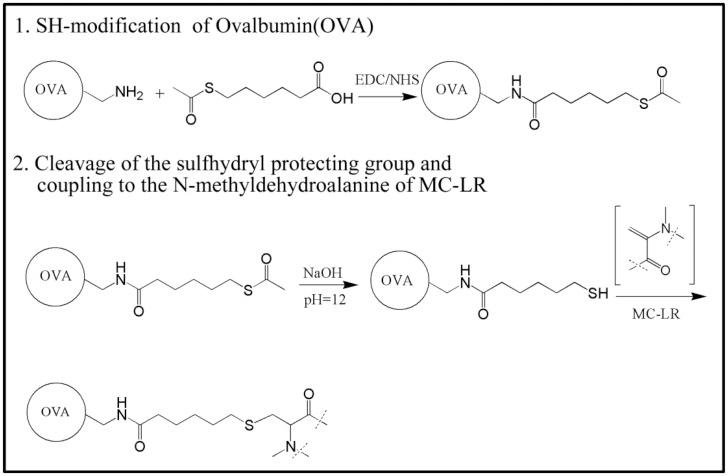

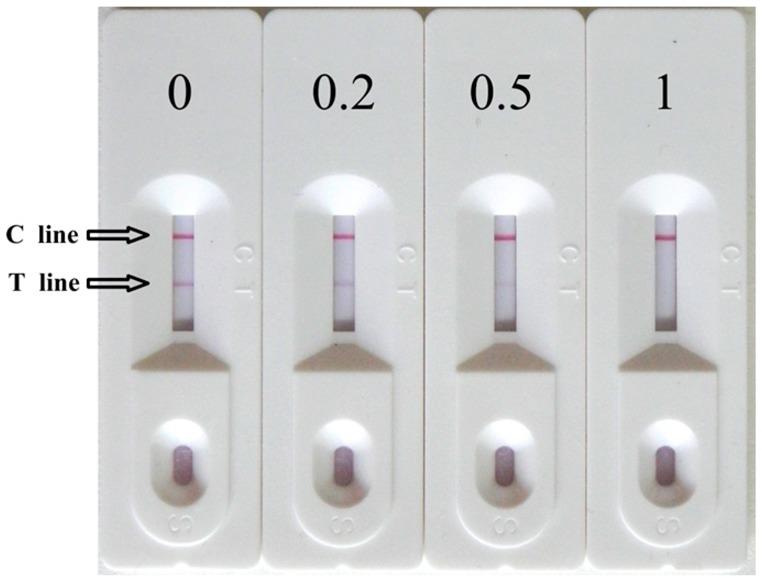

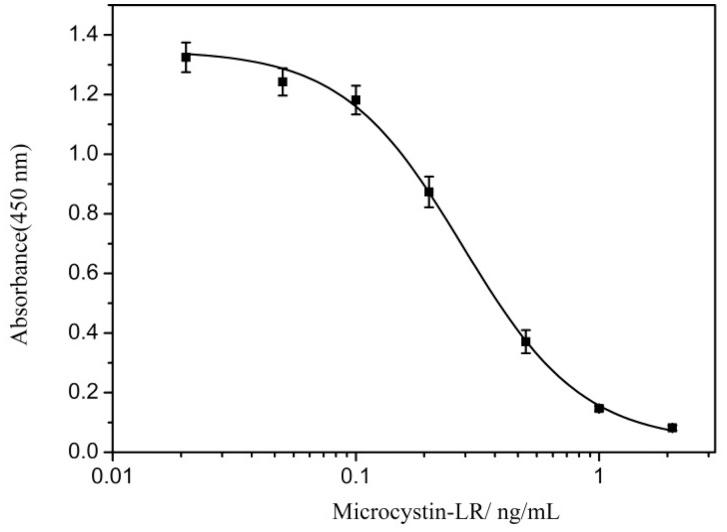

A monoclonal antibody for microcystin-leucine-arginine (MC-LR) was produced by cell fusion. The immunogen was synthesized in two steps. First, ovalbumin/ bovine serum albumin was conjugated with 6-acetylthiohexanoic acid using a carbodiimide EDC (1-ethyl-3-[3-dimethylaminopropyl]carbodiimide hydrochloride)/ NHS (N-hydroxysulfosuccinimide) reaction. After dialysis, the protein was reacted with MC-LR based on a free radical reaction under basic solution conditions. The protein conjugate was used for immunization based on low volume. The antibodies were identified by indirect competitive (ic)ELISA and were subjected to tap water and lake water analysis. The concentration causing 50% inhibition of binding of MC-LR (IC50) by the competitive indirect ELISA was 0.27 ng/mL. Cross-reactivity to the MC-RR, MC-YR and MC-WR was good. The tap water and lake water matrices had no effect on the detection limit. The analytical recovery of MC-LR in the water samples in the icELISA was 94%-110%. Based on this antibody, an immunochromatographic biosensor was developed with a cut-off value of 1 ng/mL, which could satisfy the requirement of the World Health Organization for MC-LR detection in drinking water. This biosensor could be therefore be used as a fast screening tool in the field detection of MC-LR.
通过细胞融合制备了一种针对微囊藻毒素 - 亮氨酸 - 精氨酸(MC - LR)的单克隆抗体。免疫原的合成分两步进行。首先,使用碳二亚胺EDC(1 - 乙基 - 3 - [3 - 二甲基氨基丙基]碳二亚胺盐酸盐)/ NHS(N - 羟基磺基琥珀酰亚胺)反应将卵清蛋白/牛血清白蛋白与6 - 乙酰硫代己酸偶联。透析后,蛋白质在碱性溶液条件下基于自由基反应与MC - LR反应。基于小体积的蛋白质偶联物用于免疫。通过间接竞争(ic)ELISA鉴定抗体,并对自来水和湖水进行分析。竞争间接ELISA导致MC - LR结合抑制50%的浓度(IC50)为0.27 ng/mL。对MC - RR、MC - YR和MC - WR的交叉反应性良好。自来水和湖水基质对检测限没有影响。icELISA中水样中MC - LR的分析回收率为94% - 110%。基于该抗体,开发了一种免疫层析生物传感器,其截断值为1 ng/mL,能够满足世界卫生组织对饮用水中MC - LR检测的要求。因此,这种生物传感器可作为现场检测MC - LR的快速筛选工具。
