Takahashi Yoshio, Kondo Kazuhiro, Miyaji Asami, Watanabe Yusuke, Fan Qiaohui, Honma Tetsuo, Tanaka Kazuya
Department of Earth and Planetary Science, The University of Tokyo, Hongo 7-3-1, Bukyo-ku, Tokyo, 113-8654, Japan; Department of Earth and Planetary Systems Science, Hiroshima University, Higashi-Hiroshima, Hiroshima, 739-8526, Japan.
Aisin Cosmos R&D Co., LTD., Kisarazu, Chiba, 292-0818, Japan.
PLoS One. 2014 Dec 9;9(12):e114858. doi: 10.1371/journal.pone.0114858. eCollection 2014.

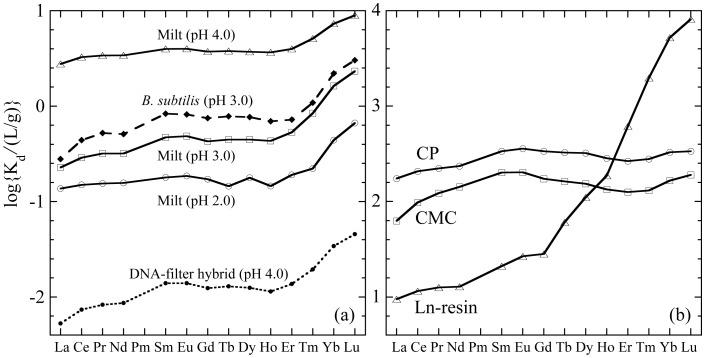

Recycling rare earth elements (REEs) used in advanced materials such as Nd magnets is important for the efficient use of REE resources when the supply of several REEs is limited. In this work, the feasibility of using salmon milt for REE recovery and separation was examined, along with the identification of the binding site of REEs in salmon milt. Results showed that (i) salmon milt has a sufficiently high affinity to adsorb REEs and (ii) the adsorption capacity of the milt is 1.04 mEq/g, which is comparable with that of commercial cation exchange resin. Heavier REEs have higher affinity for milt. A comparison of stability constants and adsorption patterns of REEs discussed in the literature suggests that the phosphate is responsible for the adsorption of REE in milt. The results were supported by dysprosium (Dy) and lutetium (Lu) LIII-edge extended x-ray absorption fine structure (EXAFS) spectroscopy. The REE-P shell was identified for the second neighboring atom, which shows the importance of the phosphate site as REE binding sites. The comparison of REE adsorption pattern and EXAFS results between the milt system and other adsorbent systems (cellulose phosphate, Ln-resin, bacteria, and DNA-filter hybrid) revealed that the coordination number of phosphate is correlated with the slope of the REE pattern. The separation column loaded with milt was tested to separate REE for the practical use of salmon milt for the recovery and separation of REE. However, water did not flow through the column possibly because of the hydrophobicity of the milt. Thus, sequential adsorption-desorption approach using a batch-type method was applied for the separation of REE. As an example of the practical applications of REE separation, Nd and Fe(III) were successfully separated from a synthetic solution of Nd magnet waste by a batch-type method using salmon milt.
回收用于钕磁铁等先进材料中的稀土元素(REEs)对于在几种稀土元素供应有限的情况下有效利用稀土资源非常重要。在这项工作中,研究了使用鲑鱼精巢回收和分离稀土元素的可行性,并确定了稀土元素在鲑鱼精巢中的结合位点。结果表明:(i)鲑鱼精巢对吸附稀土元素具有足够高的亲和力;(ii)精巢的吸附容量为1.04 mEq/g,与商业阳离子交换树脂相当。较重的稀土元素对精巢具有更高的亲和力。文献中讨论的稀土元素稳定性常数和吸附模式的比较表明,磷酸盐是精巢中稀土元素吸附的原因。镝(Dy)和镥(Lu)的LIII边扩展X射线吸收精细结构(EXAFS)光谱支持了这一结果。确定了稀土元素与磷的壳层为第二近邻原子,这表明磷酸盐位点作为稀土元素结合位点的重要性。精巢系统与其他吸附剂系统(磷酸纤维素、镧系树脂、细菌和DNA过滤器混合物)之间稀土元素吸附模式和EXAFS结果的比较表明,磷酸盐的配位数与稀土元素模式的斜率相关。测试了装有精巢的分离柱用于分离稀土元素,以便将鲑鱼精巢实际用于稀土元素的回收和分离。然而,水可能由于精巢的疏水性而无法流过该柱。因此,采用分批式方法的顺序吸附-解吸方法用于稀土元素的分离。作为稀土元素分离实际应用的一个例子,通过使用鲑鱼精巢的分批式方法成功地从钕磁铁废料的合成溶液中分离出钕和铁(III)。
