Gürel Emre, Tigen Kürşat, Karaahmet Tansu, Dündar Cihan, Güler Ahmet, Başaran Yelda
Department of Cardiology, Ordu State Hospital; Ordu-Turkey.
Anatol J Cardiol. 2015 Aug;15(8):620-5. doi: 10.5152/akd.2014.5607. Epub 2014 Jun 23.

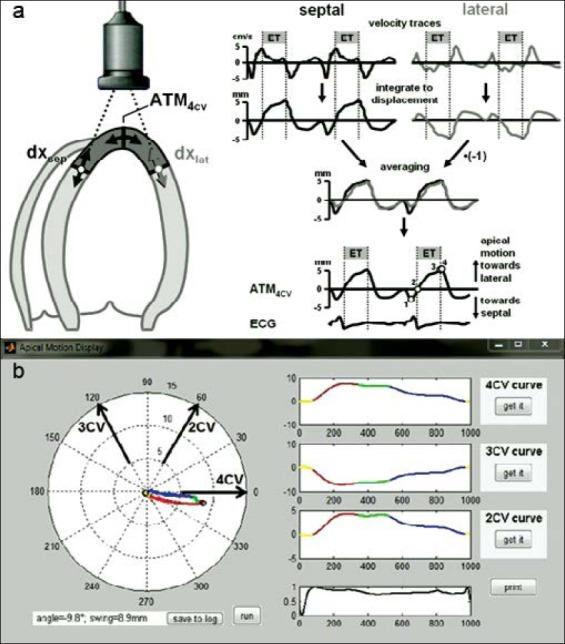

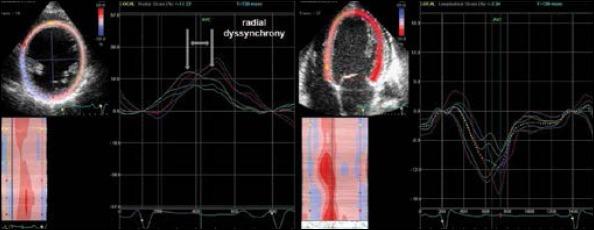

OBJECTIVE: Apical transverse motion (ATM) is a new parameter for assessing left ventricular (LV) dyssynchrony. Speckle-tracking radial strain analysis seems to be the best method to identify potential responders to cardiac resynchronization therapy. The aim of our study was to investigate the association between ATM and radial dyssynchrony assessed by speckle-tracking echocardiography in patients with non-ischemic dilated cardiomyopathy (NDC). METHODS: We examined 35 NDC patients (mean age 49.2 ± 28.1 years; 21 males). Cardiac dimension and ejection fraction (EF) were measured. Speckle-tracking analysis was performed on two-dimensional greyscale images in the mid-LV short axis view and apical views to calculate global radial, circumferential, and longitudinal strain (GRS, GCS, GLS), as well as rotational indexes (LV twist and torsion). Radial dyssynchrony was defined as a difference in time to peak systolic radial strain between the anteroseptal and posterior segments with a cut-off value of 130 ms. ATM was estimated using motion traces of 2 opposite apical segments. RESULTS: Radial dyssynchrony was significantly correlated with ATMloop (r = 0.78, p < 0.001), ATM4CV (r = 0.71, p = 0.001), ATM3CV (r = 0.67, p = 0.003), GRS (r = -0.51, p = 0.04), GCS (r = -0.55, p = 0.03), LV twist (r = -0.58, p = 0.02), and LV torsion (r = -0.56, p = 0.03). The receiver operating characteristics analysis for ATMloop to distinguish between patients with and without radial dyssynchrony revealed an area under the curve value of 0.88 (CI: 0.73-1.04, p = 0.005). The best cut-off value was 2.5 mm for ATMloop (85% sensitivity and 86% specificity). CONCLUSION: Apical transverse motion is closely associated with radial dyssynchrony assessed by speckle-tracking echocardiography. Quantitative measure of apical rocking has the potential for clinical applications.

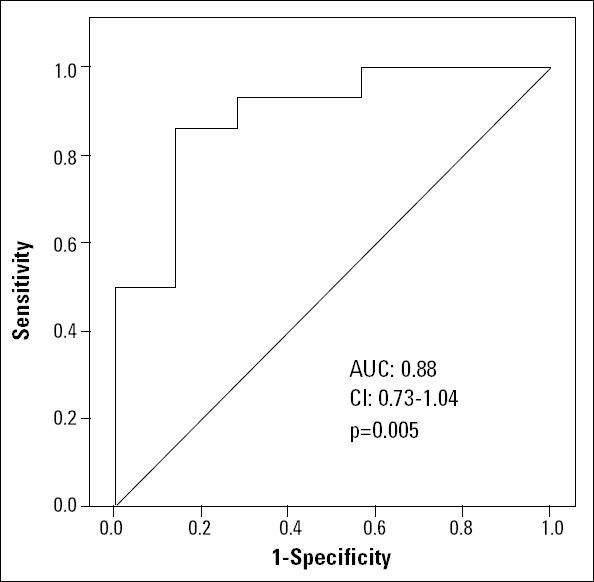

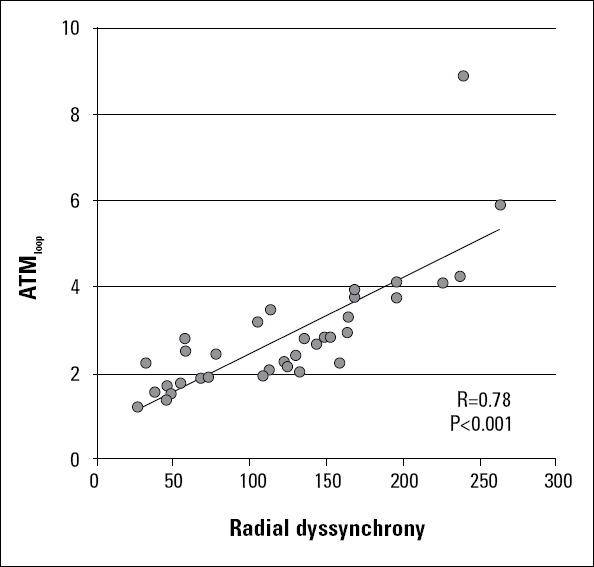

目的:心尖横向运动(ATM)是评估左心室(LV)不同步的一个新参数。斑点追踪径向应变分析似乎是识别心脏再同步治疗潜在反应者的最佳方法。我们研究的目的是探讨非缺血性扩张型心肌病(NDC)患者中ATM与斑点追踪超声心动图评估的径向不同步之间的关联。 方法:我们检查了35例NDC患者(平均年龄49.2±28.1岁;21例男性)。测量心脏尺寸和射血分数(EF)。在左心室短轴中部视图和心尖视图的二维灰度图像上进行斑点追踪分析,以计算整体径向、圆周和纵向应变(GRS、GCS、GLS)以及旋转指数(左心室扭转和扭矩)。径向不同步定义为前间隔和后段之间收缩期径向应变峰值时间的差异,截断值为130毫秒。使用两个相对的心尖节段的运动轨迹估计ATM。 结果:径向不同步与ATM环(r = 0.78,p < 0.001)、ATM4CV(r = 0.71,p = 0.001)、ATM3CV(r = 0.67,p = 0.003)、GRS(r = -0.51,p = 0.04)、GCS(r = -0.55,p = 0.03)、左心室扭转(r = -0.58,p = 0.02)和左心室扭矩(r = -0.56,p = 0.03)显著相关。用于区分有或无径向不同步患者的ATM环的受试者工作特征分析显示曲线下面积值为0.88(CI:0.73 - 1.04,p = 0.005)。ATM环的最佳截断值为2.5毫米(敏感性85%,特异性86%)。 结论:心尖横向运动与斑点追踪超声心动图评估的径向不同步密切相关。心尖摆动的定量测量具有临床应用潜力。
