Shoeb Mohd, Singh Braj Raj, Mobin Mohammad, Afreen Gul, Khan Wasi, Naqvi Alim H
Centre of Excellence in Materials Science (Nanomaterials), Department of Applied Physics, Z.H. College of Engg. & Tech., Aligarh Muslim University, Aligarh, Uttar Pradesh, India; Department of Applied Chemistry, Z.H. College of Engg. & Tech., Aligarh Muslim University, Aligarh, Uttar Pradesh, India.
Centre of Excellence in Materials Science (Nanomaterials), Department of Applied Physics, Z.H. College of Engg. & Tech., Aligarh Muslim University, Aligarh, Uttar Pradesh, India.
PLoS One. 2015 Aug 19;10(8):e0135055. doi: 10.1371/journal.pone.0135055. eCollection 2015.

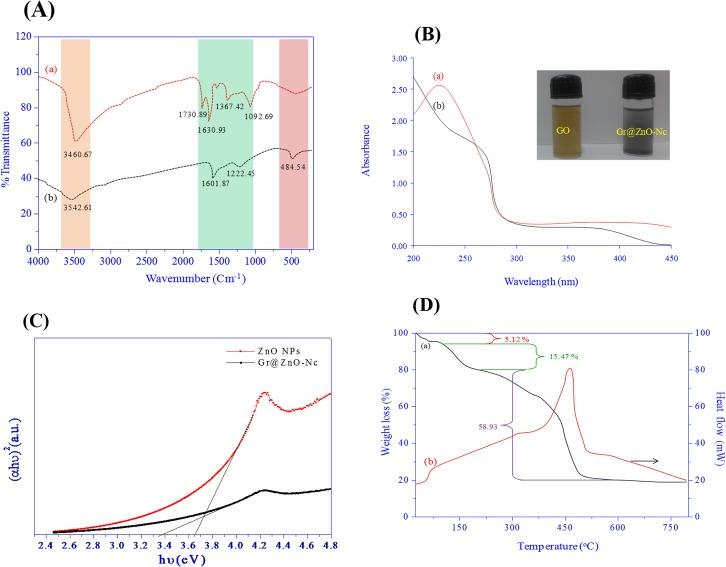

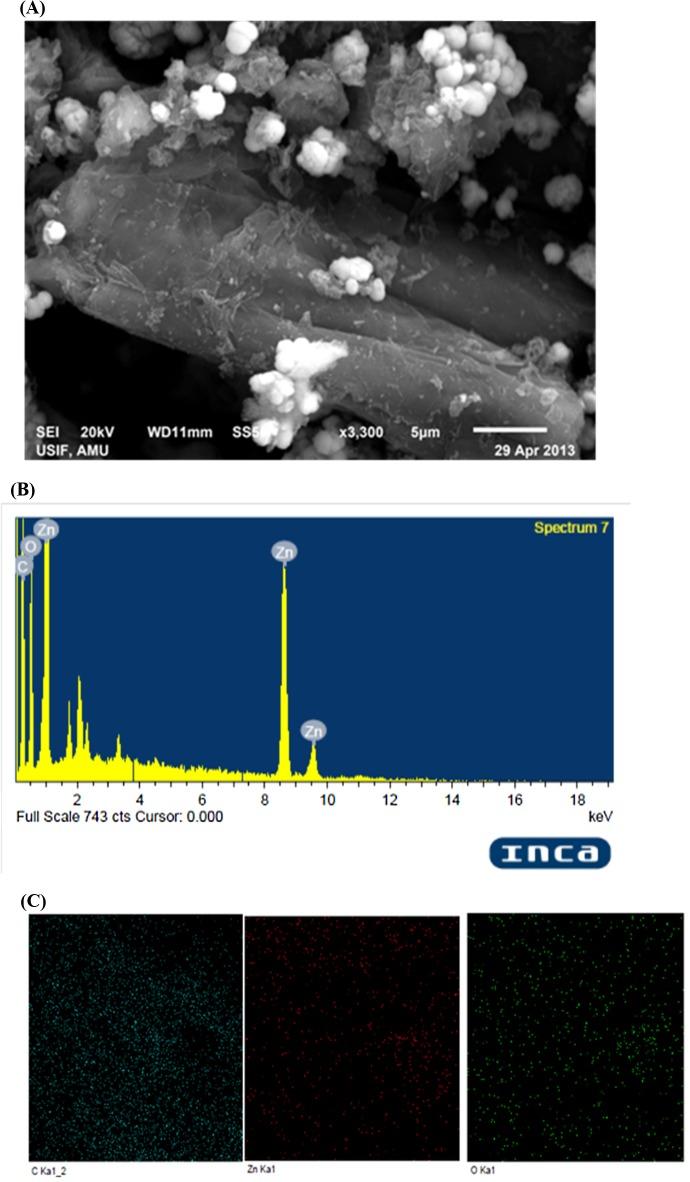

The study was taken up with the objective to synthesize graphene-zinc oxide nano particles (NPs) nanocomposite (Gr@ZnO-Nc) via In-situ synthesis method. The structural, optical, thermal, electrical and photocatalytic properties of the synthesized Gr@ZnO-Nc were studied. The characterization data confirmed that the ZnO NPs were successfully incorporated into the graphene sheets. Further, TGA/DTA results exhibited an enhanced thermal stability of the Gr@ZnO-Nc compared with the graphene. The Gr@ZnO-Nc, graphene sheets were uniformly wrapped by ZnO NPs, which can protect graphene and delay their oxidation in air. The synthesized Gr@ZnO-Nc was used for the efficient photodegradation of a carcinogenic methyl orange (MO) dye. The results exhibited promising photodegradation of the MO dye under UV light irradiation through the production of reactive oxygen species (ROS). The promising effect of Gr@ZnO-Nc on the photodegradation properties was conferred by the large surface area which increased adsorption capacity, and the strong electron transfer ability. Thus, it is encouraging to conclude that the synthesized Gr@ZnO-Nc has environmental significance with its utility in remediation in the hazardous MO dye.
本研究旨在通过原位合成法合成石墨烯-氧化锌纳米颗粒(NPs)纳米复合材料(Gr@ZnO-Nc)。对合成的Gr@ZnO-Nc的结构、光学、热学、电学和光催化性能进行了研究。表征数据证实ZnO NPs成功地掺入到石墨烯片中。此外,热重分析/差示热分析结果表明,与石墨烯相比,Gr@ZnO-Nc的热稳定性有所提高。在Gr@ZnO-Nc中,石墨烯片被ZnO NPs均匀包裹,这可以保护石墨烯并延缓其在空气中的氧化。合成的Gr@ZnO-Nc用于高效光降解致癌甲基橙(MO)染料。结果表明,在紫外光照射下,通过产生活性氧(ROS),MO染料有良好的光降解效果。Gr@ZnO-Nc对光降解性能的良好作用归因于其较大的表面积增加了吸附能力,以及较强的电子转移能力。因此,可以得出令人鼓舞的结论,即合成的Gr@ZnO-Nc在修复有害MO染料方面具有环境意义。
