Evaluation of condylar inclination of dentulous subjects determined by axiograph and to compare with manual programming of articulators using protrusive interocclusal record.

AIMS

To determine the average condylar inclination using ultrasonic axiograph; to determine the average condylar inclination using protrusive interocclusal bite records; to compare whether there is any marked difference in the values obtained by these techniques.

SETTINGS AND DESIGN

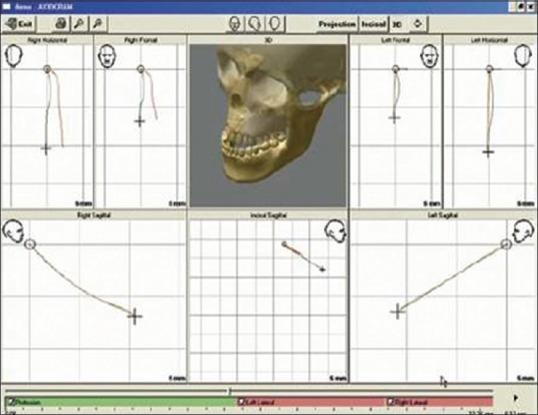

This clinical study compares the mean horizontal condylar inclination of the ultrasonic axiograph (Axioquick system) and the manual programming using protrusive interocclusal records.

MATERIALS AND METHODS

The study was conducted on a group of 30 subjects reporting to Department of Prosthodontics. Axioquick software system of SAM III (School Articulator Munich) fully-adjustable articulator was used, and interocclusal recording of condylar inclination is the manual method used in semi-adjustable articulators using Aluwax. The condylar inclination of the articulator was adjusted and set using protrusive interocclusal record.

STATISTICAL ANALYSIS

The horizontal condylar inclination values of both methods were collected, and the mean of right and left condylar inclination was compared using paired t-test.

RESULTS

A statistically significant difference exists between Axioquick system and the manual method of programming articulator with protrusive interocclusal records (P ≤ 0.001).

CONCLUSIONS

Within the limitations of the present study, the following conclusions were drawn: The average condylar inclination by axiograph is 42.125°. The average condylar inclination by interocclusal record is 33.25°. Comparison of both values shows a difference of 8.88° ± 4.03° that showed a significant difference (P < 0.001).
