具有生物相容性凝胶电极的超柔性有机放大器。
Ultraflexible organic amplifier with biocompatible gel electrodes.
作者信息
Sekitani Tsuyoshi, Yokota Tomoyuki, Kuribara Kazunori, Kaltenbrunner Martin, Fukushima Takanori, Inoue Yusuke, Sekino Masaki, Isoyama Takashi, Abe Yusuke, Onodera Hiroshi, Someya Takao
机构信息
Department of Electrical and Electronic Engineering, The University of Tokyo, 7-3-1 Hongo Bunkyo-ku, Tokyo 113-8656, Japan.
The Institute of Scientific and Industrial Research, Osaka University, 8-1, Mihogaoka, Ibaraki, Osaka 567-0047, Japan.
出版信息
Nat Commun. 2016 Apr 29;7:11425. doi: 10.1038/ncomms11425.

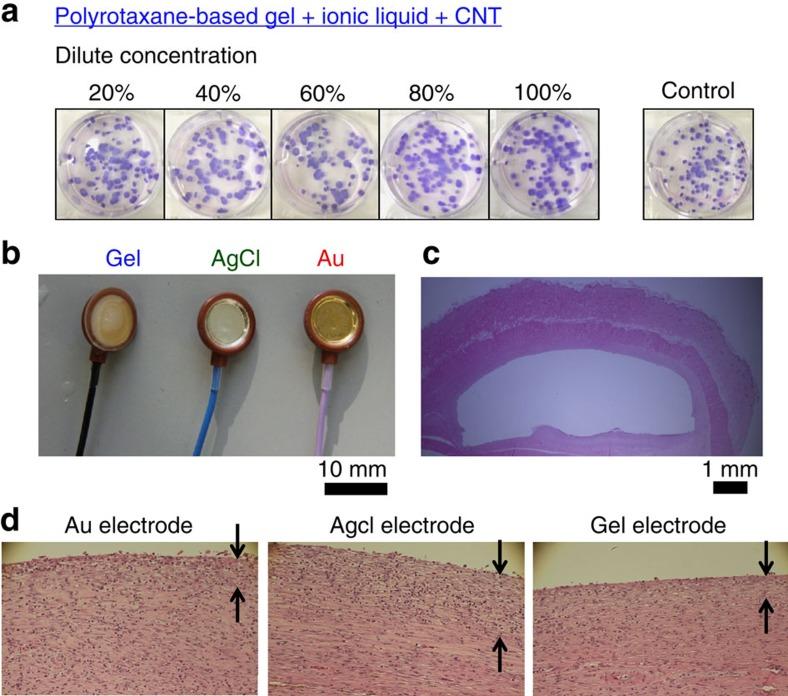

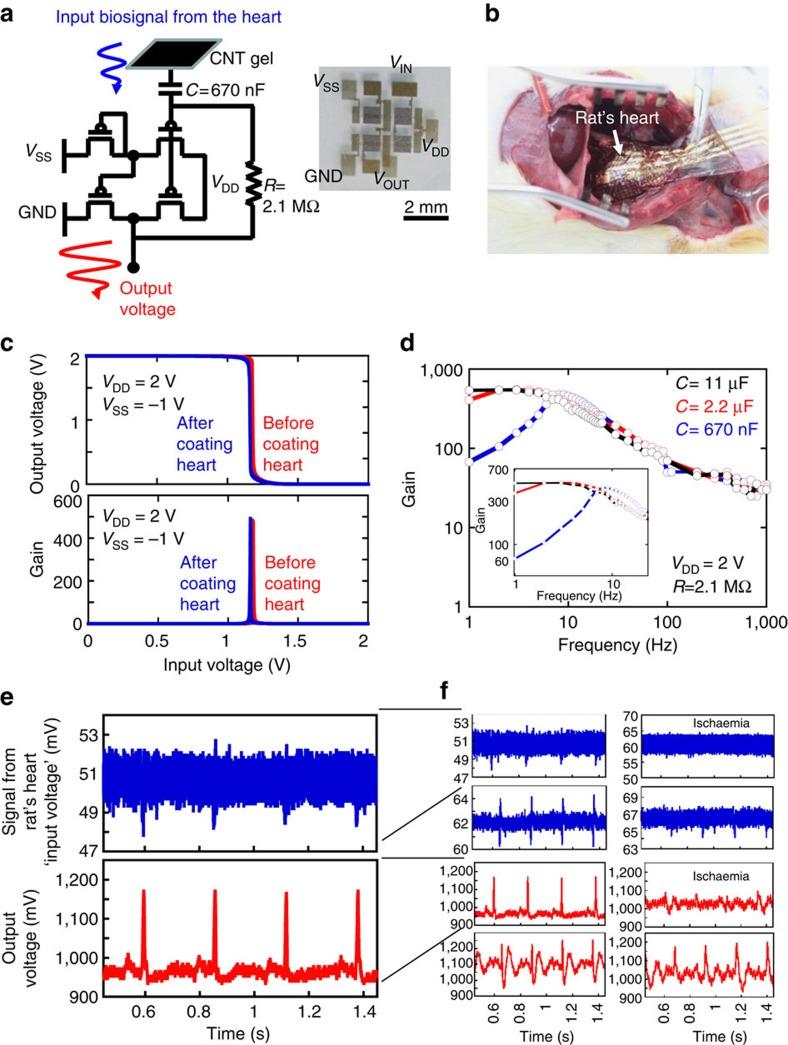

In vivo electronic monitoring systems are promising technology to obtain biosignals with high spatiotemporal resolution and sensitivity. Here we demonstrate the fabrication of a biocompatible highly conductive gel composite comprising multi-walled carbon nanotube-dispersed sheet with an aqueous hydrogel. This gel composite exhibits admittance of 100 mS cm(-2) and maintains high admittance even in a low-frequency range. On implantation into a living hypodermal tissue for 4 weeks, it showed a small foreign-body reaction compared with widely used metal electrodes. Capitalizing on the multi-functional gel composite, we fabricated an ultrathin and mechanically flexible organic active matrix amplifier on a 1.2-μm-thick polyethylene-naphthalate film to amplify (amplification factor: ∼200) weak biosignals. The composite was integrated to the amplifier to realize a direct lead epicardial electrocardiography that is easily spread over an uneven heart tissue.
体内电子监测系统是一种很有前景的技术,能够以高时空分辨率和灵敏度获取生物信号。在此,我们展示了一种生物相容性高导电性凝胶复合材料的制备,该材料由多壁碳纳米管分散片与水性水凝胶组成。这种凝胶复合材料的导纳为100 mS cm(-2),即使在低频范围内也能保持高导纳。将其植入活体皮下组织4周后,与广泛使用的金属电极相比,它显示出较小的异物反应。利用这种多功能凝胶复合材料,我们在1.2μm厚的聚萘二甲酸乙二酯薄膜上制作了一个超薄且机械柔性的有机有源矩阵放大器,用于放大(放大倍数:约200)微弱的生物信号。该复合材料与放大器集成,实现了直接导联心外膜心电图,能够轻松覆盖不均匀的心脏组织。
