反式冠醚四 - [μ2 - 双 -(三甲基硅基)氨基] - μ4 - 氧代 - 二钴(II)二钠,[Co2Na2{μ2 - N(SiMe3)2}4](μ4 - O)的晶体结构

Crystal structure of the inverse crown ether tetra-kis-[μ2-bis-(tri-methyl-sil-yl)amido]-μ4-oxido-dicobalt(II)disodium, [Co2Na2{μ2-N(SiMe3)2}4](μ4-O).

作者信息

Hansen Christopher B, Filatov Alexander S, Hillhouse Gregory L

机构信息

The University of Chicago, Department of Chemistry, 5735 S Ellis Ave., Chicago, IL 60637, USA.

出版信息

Acta Crystallogr E Crystallogr Commun. 2016 May 4;72(Pt 6):780-4. doi: 10.1107/S2056989016006861. eCollection 2016 Jun 1.

Abstract

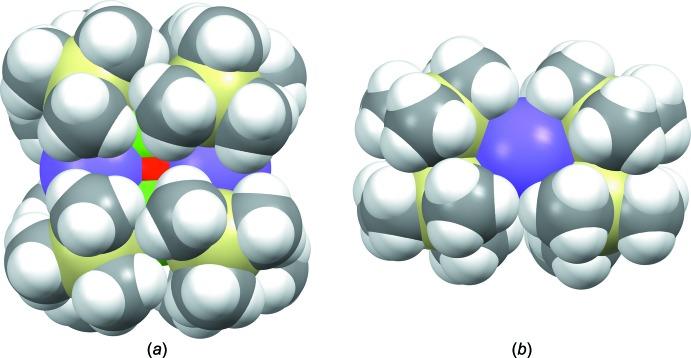

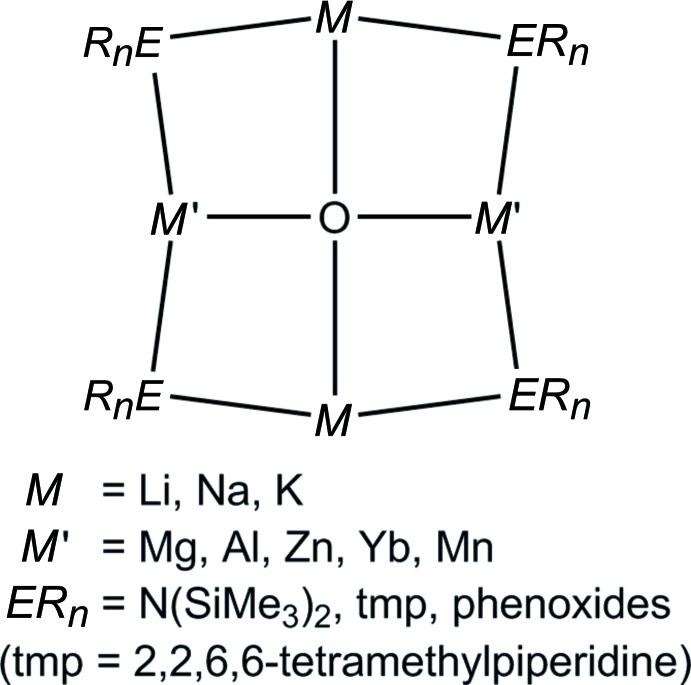

The title compound, Co2Na2{μ2-N(SiMe3)2}4, (I), represents a new entry in the class of inverse crown ethers. In the mol-ecule, each Co atom is formally in the oxidation state +II. The structure contains one half of a unique mol-ecule per asymmetric unit with the central μ4-oxido ligand residing on an inversion center, leading to a planar coordination to the Na and Co atoms. In the crystal, bulky tri-methyl-silyl substituents prevent additional inter-actions with cobalt. However, weak inter-molecular Na⋯H3C-Si inter-actions form an infinite chain along [010]. The structure is isotypic with its Mg, Mn and Zn analogues.

摘要

标题化合物Co₂Na₂{μ₂-N(SiMe₃)₂}₄(I)是反式冠醚类的一个新成员。在分子中,每个钴原子的形式氧化态为+II。该结构的不对称单元包含半个独特的分子,中心的μ₄-氧化配体位于一个对称中心上,从而与钠和钴原子形成平面配位。在晶体中,庞大的三甲基硅基取代基阻止了与钴的额外相互作用。然而,弱的分子间Na⋯H₃C-Si相互作用沿着[010]形成了一条无限长链。该结构与其镁、锰和锌的类似物是同型的。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/4110/4908559/a7f24b6a677a/e-72-00780-fig1.jpg
