Grigoriadis Grigoris, Newell Nicolas, Carpanen Diagarajen, Christou Alexandros, Bull Anthony M J, Masouros Spyros D
Department of Bioengineering, Imperial College London, London SW7 2AZ, UK.
Department of Bioengineering, Imperial College London, London SW7 2AZ, UK.
J Mech Behav Biomed Mater. 2017 Jan;65:398-407. doi: 10.1016/j.jmbbm.2016.09.003. Epub 2016 Sep 8.

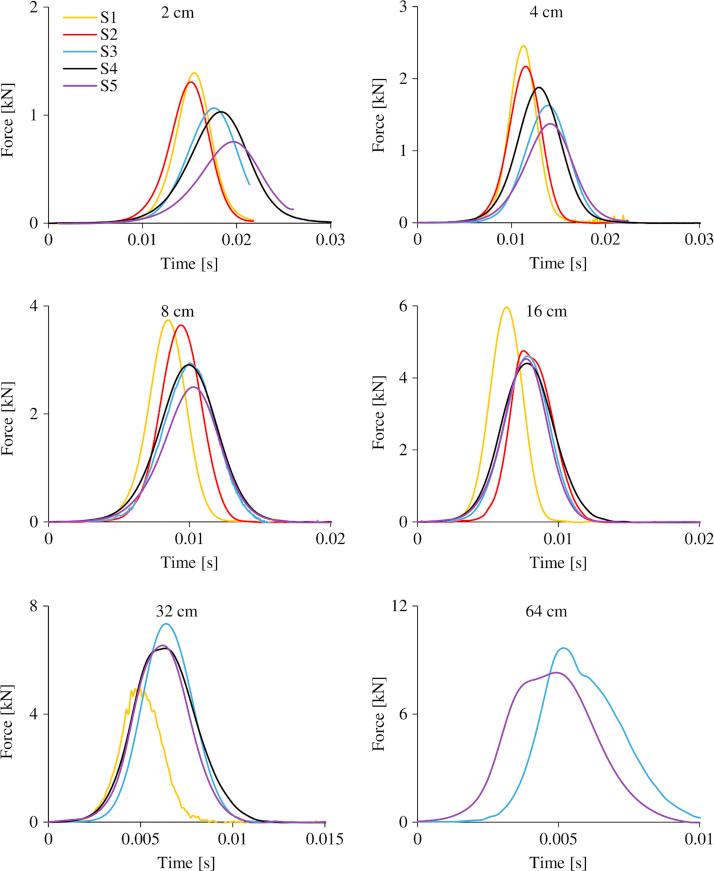

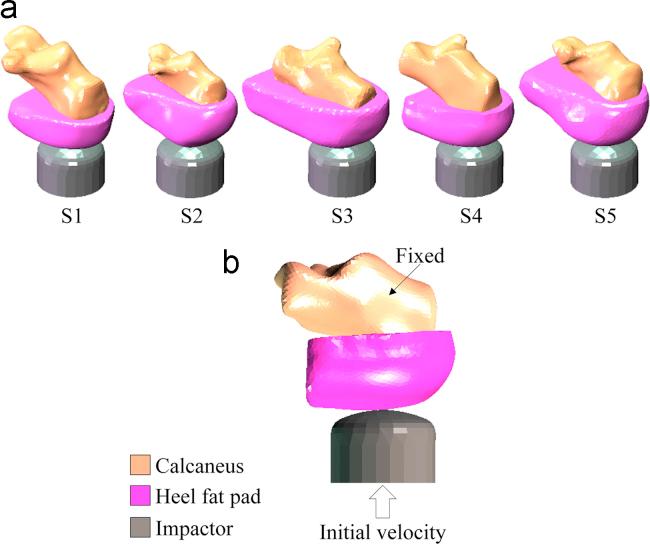

The complex structural and material behaviour of the human heel fat pad determines the transmission of plantar loading to the lower limb across a wide range of loading scenarios; from locomotion to injurious incidents. The aim of this study was to quantify the hyper-viscoelastic material properties of the human heel fat pad across strains and strain rates. An inverse finite element (FE) optimisation algorithm was developed and used, in conjunction with quasi-static and dynamic tests performed to five cadaveric heel specimens, to derive specimen-specific and mean hyper-viscoelastic material models able to predict accurately the response of the tissue at compressive loading of strain rates up to 150s. The mean behaviour was expressed by the quasi-linear viscoelastic (QLV) material formulation, combining the Yeoh material model (C=0.1MPa, C=7MPa, K=2GPa) and Prony׳s terms (A=0.06, A=0.77, A=0.02 for τ=1ms, τ=10ms, τ=10s). These new data help to understand better the functional anatomy and pathophysiology of the foot and ankle, develop biomimetic materials for tissue reconstruction, design of shoe, insole, and foot and ankle orthoses, and improve the predictive ability of computational models of the foot and ankle used to simulate daily activities or predict injuries at high rate injurious incidents such as road traffic accidents and underbody blast.
人类足跟脂肪垫复杂的结构和材料特性决定了在从运动到受伤事件等广泛的负荷情况下,足底负荷向下肢的传递。本研究的目的是量化人类足跟脂肪垫在不同应变和应变率下的超粘弹性材料特性。开发并使用了一种逆有限元(FE)优化算法,结合对五个尸体足跟标本进行的准静态和动态测试,以推导能够准确预测组织在高达150s应变率的压缩负荷下响应的特定标本和平均超粘弹性材料模型。平均行为由准线性粘弹性(QLV)材料公式表示,结合了Yeoh材料模型(C = 0.1MPa,C = 7MPa,K = 2GPa)和Prony项(对于τ = 1ms、τ = 10ms、τ = 10s,A = 0.06、A = 0.77、A = 0.02)。这些新数据有助于更好地理解足踝的功能解剖学和病理生理学,开发用于组织重建的仿生材料,设计鞋子、鞋垫以及足踝矫形器,并提高用于模拟日常活动或预测道路交通事故和车底爆炸等高率伤害事件中损伤的足踝计算模型的预测能力。
