Ruffing Anne M, Jensen Travis J, Strickland Lucas M
Department of Bioenergy and Defense Technologies, Sandia National Laboratories, P.O. Box 5800, MS 1413, Albuquerque, NM, 87185-1413, USA.
Microb Cell Fact. 2016 Nov 10;15(1):190. doi: 10.1186/s12934-016-0584-6.
Successful implementation of modified cyanobacteria as hosts for industrial applications requires the development of a cyanobacterial chassis. The cyanobacterium Synechococcus sp. PCC 7002 embodies key attributes for an industrial host, including a fast growth rate and high salt, light, and temperature tolerances. This study addresses key limitations in the advancement of Synechococcus sp. PCC 7002 as an industrial chassis.

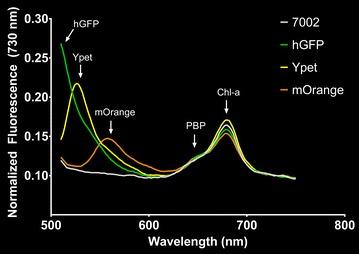

Tools for genome integration were developed and characterized, including several putative neutral sites for genome integration. The minimum homology arm length for genome integration in Synechococcus sp. PCC 7002 was determined to be approximately 250 bp. Three fluorescent protein reporters (hGFP, Ypet, and mOrange) were characterized for gene expression, microscopy, and flow cytometry applications in Synechococcus sp. PCC 7002. Of these three proteins, the yellow fluorescent protein (Ypet) had the best optical properties for minimal interference with the native photosynthetic pigments and for detection using standard microscopy and flow cytometry optics. Twenty-five native promoters were characterized as tools for recombinant gene expression in Synechococcus sp. PCC 7002 based on previous RNA-seq results. This characterization included comparisons of protein and mRNA levels as well as expression under both continuous and diurnal light conditions. Promoters A2520 and A2579 were found to have strong expression in Synechococcus sp. PCC 7002 while promoters A1930, A1961, A2531, and A2813 had moderate expression. Promoters A2520 and A2813 showed more than twofold increases in gene expression under light conditions compared to dark, suggesting these promoters may be useful tools for engineering diurnal regulation.
The genome integration, fluorescent protein, and promoter tools developed in this study will help to advance Synechococcus sp. PCC 7002 as a cyanobacterial chassis. The long minimum homology arm length for Synechococcus sp. PCC 7002 genome integration indicates native exonuclease activity or a low efficiency of homologous recombination. Low correlation between transcript and protein levels in Synechococcus sp. PCC 7002 suggests that transcriptomic data are poor selection criteria for promoter tool development. Lastly, the conventional strategy of using promoters from photosynthetic operons as strong promoter tools is debunked, as promoters from hypothetical proteins (A2520 and A2579) were found to have much higher expression levels.
成功将改良蓝细菌用作工业应用宿主需要开发一种蓝细菌底盘。聚球藻属蓝细菌PCC 7002具备作为工业宿主的关键特性,包括生长速度快以及对高盐、光照和温度的耐受性强。本研究解决了聚球藻属蓝细菌PCC 7002作为工业底盘发展过程中的关键限制因素。
开发并表征了基因组整合工具,包括几个假定的基因组整合中性位点。确定聚球藻属蓝细菌PCC 7002中基因组整合的最小同源臂长度约为250 bp。对三种荧光蛋白报告基因(hGFP、Ypet和mOrange)进行了表征,用于聚球藻属蓝细菌PCC 7002中的基因表达、显微镜观察和流式细胞术应用。在这三种蛋白中,黄色荧光蛋白(Ypet)具有最佳光学特性,对天然光合色素的干扰最小,并且可使用标准显微镜和流式细胞术光学器件进行检测。基于先前的RNA测序结果,对25个天然启动子进行了表征,作为聚球藻属蓝细菌PCC 7002中重组基因表达的工具。该表征包括蛋白质和mRNA水平的比较以及在连续光照和昼夜光照条件下的表达情况。发现启动子A2520和A2579在聚球藻属蓝细菌PCC 7002中具有强表达,而启动子A1930、A1961、A2531和A2813具有中等表达。与黑暗条件相比,启动子A2520和A2813在光照条件下基因表达增加了两倍以上,表明这些启动子可能是用于工程化昼夜调控的有用工具。
本研究中开发的基因组整合、荧光蛋白和启动子工具将有助于推动聚球藻属蓝细菌PCC 7002作为蓝细菌底盘的发展。聚球藻属蓝细菌PCC 7002基因组整合的最小同源臂长度较长,表明存在天然核酸外切酶活性或同源重组效率较低。聚球藻属蓝细菌PCC 7002中转录本水平与蛋白质水平之间的低相关性表明,转录组数据不是启动子工具开发的良好选择标准。最后,使用来自光合操纵子的启动子作为强启动子工具的传统策略被推翻,因为发现来自假定蛋白的启动子(A2520和A2579)具有高得多的表达水平。
